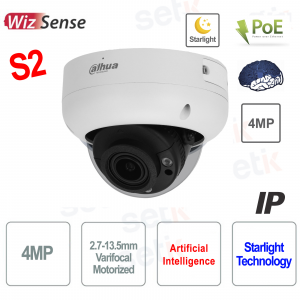

IPC-HDBW3441R-ZS-S2 - è una telecamera dome IP antivandalo con sensore CMOS da 4MP, ottica varifocale motorizzata da 2.7–13.5mm e visione notturna IR fino a 40m. Grazie alla tecnologia AI WizSense, supporta rilevamento intelligente di veicoli e persone, compressione H.265+, analisi perimetrale, protezione IP67/IK10 e registrazione su microSD fino a 256GB. Perfetta per ambienti esterni e installazioni di sicurezza evolute, assicura immagini nitide anche in condizioni di scarsa luminosità grazie all’algoritmo AI SSA e al WDR da 120dB. Dahua
SCEGLI PROFESSIONISTA
IPC-HDBW3441R-ZS-S2 | TELECAMERA IP DA ESTERNO OTTICA VARIFOCALE 2.7-13.5mm -SMART MOTION DETECTION - INTELLIGENZA ARTIFICIALE
La Dahua IPC-HDBW3441R-ZS-S2 è una telecamera dome IP da 4MP con ottica motorizzata e tecnologia AI WizSense, ideale per installazioni esterne grazie alla protezione IP67/IK10. Offre immagini nitide, rilevamento intelligente e visione notturna fino a 40 m, riducendo al minimo i falsi allarmi e l’uso di banda
Specifiche principali:
- 4MP (2688×1520) a 30 fps con sensore CMOS 1/3"
- Ottica motorizzata 2.7–13.5 mm, angolo 104°–29°
- IR fino a 40 m, AI SSA e Smart H.265+
- IP67, IK10, operativa da –30°C a +60°C
- AI WizSense per rilevamento veicoli/persone
Ulteriori dettagli
Scheda tecnica
| Model | IPC-HDBW3441R-ZS-S2 |
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Effective Pixel | 2688 (H) × 1520 (V) |
| ROM/RAM | 128MB/512MB |
| Scanning System | Progressive |
| Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| IR Distance | 40 m (131.23 ft) |
| S/NM Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 3 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°–29° Vertical: 54° –16° Diagonal: 125° –33° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Intelligent | |
| Perimeter Protection | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| Ai Coding | AI H.265 AI H.264 |
| Video Frame Rate |
Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability |
3 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-Adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest(RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 Areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Edge Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | iOS; Android |
| Certifications | |
| Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption |
Basic: 2.8 W (12 VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2 W (PoE) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to 140 °F) |
| Ingress Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 94 mm × Φ122 mm (3.7" × Φ4.8") |
| Net Weight | 713 g (1.57 lb) |
| Gross Weight | 986 g (2.17 lb) |
