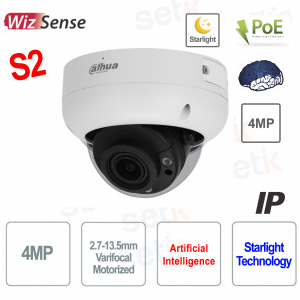

Dahua 4MP Varifocal IR 40m IP Camera | AI WizSense & IP67 IK10

Dahua 4MP Varifocal IR 40m IP Camera | AI WizSense & IP67 IK10
BEST SELLER -58%

IPC-HDBW3441R-ZS-S2 - is a vandal-proof IP dome camera with 4MP CMOS sensor, 2.7–13.5mm motorized varifocal lens and IR night vision up to 40m . Thanks to the AI WizSense technology, it supports intelligent vehicle and person detection, H.265+ compression, perimeter analysis, IP67/IK10 protection and microSD recording up to 256GB. Perfect for outdoor environments and advanced security installations, it ensures clear images even in low light conditions thanks to the AI SSA algorithm and 120dB WDR. Dahua

Technical Data Sheet

Reference: IPC-HDBW3441R-ZS-S2

Brand: Dahua

EAN: 6923172542274

Disponibilità: 16

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-HDBW3441R-ZS-S2 | OUTDOOR IP CAMERA 2.7-13.5mm VARIFOCAL LENS -SMART MOTION DETECTION - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua IPC-HDBW3441R-ZS-S2 is a 4MP IP dome camera with motorized lens and WizSense AI technology, ideal for outdoor installations thanks to IP67/IK10 protection. It offers clear images, intelligent detection and night vision up to 40 m, minimizing false alarms and bandwidth usage.

Main specifications:

- 4MP (2688×1520) at 30 fps with 1/3" CMOS sensor

- Motorized optics 2.7–13.5 mm, angle 104°–29°

- IR up to 40m, AI SSA and Smart H.265+

- IP67, IK10, operational from –30°C to +60°C

- AI WizSense for vehicle/people detection

Further details

Resolution:
1/3" CMOS sensor with maximum output of 4MP (2688×1520) at 30fps , also supports intermediate resolutions from 720p to 3.6MP, ensuring sharp images in any scenario.
Optics :
2.7–13.5mm motorized varifocal lens, with F1.5 aperture and adjustable field of view between 104° and 29°, great for adapting to wide or focused scenes.
AI SSA (Scene Self-Adaptation) :
AI technology that detects environmental conditions (rain, fog, low light) and automatically adjusts video parameters to keep the image clear and stable in any situation.
Perimeter Protection:
Deep learning video analytics to distinguish people and vehicles, dramatically reducing false alarms on events such as intrusions or virtual line crossings (tripwires).
Intelligent Detection :
Advanced intelligent functions including Smart Motion Detection (SMD 4.0) , Quick Pick, Privacy Masking, Audio Detection, Defocus, Scene, Tampering and more.
Protection (IP67 and IK10):
Certified IP67 for waterproofing and IK10 for shockproofing, with guaranteed operation from –30°C to +60°C and voltage tolerance up to ±30%, perfect for critical outdoor environments.
IPC-HDBW3241R-ZS-S2-DIMENSIONS

Technical data sheet

Model IPC-HDBW3441R-ZS-S2
Room
Image Sensor 1/2.9" CMOS
Effective Pixel 2688 (H) × 1520 (V)
ROM/RAM 128MB/512MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)

IR Distance 40 m (131.23 ft)
S/NM Ratio >56dB
Illumination Distance 40 m (131.23 ft)
IR On/Off Control Auto/Manual
IR LEDs 3 (IR LEDs)
Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Mount Type φ14
Focal Length 2.7mm–13.5mm
Max. Openings F1.5
Field of View Horizontal: 104°–29° Vertical: 54° –16° Diagonal: 125° –33°
Iris Type Fixed
Close Focus Distance 0.8 m (2.6 ft)
Intelligent
Perimeter Protection Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
TO THE SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
SmartSearch Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
Ai Coding AI H.265
AI H.264
Video Frame Rate

Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640×480)
Bitrate Control

CBR/VBR

Video Bitrate H.264: 3kbps–8192kbps
H.265: 3kbps–8192kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Self-Adaptation Scenes Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes, built-in Mic
Audio compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
Network
Ethernet RJ-45 (10/100Base-T)
SDK and API Yes
Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestones; Genetec
User/Host 20 (Total bandwidth: 64M)
Edge Storage

FTP; SFTP; Micro SD card (support max. 256G); NAS

Browser IE: IE11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone iOS; Android
Certifications
Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power
Power Supply 12VDC/PoE (802.3af)
Power Consumption

Basic: 2.8W (12VDC); 3.6 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9 W (12 VDC); 9.2W (PoE)

Environment
Operating Conditions –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage conditions –40 °C to +60 °C (–40 °F to 140 °F)
Ingress Protection IP67; IK10
Structure
Casing Metal
Dimensions 94mm × Φ122mm (3.7" × Φ4.8")
Net Weight 713g (1.57lb)
Gross Weight 986g (2.17lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
