HYU-937 - Hyundai - Telecamera IP POE ONVIF visibile + termica - Ottica termica: 6.9mm - Risoluzione 256x192 - Ottica Visibile: 6,4mm - Risoluzione 2688x1520 4MP progressiva - Iluminazione IR fino a 30m - Funzioni intelligenti: 4 regole VCA / 3 righelli - Rilevamento persone e veicoli - WDR120dB - Slot MicroSD 256GB - RJ45 - RS485 - Ingressi e uscite Audio e allarme - In metallo - Protezione IP67, ideale per uso in esterni. Una delle migliori telecamere bullet
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

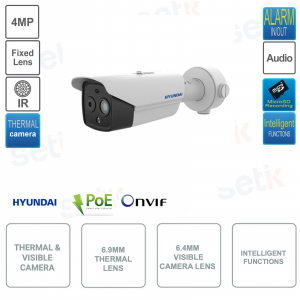

TELECAMERA BULLET TERMICA + VISIBILE - IR 30M - IP POE ONVIF® - AUDIO - ALLARME - FUNZIONI INTELLIGENTI - HYUNDAI - HYU-937

IR 30m - Ottica termica: 6.9mm con risoluzione 256x192 - Ottica Visibile: 6,4mm, con risoluzione 4MP a scannsione progressiva - IR 30m - Funzioni intelligenti: 4 regole VCA / 3 righelli - Rilevamento persone e veicoli - WDR 120dB - Slot MicroSD 256GB (non inclusa) - RJ45 100M - RS485 - Audio 1in/1out - Allarme 2in/2out - Carcassa in metallo - Protezione IP67, ideale per uso in esterni - Garanzia estesa 3 Anni Hyundai! Una delle migliori telecamere bullet

Dettagli prodotto
|
 CATALOGO HYUNDAI: Cerchi un prodotto HYUNDAI ma non sei riuscito a trovarlo sul nostro sito? Non ti preoccupare, possiamo fornirti TUTTI i prodotti Hyundai: consulta il CATALOGO oppure contattaci via mail.  |
| RILEVAMENTO TERMICO |
|---|
|


  |
![]()  |
 Questa telecamera è provvista di ottica fissa termica da 6.9mm Rilevamento persone: rilevamento (287 m), riconoscimento (72 m), identificazione (36 m) Rilevamento veicoli: ilevamento (881 m), riconoscimento (220 m), identificazione (110 m) Ottica fissa visibile: 6.4mm  |
|
![]()  |
 Questa telecamera presenta una risoluzione di 2688x1520p 4MP, a scansione progressiva! Sensore CMOS di alto rendimento 1/2.7" da 4MP  |
|
![]()  |
 Questa telecamera è una TELECAMERA TERMICA.


  |
|
![]()  |
 Questa telecamera prevede funzioni intelligenti avanzate:

  |
|
![]()  |
Iluminazione IR con portata massima fino a 30m | |
![]()  |
ULTRA WDR reale fino a 120dB WDR (Wide Dynamic Range): E' la soluzione professionale nei casi in cui si deve operare in condizioni di alto contrasto luce/ombra. Fondamentale in caso di riprese dall'interno verso l'esterno, targhe, punti in ombra o tutte le situazioni dove non è presente omogeneità di luce. ![]()  |
|
| Questa telecamera presenta 1 ingresso + 1 Uscita Audio | ||
![]()  |
Questa telecamera è dotata di 2 ingressi e 2 uscite allarme. | |
  |
||
![]()  |
Carcassa in metallo | |
![]()  |
protezione di livello IP67, ideale per utilizzo in esterni! | |
![]()  |
Questo prodotto è coperto da Garanzia 3 Anni! |
Scheda tecnica
| HYU-937 | |
|
 Thermal camera  |

  |
|
 Vanadium Oxide Uncooled Focal Plane Array (FPA) Thermal Imaging Sensor  |

  |
|
 Thermal Sensitivity (NETD): ≤40mk (@25°C, f/1.0)  |

  |
|
 Spectrum Range: 8μm ~ 14μm  |

  |
|
 Focal length (thermal): 6.9mm  |

  |
|
 Angle of view (thermal): 24.9° x 18.7°  |

  |
|
 Closest focus distance of 1.3 meters  |

  |
|
 Effective distance on people: Detection (287 m), recognition (72 m), identification (36 m)  |

  |
|
 Effective distance in vehicles: Detection (881 m), recognition (220 m), identification (110 m)  |

  |
|
 viewable camera  |

  |
|
 Image sensor (visible camera) CMOS 1/2.7 Progressive Scan 4 megapixels  |

  |
|
 Effective pixels: 2688 x 1520  |

  |
|
 30 meter infrared illumination  |

  |
|
 0.0176 lux F2.25 (colour), 0.0035 lux F2.25 (B/W)  |

  |
|
 Focal length (visible optics): 6.4mm  |

  |
|
 Angle of view (visible optics): 53° x 28°  |

  |
|
 WDR 120dB  |

  |
|
 Displays the partial image of the thermal channel on the full screen of the optical channel  |

  |
|
 Shows the details of the optical channel in the thermal channel  |

  |
|
 Supports target coloring in hot white and hot black mode  |

  |
|
 smart features  |

  |
|
 Supports 4 types of VCA rules (intrusion, line crossing, region entry and region exit), maximum 8 rules  |

  |
|
 Support 3 types of temperature measurement rulers, 21 rulers (10 points, 10 regions, and 1 line)  |

  |
|
 Temperature range -20°C ~ +150°C  |

  |
|
 ±8°C temperature accuracy  |

  |
|
 IP communication and integration  |

  |
|
 Compression formats: H.265/H.264/MJPEG  |

  |
|
 Stream 1 thermal camera: 1280x720, 704x576, 640x512, 320x240 (25 ips)  |

  |
|
 Stream 2 thermal camera: 704x576, 640x512, 320x240 (25 fps)  |

  |
|
 Stream 1 viewable camera: 2680x1520, 1920x1080, 1280x720 (25 ips)  |

  |
|
 Stream 2 viewable camera: 704x576, 352x288 (25 ips)  |

  |
|
 Audio compression: G.722.1/G.711u/G.711a/MP2L2/G.726/PCM  |

  |
|
 1 RJ45 10/100M auto-adaptive port  |

  |
|
 Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,  |

  |
|
 RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP , SRTP  |

  |
|
 Up to 20 simultaneous views  |

  |
|
 Up to 32 users, 3 levels: administrator, operator, user  |

  |
|
 Compatibility: ONVIF® S/G, ISAPI, SDK and third-party management gateway  |

  |
|
 Compatible with IE11, Chrome57.0+, Firefox52.0+ browsers  |

  |
|
 RS485 half duplex port  |

  |
|
 2 alarm inputs / 2 outputs  |

  |
|
 1 input / 1 audio output  |

  |
|
 MicroSD/SDHC/SDXC card slot (up to 256 GB), with support for manual or alarm recording  |

  |
|
 electrical and environmental  |

  |
|
 Power: 12V DC (±25%), PoE (802.3af, Class3)  |

  |
|
 Consumption: Max. 6W (6.5W PoE)  |

  |
|
 Operating temperature -40°C ~+65°C  |

  |
|
 Relative humidity: ≤95% (non-condensing)  |

  |
|
 Degree of protection IP67  |

  |
|
 6KV lightning-proof  |

  |
|
 physical characteristics  |

  |
|
 metal casing  |

  |
|
 Dimensions: 106.1 (W) x 107 (H) x 321.3 mm  |

  |
|
 Weight: 1.55kg  |

  |
|
 Includes wall bracket and tube base  |

  |
|
 Note: Effective distance values shown are nominal values and should be used as an estimate. Consult with your commercial to know the recommended detection distances with our Vaelsys perimeter system.
  |

  |
