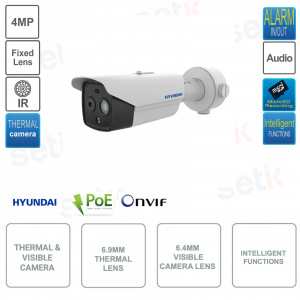

HYU-937 - Hyundai - Telecamera IP POE ONVIF visibile + termica - Ottica termica: 6.9mm - Risoluzione 256x192 - Ottica Visibile: 6,4mm - Risoluzione 2688x1520 4MP progressiva - Iluminazione IR fino a 30m - Funzioni intelligenti: 4 regole VCA / 3 righelli - Rilevamento persone e veicoli - WDR120dB - Slot MicroSD 256GB - RJ45 - RS485 - Ingressi e uscite Audio e allarme - In metallo - Protezione IP67, ideale per uso in esterni.
THERMAL + VISIBLE BULLET CAMERA - IR 30M - IP POE ONVIF® - AUDIO - ALARM - INTELLIGENT FUNCTIONS - HYUNDAI - HYU-937
IR 30m - Thermal optics: 6.9mm with 256x192 resolution - Visible optics: 6.4mm, with 4MP progressive scan resolution - IR 30m - Intelligent functions: 4 VCA rules / 3 rulers - Person and vehicle detection - WDR 120dB - MicroSD 256GB slot (not included) - RJ45 100M - RS485 - Audio 1in/1out - Alarm 2in/2out - Metal casing - IP67 protection, ideal for outdoor use - Hyundai 3 Year Extended Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
| THERMAL DETECTION |
|---|
|
|
 |
This camera is equipped with a fixed 6.9mm thermal lens People detection : detection (287m), recognition (72m), identification (36m) Vehicle detection : detection (881 m), recognition (220 m), identification (110 m) Visible fixed lens: 6.4mm |
|
 |
This camera features a resolution of 2688x1520p 4MP, progressive scan! 4MP 1/2.7" high performance CMOS sensor |
|
 |
This camera is a THERMAL CAMERA .
|
|
 |
This camera has advanced intelligent features:
|
|
 |
IR illumination with a maximum range of up to 30m | |
 |
True ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
|
 |
This camera features 1 Input + 1 Audio Output | |
 |
This camera has 2 alarm inputs and 2 alarm outputs. | |
 |
|
|
 |
Metal casing | |
 |
IP67 level protection, ideal for outdoor use! | |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-937 | |
|
Thermal chamber |
|
|
Vanadium Oxide Uncooled Focal Plane Array (FPA) Thermal Imaging Sensor |
|
|
Thermal Sensitivity (NETD): ≤40mk (@25°C, f/1.0) |
|
|
Spectrum Range: 8μm ~ 14μm |
|
|
Focal length (thermal): 6.9mm |
|
|
Angle of view (thermal): 24.9° x 18.7° |
|
|
Closest focus distance of 1.3 meters |
|
|
Effective distance on people: Detection (287m), recognition (72m), identification (36m) |
|
|
Effective distance in vehicles: Detection (881m), recognition (220m), identification (110m) |
|
|
viewable camera |
|
|
Image sensor (visible camera) CMOS 1/2.7 Progressive Scan 4 megapixels |
|
|
Effective pixels: 2688x1520 |
|
|
30 meter infrared illumination |
|
|
0.0176 lux F2.25 (colour), 0.0035 lux F2.25 (B/W) |
|
|
Focal length (visible optics): 6.4mm |
|
|
Angle of view (visible optics): 53° x 28° |
|
|
WDR 120dB |
|
|
Displays the partial image of the thermal channel on the full screen of the optical channel |
|
|
Shows the details of the optical channel in the thermal channel |
