SD22204DB-GNY-W - è una telecamera PTZ con sensore 1/2.8" CMOS da 2MP e risoluzione massima Full HD 1080p (1920 × 1080) a 25/30 fps. L’ottica varifocale da 2.8–12 mm con zoom ottico 4x assicura immagini chiare e dettagliate, supportata da tecnologia Starlight per visibilità a colori anche in condizioni di scarsa illuminazione fino a 0.005 Lux. Grazie alla funzione PFA Technology, mantiene la messa a fuoco rapida e precisa durante lo zoom, mentre il pan/tilt offre un controllo flessibile con rotazione a 355° e tilt a 90°. La telecamera integra funzioni di AI come face detection e protezione perimetrale IVS, oltre al supporto Wi-Fi, compressione Smart H.265+, protezione IP66 e IK10, rendendola ideale per piccoli negozi, uffici e applicazioni residenziali. Dahua
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

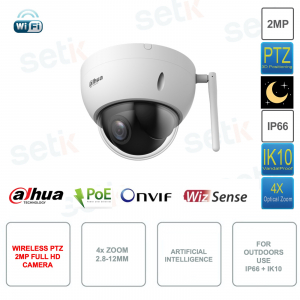

SD22204DB-GNY-W | TELECAMERA IP POE ONVIF STARLIGHT PER ESTERNO - PTZ - 2MEGAPIXEL FULL HD - WIFI - H.265+ / DWDR / INTELLIGENZA ARTIFICIALE

La telecamera PTZ Dahua SD22204DB-GNY-W è progettata per garantire un controllo avanzato della videosorveglianza, grazie al sensore 1/2.8" CMOS da 2MP e alla risoluzione massima Full HD 1080p (1920 × 1080) a 25/30 fps. L’ottica varifocale da 2.8–12 mm con zoom ottico 4x permette di ottenere immagini chiare e dettagliate, supportate dalla tecnologia Starlight che assicura visibilità a colori anche in condizioni di bassa illuminazione. Con funzioni AI come face detection e protezione perimetrale IVS, insieme a PFA Technology per una messa a fuoco rapida e precisa, questa telecamera offre un monitoraggio affidabile e intelligente. Inoltre, integra Wi-Fi, protezione IP66 e IK10, compressione video Smart H.265+, rendendola ideale per abitazioni, negozi e piccoli uffici.
Specifiche principali:
- Ottica varifocale 2.8–12 mm con zoom ottico 4x
- Sensore 1/2.8" CMOS da 2MP, risoluzione Full HD 1080p
- Tecnologia Starlight per immagini a colori anche al buio
- Face detection e protezione perimetrale IVS
- PFA Technology per messa a fuoco precisa durante lo zoom
- Wi-Fi integrato, compressione Smart H.265+, protezione IP66 e IK10
Ulteriori dettagli

Scheda tecnica
SD22204DB-GNY-W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
2 MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
1920 (H) × 1080 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
1/1 s–1/30,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
Color: 0.005 lux@F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm–12 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6–F3.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
4× |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Auto; semi-auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
1.5 m (4.92 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range |
Pan: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed |
Pan: 0.1°/s–100°/s Tilt: 0.1°/s–60°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed |
Pan: 100°/s; Tilt: 60°/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset |
300 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tour |
8 (up to 32 presets per tour) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pattern |
5 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion |
Pattern; Preset; Tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Protocol |
SD Pelco-P/D(Auto recognition) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Supports face detection, face track, snapshot, and face enhancement; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 1080p/1.3M/720p@(1–25/30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 2048 kbps–8192 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
DWDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
2D NR; 3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Stabilization |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Electronic defog |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16× |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
180° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
≥ 55 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Standard |
802.11n; IEEE802.11b; 802.11g |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Frequency Range |
2.4GHz |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wi-Fi–Wireless Transmission Rate |
150 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF(Profile S&G&T); P2P; CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast/Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (total bandwidth: 64 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; Micro SD card (512 GB); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE 9 and later versions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/ EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Capture; preset; tour; pattern; recordings; alarm digital input; send email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC, 1 A ± 10% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.7 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP66, IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
89 mm × Φ122 mm (3.50" × Φ4.80") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.5 kg (1.10 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.7 kg (1.54 lb) |
