SD22204DB-GNY-W - is a PTZ camera with a 1/2.8" 2MP CMOS sensor and a maximum resolution of Full HD 1080p (1920 × 1080) at 25/30 fps. The 2.8–12 mm varifocal lens with 4x optical zoom ensures clear and detailed images, supported by Starlight technology for color visibility even in low light conditions up to 0.005 Lux. Thanks to the PFA Technology function, it maintains quick and precise focus during zooming, while the pan/tilt offers flexible control with 355° rotation and 90° tilt. The camera integrates AI functions such as face detection and IVS perimeter protection, as well as Wi-Fi support, Smart H.265+ compression, IP66 and IK10 protection, making it ideal for small shops, offices and residential applications. Dahua

Technical data sheet

Reference: SD22204DB-GNY-W

Brand: Dahua

EAN: 6923172541055

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

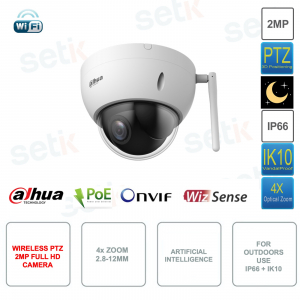

SD22204DB-GNY-W | ONVIF STARLIGHT POE IP CAMERA FOR OUTDOOR - PTZ - 2MEGAPIXEL FULL HD - WIFI - H.265+ / DWDR / ARTIFICIAL INTELLIGENCE

Dahua

The Dahua SD22204DB-GNY-W PTZ camera is designed to ensure advanced video surveillance control, thanks to the 1/2.8" CMOS 2MP sensor and maximum resolution of Full HD 1080p (1920 × 1080) at 25/30 fps. The 2.8–12 mm varifocal lens with 4x optical zoom allows for clear and detailed images, supported by Starlight technology that ensures color visibility even in low light conditions. With AI functions such as face detection and IVS perimeter protection, together with PFA Technology for fast and precise focusing, this camera offers reliable and intelligent monitoring. Furthermore, it integrates Wi-Fi, IP66 and IK10 protection, Smart H.265+ video compression, making it ideal for homes, shops and small offices .

Main specifications:

- 2.8–12 mm varifocal lens with 4x optical zoom

- 1/2.8" 2MP CMOS sensor, Full HD 1080p resolution

- Starlight technology for color images even in the dark

- Face detection and IVS perimeter protection

- PFA Technology for precise focusing while zooming

- Built-in Wi-Fi, Smart H.265+ compression, IP66 and IK10 protection

Further details

Optics :
2.8–12mm varifocal lens with 4x optical zoom , allowing you to switch from wide viewing angles to fine details even at long distances .
Resolution:
1/2.8" 2MP CMOS sensor with maximum output of Full HD 1080p (1920 × 1080) at 25/30 fps , for sharp, smooth images.
Starlight Technology:
Using deep learning algorithms, it detects faces, tracks them, and automatically captures the best image for analysis and storage .
Face Detection :
Intelligent detection on both channels, focusing on people and vehicles, reducing false alarms.
PFA Technology :
Intelligent autofocus system that ensures consistently sharp images while zooming, reducing focusing times.
PTZ camera:
It supports pan up to 355°, tilt up to 90° and 300 presets, ensuring flexible and customizable monitoring.
WizSense Technology :
Powered by AI chips and deep learning algorithms, it focuses on people and vehicles, reducing false alarms and improving accuracy.

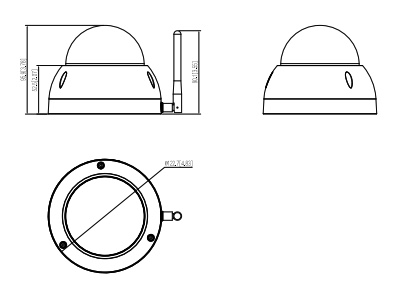

SD22204DB-GNY-W dimensions

Technical data sheet

SD22204DB-GNY-W

Room

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6

Lens

Focal Length

2.8 mm–12 mm

Max. Openings

F1.6–F3.0

Field of View

H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6°

Optical Zoom

Focus Control

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS

Interoperability

ONVIF(Profile S&G&T); P2P; CGI; SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

FTP; Micro SD card (512GB); NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
iOS 10 and later versions.

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE: CE-LVD: IEC 62368-1/ CE-EMC/EN55032/

EN61000-3-3/EN IEC61000-3-2/EN50130-4/EN55035

FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Alarm Linkage

Capture; presets; tours; pattern; recordings; alarm digital input; send email

Alarm Event

Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection

Power

Power Supply

12 VDC, 1 A ± 10%

Power Consumption

Basic: 2.7 W
Max.: 4.8 W

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

≤ 95%

Protection

IP66, IK10

Structure

Product Dimensions

89mm × Φ122mm (3.50" × Φ4.80")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

0.7 kg (1.54 lb)
