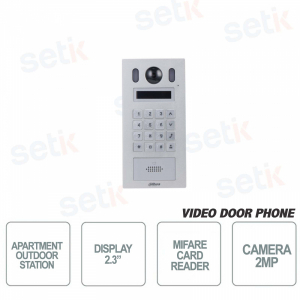

Postazione esterna IP a 2 fili con telecamera integrata avente sensore CMOS 1/2,9" da 2 Megapixel. Illuminazione con led bianco, Display 2.3" OLED, Lettore Tessere Mifare e Tastierino meccanico con Braille per inserimento password. Connessione attraverso porta LAN, 1 uscita a relè per comando apri porta mono famigliare espandibile su RS485. 1 ingresso e 1 uscita allarme, 1 uscita Wiegand, Antivandalo IK08. Grado IP65. Realizzata in Alluminio. Dahua Security. VTO6222E-P
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
POSTAZIONE ESTERNA CON TELECAMERA 2MP - DISPLAY 2.3" OLED - TASTIERINO MECCANICO CON BRAILLE - LETTORE TESSERE MIFARE DAHUA
DESCRIZIONE:
La postazione esterna Retroilluminata VTO6222E-P di Dahua, è una delle migliori postazioni sul mercato
Ideale per installazioni in appartamenti.
Dotato di telecamera con sensore CMOS 2Megapixel, Display OLED, Tastierino Numerico Meccanico con Braille e Lettore Card Mifare.
Il LED con luce bianca integrato nel dispositivo permette un riconoscimento semplificato del soggetto inquadrato.
Prodotto di qualità. Dahua Security
Dettagli Prodotto:
|
Scheda tecnica
| Model | VTO6222E-P |
| System | |
| Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS |
| Button Type | Mechanical |
| Number of Buttons | 16 |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 2.3"OLED |
| Image Sensor | 1/2.9” 2MP CMOS |
| Field of View | H:140°,V:80°, D:160° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H264,H265 |
| Video Resolution | Main stream: 720p,WVGA, D1, CIF Sub stream: 1080p,WVGA, D1, QVGA, CIF |
| Video Frame Rate | 25 fps |
| Light Compensation | Auto white light |
| Day/Night | Color/B/W |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Input | 1 |
| Audio Output | Built-in Speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function | |
| Communication Mode | Digital 2-wire |
| Unlock Mode | Card swiping;password;remote |
| Card Type | Mifare card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | NA;Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| RFID | |
| Modulation Type | AM |
| Frequency Range | 13.56 MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Casing Material | Aluminum |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 |
1 |
| Wiegand | 1 |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Power Output | 1 port,12 V/600 mA |
| Door Bell | 1 |
| Exit Button | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port,10Mbps/100Mbps network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 48 VDC, 0.4 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount;Surface Mount |
| Certifications | CE |
| Accessory | Flush mount box (optional); Surface mount box (optional) |
| Product Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") |
| Protection | IK08, IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤ 5 W (standby), ≤ 7 W (working) |
| Gross Weight | 657 g(1.45 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75%(RH) |
Ulteriori dettagli
![]() |
Telecamera integrata nel dispositivo. |
![]() |
Dispositivo equipaggiato di LED a luce bianca per una migliore visione notturna. |
![]() |
1x Lettore Tessere Mifare integrato per sblocco porta (Tessera non inclusa) |
![]() |
Tastierino meccanico numerico con Braille per inserimento interno abitazione o password per sblocco porta |
![]() |
Connessione tramite porta Comunicazione tramite TCP/IP RS485 |
![]() |
1 Uscita Relè per comando apri porta mono famigliare espandibile con modulo relè DEE1010A su RS485 (Max 1) |
![]() |
Postazione adatta ad ambienti esterni grazie alla caratteristica Waterproof |
![]() |
Pannello completamente in acciaio resistente agli atti vandalici |
|
|
Alimentazione 12Vdc |
![]() |
Pannello realizzato completamente in Lega di alluminio. |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
Installazione
