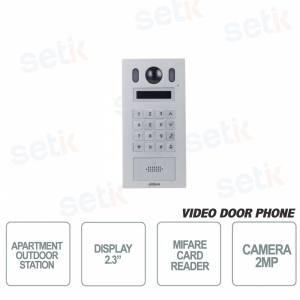

2-wire IP outdoor station with integrated camera with 1/2.9" 2 Megapixel CMOS sensor. White LED lighting, 2.3" OLED display , Mifare card reader and mechanical keypad with Braille for password entry. Connection via LAN port, 1 relay output for single-family door opening command expandable on RS485. 1 alarm input and output, 1 Wiegand output, IK08 vandal-proof. IP65 rating. Made of aluminum. Dahua Security . VTO6222E-P
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
OUTDOOR STATION WITH 2MP CAMERA - 2.3" OLED DISPLAY - MECHANICAL KEYPAD WITH BRAILLE - DAHUA MIFARE CARD READER
DESCRIPTION:
The Dahua VTO6222E-P backlit outdoor station is one of the best stations on the market.
Ideal for apartment installations.
Equipped with a 2Megapixel CMOS sensor camera , OLED display , mechanical numeric keypad with Braille and Mifare card reader .
The white light LED integrated into the device allows for easy recognition of the subject in the frame.
Quality product. Dahua Security
Product Details:
![]()
|
Technical data sheet
| Model | VTO6222E-P |
| System | |
| Main Processor | Embedded Microprocessor |
| Operation System | Embedded LINUX OS |
| Button Type | Mechanical |
| Number of Buttons | 16 |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 2.3"OLED |
| Image Sensor | 1/2.9” 2MP CMOS |
| Field of View | H:140°, V:80°, D:160° |
| WDR | 120dB |
| Noise Reduction | 3D NR |
| Video Compression | H264,H265 |
| Video Resolution | Main stream: 720p,WVGA,D1,CIF Sub stream: 1080p,WVGA, D1, QVGA, CIF |
| Video Frame Rate | 25fps |
| Light Compensation | Car white light |
| Day/Night | Color/B/W |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Input | 1 |
| Audio Output | Built-in Speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bitrate | 16KHz, 16bit |
| Function | |
| Communication Mode | Digital 2-wire |
| Unlock Mode | Card swiping; password; remote |
| Card Type | Mifare card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | NA;Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| WebConfiguration | Yes |
| RFID | |
| Modulation Type | AM |
| Frequency Range | 13.56MHz |
| Max. Transmission Power | 42dBuA/m @10m |
| Performance | |
| Card Reading Distance | 0cm–3cm (0"–1.18") |
| Casing Material | Aluminum |
| Capacity | |
| Card Capacity | 10000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| Alarm Input | 1 |
| AlarmOutput | 1 |
| Power Output | 1 port,12V/600mA |
| Door Bell | 1 |
| Exit Button | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port,10Mbps/100Mbps network port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Color | Silver |
| Power Supply | 48 VDC, 0.4 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush Mount;Surface Mount |
| Certifications | THERE IS |
| Accessories | Flush mount box (optional); Surface mount box (optional) |
| Product Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") |
| Protection | IK08, IP65 (silicone sealant is needed, see the quick start guide) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Environment | Outdoor |
| Operating Altitude | Above 3000 m (9842.52 ft) |
| Power Consumption | ≤ 5 W (standby), ≤ 7 W (working) |
| Gross Weight | 657g(1.45lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75%(RH) |
Further details
![]() | Camera built into the device. |
![]() | Device equipped with white light LEDs for better night vision. |
![]() | 1x Integrated Mifare Card Reader for door unlocking (Card not included) |
![]() | Mechanical numeric keypad with Braille for internal home entry or password for door unlocking |
![]() | Connection via RS485 TCP/IP communication port |
![]() | 1 Relay Output for single-family door opening control expandable with DEE1010A relay module on RS485 (Max 1) |
![]() | Station suitable for outdoor environments thanks to the Waterproof feature |
![]() | Vandal-resistant all-steel panel |
| Power supply 12Vdc |
![]() | Panel made entirely of aluminum alloy. |
| This product is covered by a 24 month warranty. |
