Postazione Dahua per esterno Retroilluminata con telecamera integrata avente sensore CMOS 1/2.8" da 2 Megapixel. Illuminazione con led bianco, Display IPS da 4.3". Lettore Tessere, Tastierino per inserimento password e sblocco da remoto. Connessione attraverso porta LAN, 1 uscita a relè per comando apri porta mono famigliare espandibile su RS485. 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita Wiegand. Grado IP65. Dahua. VTO6521H-S2
FUORI TUTTO ×
  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

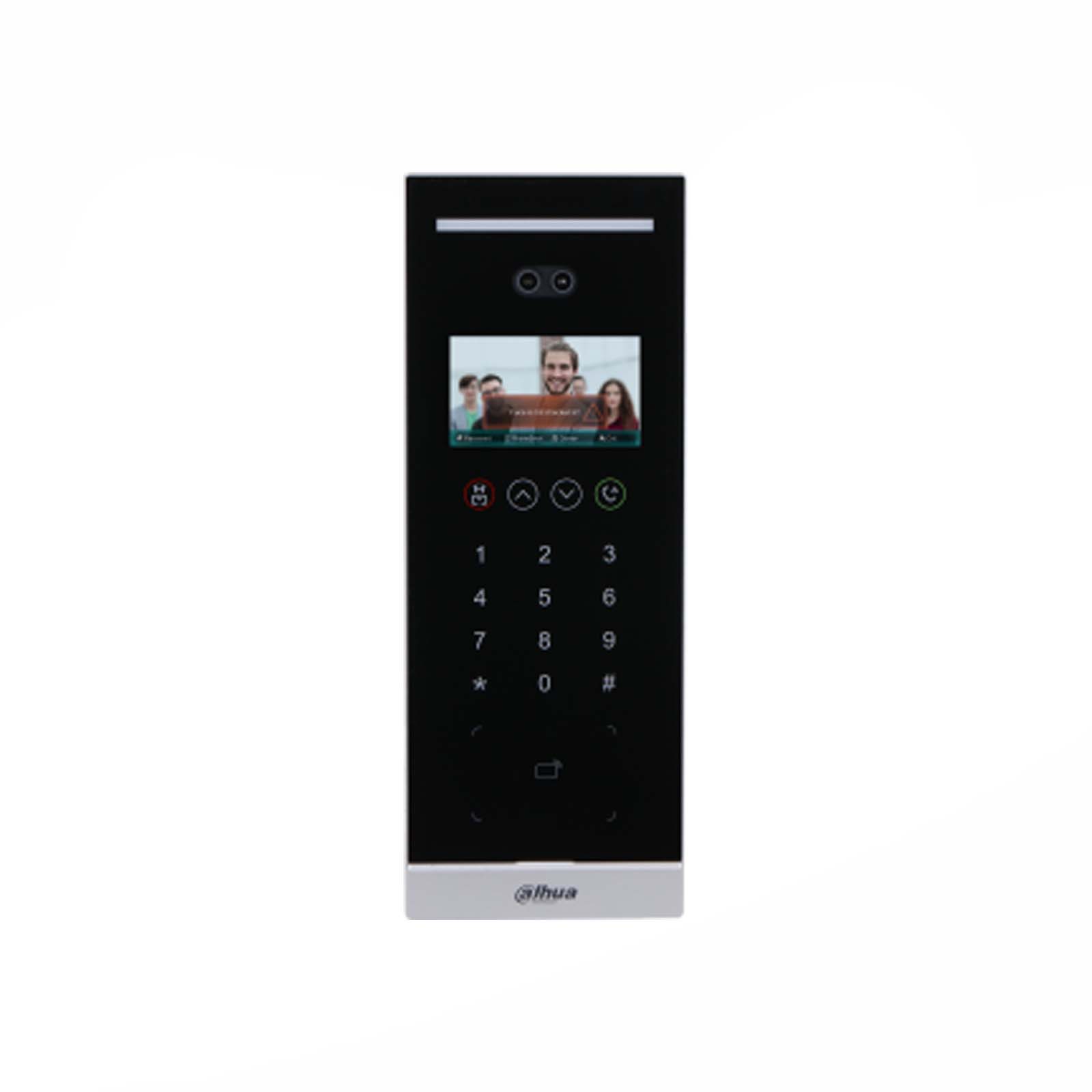

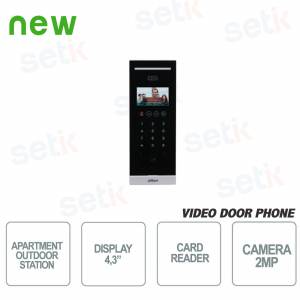

POSTAZIONE ESTERNA RETROILLUMINATA CON TELECAMERA - IPS DISPLAY - TASTIERINO - S2 - DAHUA
DESCRIZIONE:
 La postazione esterna Retroilluminata VTO6521H di Dahua, è una delle migliori postazioni sul mercato

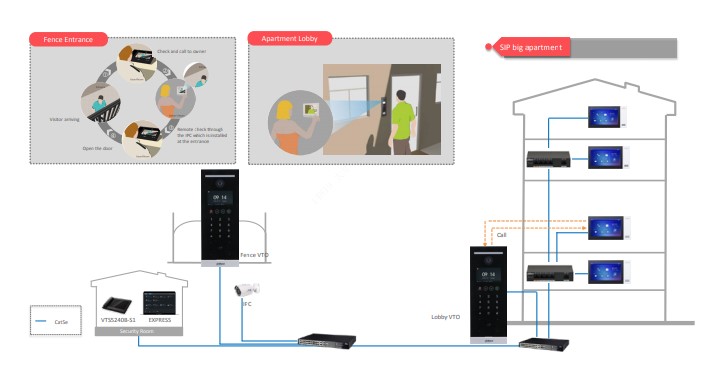

 Ideale per installazioni in condomini o palazzi con più abitazioni.
 Dotato di telecamera con sensore CMOS 2Mp, Display da 4.3", Tastierino Numerico e Lettore Card.
Il LED con luce bianca integrato nel dispositivo permette un riconoscimento semplificato del soggetto inquadrato.
Prodotto di qualità. Dahua Security
Dettagli Prodotto:
|
 |
Scheda tecnica
| Model | VTO6521H-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Network Protocol | RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 4.3-inch display screen |
| Resolution | 800×480 |
| Camera | 1/2.8" 2MP CMOS high-definition, low illumination, cameras |
| Field of View | H: 95°; V: 50°; D: 110° |
| WDR | 120dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 1,024 kbps–8,192 kbps |
| Light Compensation | Auto white light |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Remote;Card;Password |
| Auto Snapshot | Yes |
| Information Release | Receive and view text information released by the management center. |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| Web Configuration | Yes |
| Auto Registration | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0 cm–5 cm (IC card) |
| Issue Card Locally | Yes |
| Casing Material | PC+ABS |
| Capacity | |
| Card | 20, 000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (they can be set as an input or output port) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Power Output | 1 port (12 V, 500 mA) |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 channel, open by default |
| Network | 1 × 10 Mbps/100 Mbps Ethernet port |
| Alarm | |
| Tamper | Yes |
| General | |
| Password Unlock Mode | User, public and duress passwords |
| Color | Silver |
| Power Supply Mode | DC 12V2A Standard PoE |
| Power Adapter | Optional |
| Installation | Flush Mount;Wall Mount |
| Certification | CE |
| Accessory | Power supply (optional); Flush mount box (optional) |
| Product Dimensions | 388.5 mm × 145.5 mm × 43.5 mm (15.30" × 5.73" × 1.71") (H × W × D) |
| Protection Grade | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9842.52 ft) |
| Power Consumption | ≤5W (standby), ≤18W (working) |
| Gross Weight | 1.48 kg (3.26 lb) |
Ulteriori dettagli
|  | Telecamera integrata nel dispositivo. |
|  | Dispositivo equipaggiato di LED a luce bianca per una migliore visione notturna. |
|  | Display IPS da 4.3" |
|  | 1x Lettore Tessere integrato per sblocco porta (Tessera non inclusa) |
|  | Tastierino touch numerico per inserimento interno abitazione o password per sblocco porta |
|  | Connessione tramite porta Comunicazione tramite TCP/IP RS485 |
|  | 1 Uscita Relè per comando apri porta mono famigliare espandibile con modulo relè DEE1010A su RS485 (Max 1) |
|  | Postazione adatta ad ambienti esterni grazie alla caratteristica Waterproof |
|

 | Alimentazione 12Vdc |
|  | Pannello realizzato completamente in PC+ABS. |
|  | Questo prodotto è coperto da Garanzia di 24 mesi. |
