Dahua Outdoor Station Backlit with integrated camera with 1/2.8" 2 Megapixel CMOS sensor. White LED lighting, 4.3" IPS display . Card reader, keypad for password entry and remote unlocking. Connection via LAN port, 1 relay output for single-family door opening control expandable on RS485. 2 alarm inputs and 2 outputs, 1 Wiegand input and output. IP65 grade. Dahua. VTO6521H-S2
DAHUA: UNTER DEM EINSTANDSPREIS×
UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
Entdecken Sie die Promo jetzt >>
TOTALER AUSVERKAUF ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

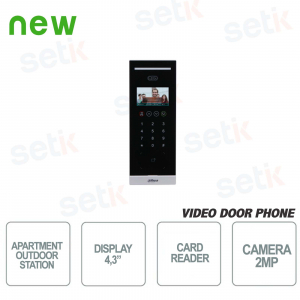

BACKLIT OUTDOOR STATION WITH CAMERA - IPS DISPLAY - KEYPAD - S2 - DAHUA
DESCRIPTION:
The Dahua VTO6521H backlit outdoor station is one of the best stations on the market
Ideal for installations in condominiums or buildings with multiple homes.
Equipped with a 2Mp CMOS sensor camera , 4.3" display , numeric keypad and card reader .
The white light LED integrated into the device allows for easy recognition of the subject in the frame.
Quality product. Dahua Security
Product Details:
|
Technical data sheet
| Model | VTO6521H-S2 |
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Button Type | Touch button |
| Network Protocol | RTMP;HTTP/HTTPS;DNS;RTSP;SSH;ONVIF;SIP;RTP |
| Basic | |
| Screen Type | Non-touchscreen |
| Display Screen | 4.3-inch display screen |
| Resolution | 800×480 |
| Room | 1/2.8" 2MP CMOS high-definition, low illumination, cameras |
| Field of View | H: 95°; V: 50°; D: 110° |
| WDR | 120dB |
| Noise Reduction | 3D noise reduction |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720P/D1/WVGA; Sub stream: 1080P/720P/D1/WVGA/CIF/QVGA |
| Video Frame Rate |
25fps |
| Video Bitrate | 1,024kbps–8,192kbps |
| Light Compensation | Car white light |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression and cancellation/digital noise reduction |
| Audio Bitrate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Remote;Card;Password |
| Auto Snapshot | Yes |
| Information Release | Receive and view text information released by the management center. |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| WebConfiguration | Yes |
| Auto Registration | Yes |
| RFID | |
| Card Type | IC card |
| Performance | |
| Card Reading Distance | 0cm–5cm (IC card) |
| Issue Card Locally | Yes |
| Casing Material | PC+ABS |
| Capacity | |
| Card | 20,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 (they can be set as an input or output port) |
| Alarm Input | 2 |
| AlarmOutput | 2 |
| Power Output | 1 port (12V, 500mA) |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 channel, open by default |
| Network | 1 × 10Mbps/100Mbps Ethernet port |
| Alarm | |
| Tamper | Yes |
| General | |
| Password Unlock Mode | User, public and hard passwords |
| Color | Silver |
| Power Supply Mode | DC12V2A PoE Standards |
| Power Adapter | Optional |
| Installation | Flush Mount;Wall Mount |
| Certification | THERE IS |
| Accessories | Power supply (optional); Flush mount box (optional) |
| Product Dimensions | 388.5 mm × 145.5 mm × 43.5 mm (15.30" × 5.73" × 1.71") (H × W × D) |
| Protection Grade | IP65 rated (Silicone sealant is required. See the quick start guide for more information). |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
|
Operating Altitude |
0 m–3,000 m (0 ft–9842.52 ft) |
|
Power Consumption |
≤5W (standby), ≤18W (working) |
|
Gross Weight |
1.48 kg (3.26 lb) |
Further details
![]() |
Camera built into the device. |
![]() |
Device equipped with white light LEDs for better night vision. |
![]() |
4.3" IPS display |
![]() |
1x Integrated Card Reader for door unlocking (Card not included) |
![]() |
Numeric touch keypad for entering internal home code or password for unlocking door |
![]() |
Connection via RS485 TCP/IP communication port |
![]() |
1 Relay Output for single-family door opening control expandable with DEE1010A relay module on RS485 (Max 1) |
![]() |
Station suitable for outdoor environments thanks to the Waterproof feature |
|
|
Power supply 12Vdc |
![]() |
Panel made entirely of PC+ABS . |
| This product is covered by a 24 month warranty. |
Installation
