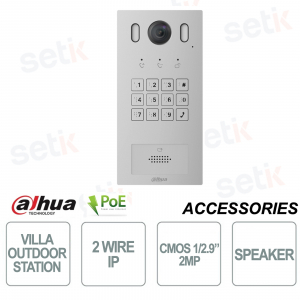

POSTAZIONE ESTERNA IN ALLUMINIO ANODIZZATO CON TELECAMERA 2MP E ILLUMINAZIONE - ALTOPARLANTE - DAHUA

DESCRIZIONE:
La postazione esterna VTO3222E-P di Dahua, è una delle migliori postazioni sul mercato
Ideale per installazioni in Ville grazie al suo design curato.
Dotato di telecamera con sensore CMOS 2Mp, con 12 tasti - Dotato di altoparlante integrati.
Dettagli Prodotto:
|
Scheda tecnica
|
Technical Specs |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
VTO3222E-P |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Embedded Processor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation System |
Embedded LINUX OS |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Button Type |
Mechanical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Number of Buttons |
12 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Basic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera |
1/2.9” 2MP CMOS |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
H:140°,V:80°, D:160° |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
WDR |
120 dB |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Noise Reduction |
3D NR |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
H.264, H265 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Resolution |
Main stream: 720p,WVGA, D1, CIF |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Frame Rate |
25 fps |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Light Compensation |
Auto white light |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Day/Night |
Color/B/W |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a, G.711u, PCM |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
Built-in Speaker |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Mode |
Two-way audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Enhancement |
Echo suppression/digital noise reduction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
16 KHz, 16 bit |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Function |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Communication Mode |
Digital 2-wire |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Unlock Mode |
Card swiping;password;remote |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Card Type |
Mifare card |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Auto Snapshot |
Yes (SD card inserted in VTH or FTP server is configured for VTO) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Leave Videos |
Yes (SD card is inserted in the indoor monitor or door station) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Supports Micro SD card (up to 256 GB) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Web Configuration |
Yes |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RFID |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Modulation Type |
AM |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency Range |
13.56 MHz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Transmission Power |
42dBuA/m @10m |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Reading Distance | 0 cm–3 cm (0"–1.18") | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Casing Material | Aluminum | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Card Capacity | 10000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RS-485 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wiegand | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Input | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm Output | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Output | 1 port,12 V/600 mA | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Door Bell | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Exit Button | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lock Control | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Port | 1 × RJ-45 port,10Mbps/100Mbps network port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tamper Alarm | Yes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Appearance Color | Silver | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 48 VDC, 0.4 A, PoE (802.3af/at) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Adapter | Optional | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Installation | Flush Mount;Surface Mount | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Accessory | Flush mount box (optional); Surface mount box (optional) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 200.0 mm × 98.0 mm × 35.4 mm (7.87" × 3.86" × 1.39") | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | IK08, IP65 (silicone sealant is needed, see the quick start guide) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140°F) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 10%–90% (RH), non-condensing | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Environment | Outdoor | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Altitude | Beneath 3000 m (9842.52 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | ≤ 5 W (standby), ≤ 7 W (working) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 692 g (1.53 lb) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Humidity | 30%–75%(RH) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
