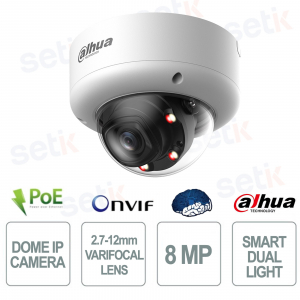

8MP Dome Varifocale 2.7-12mm WizMind AI Smart Dual Light IP67 IK10 con AcuPick e Microfono Integrato - Dahua
IPC-HDBW5859E1-ZE-IL - è una telecamera dome professionale con ottica varifocale motorizzata 2.7–12 mm, progettata per adattare con precisione il campo visivo da grandangolare a zoom. Grazie alla risoluzione 8MP Ultra HD e al sensore 1/1.8" CMOS ad alta sensibilità, offre immagini estremamente dettagliate anche in condizioni di scarsa illuminazione, supportate dalla tecnologia Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m. Integra avanzate funzionalità di Intelligenza Artificiale WizMind con modelli Xinghan AI, garantendo analisi evolute come AcuPick, face detection, people counting e protezione perimetrale. La compressione H.265+ con AI Coding ottimizza banda e storage, mentre funzioni come WDR 120dB e 3D NR migliorano la qualità video in ogni scenario. Progettata per ambienti critici, dispone di protezione IP67 e IK10, microfono integrato e supporto fino a 1TB MicroSD, assicurando massima affidabilità e sicurezza avanzata. Dahua
SCEGLI PROFESSIONISTA
IPC-HDBW5859E1-ZE-IL | TELECAMERA IP 8MP OTTICA FISSA 2.7-12mm - SMART DUAL LIGHT - NETWORK CAMERA
La Dahua IPC-HDBW5859E1-ZE-IL è una telecamera dome avanzata con ottica varifocale motorizzata 2.7–12 mm, ideale per adattare l’inquadratura da ampio campo visivo a dettagli precisi. Dotata di risoluzione 8MP Ultra HD e sensore 1/1.8" CMOS ad alta sensibilità, garantisce immagini estremamente nitide anche in condizioni di scarsa illuminazione. Integra la tecnologia Smart Dual Light con IR fino a 60 m e luce calda fino a 50 m per una visione notturna intelligente e a colori. Grazie all’Intelligenza Artificiale WizMind e ai modelli Xinghan AI, offre funzioni evolute come AcuPick, face detection, people counting e protezione perimetrale. La compressione H.265+ con AI Coding ottimizza banda e storage, mentre la protezione IP67 e IK10 assicura massima resistenza in ambienti esterni.
Specifiche principali:
- Ottica varifocale 2.7–12 mm motorizzata per regolazione precisa del campo visivo
- Risoluzione 8MP con sensore 1/1.8" CMOS per immagini ad altissima definizione
- Smart Dual Light (IR 60 m + luce calda 50 m) per visione notturna intelligente e a colori
- AI WizMind con Xinghan Large-Scale Models per analisi avanzata e riconoscimento preciso
- AcuPick intelligente per ricerca rapida di persone e veicoli nei video
- Funzioni AI avanzate come face detection, people counting e protezione perimetrale
- Compressione H.265+ e AI Coding per ottimizzazione banda e archiviazione
- WDR 120dB e 3D NR per qualità video elevata in qualsiasi condizione
- Protezione IP67 e IK10 resistente a polvere, acqua e atti vandalici
- Microfono integrato e supporto audio/allarme I/O per gestione completa della sicurezza
Ulteriori dettagli
✅ Ottica:
Ottica varifocale motorizzata 2.7–12 mm che permette una regolazione dinamica dell’angolo di visione (fino a 113°–47°), ideale per coprire sia aree ampie che dettagli specifici.
Scheda tecnica
| MODEL | IPC-HDBW5859E1-ZE-IL |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0008 lux@F1.8 (Color, 30 IRE) 0.0008 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Aperture | F1.8 |
| Field of View | H: 113°–47°; V: 60°–23°; D: 133°–53° |
| Iris Control | Auto |
| Iris Control Type | DC-Iris |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+. |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android;iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Sound Warning | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7 W (12 VDC); 5 W (PoE); Max.: 12.9 W (12 VDC); 16.1 W (PoE) (IR on + WDR + intelligence on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *Basic Protection: The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. *Moderate Protection: The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably in areas up to 2 km (1.24 mi) from the coast, as well as in regions prone to acid rain exposure. *Professional Protection: The products are fitted with premium-level anti-corrosion protection, making them ideal for use in sensitive environments such as chemical plants, docks, and coastlines. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 118.0 mm × Φ159.0 mm (4.65" × Φ6.26") |
| Net Weight | 1.16 kg (2.56 lb) |
| Gross Weight | 1.36 kg (3.00 lb) |
