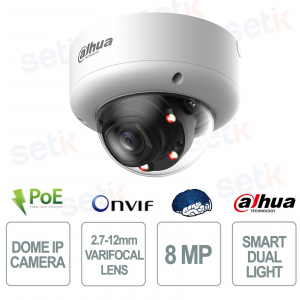

IPC-HDBW5859E1-ZE-IL - is a professional dome camera with 2.7–12 mm motorized varifocal lens, designed to precisely adapt the field of view from wide angle to zoom. Thanks to the 8MP Ultra HD resolution and the 1/1.8" high-sensitivity CMOS sensor, it offers extremely detailed images even in low light conditions, supported by Smart Dual Light technology with IR up to 60 m and warm light up to 50 m. It integrates advanced WizMind Artificial Intelligence functions with Xinghan AI models , ensuring advanced analysis such as AcuPick, face detection, people counting and perimeter protection . H.265+ compression with AI Coding optimizes bandwidth and storage, while functions such as WDR 120dB and 3D NR improve video quality in every scenario. Designed for critical environments, it features IP67 and IK10 protection, integrated microphone and support for up to 1TB MicroSD , ensuring maximum reliability and advanced security. Dahua
INSTALLATEUR FINDEN
IPC-HDBW5859E1-ZE-IL | 8MP IP CAMERA WITH 2.7-12mm FIXED LENS - SMART DUAL LIGHT - NETWORK CAMERA
The Dahua IPC-HDBW5859E1-ZE-IL is an advanced dome camera with 2.7–12 mm motorized varifocal lens, ideal for adapting the framing from a wide field of view to precise details. Equipped with 8MP Ultra HD resolution and a high-sensitivity 1/1.8" CMOS sensor, it guarantees extremely clear images even in low light conditions. It integrates Smart Dual Light technology with IR up to 60 m and warm light up to 50 m for intelligent and color night vision. Thanks to WizMind Artificial Intelligence and Xinghan AI models , it offers advanced functions such as AcuPick, face detection, people counting and perimeter protection . H.265+ compression with AI Coding optimizes bandwidth and storage, while IP67 and IK10 protection ensures maximum resistance in outdoor environments.
Main specifications:
- Motorized 2.7–12 mm varifocal optics for precise adjustment of the field of view
- 8MP resolution with 1/1.8" CMOS sensor for ultra-high definition images
- Smart Dual Light (IR 60m + warm light 50m) for intelligent night vision and color
- AI WizMind with Xinghan Large-Scale Models for advanced analysis and precise recognition
- Intelligent AcuPick for quick search of people and vehicles in videos
- Advanced AI features such as face detection, people counting and perimeter protection
- H.265+ compression and AI Coding for bandwidth and storage optimization
- WDR 120dB and 3D NR for high video quality in any condition
- IP67 and IK10 protection resistant to dust, water and vandalism
- Built-in microphone and audio/alarm I/O support for complete security management
Further details
✅ Optics :
2.7–12 mm motorized varifocal lens that allows dynamic adjustment of the viewing angle (up to 113°–47°) , ideal for covering both large areas and specific details.
Technical data sheet
| MODEL | IPC-HDBW5859E1-ZE-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0008 lux@F1.8 (Color, 30 IRE) 0.0008 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual;Zoomprio |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-12 mm |
| Max. Openings | F1.8 |
| Field of View | H: 113°–47°; V: 60°–23°; D: 133°–53° |
| Iris Control | Car |
| Iris Control Type | DC-Iris |
| Close Focus Distance | 0.13 m (0.43 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | AI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+. |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) Fourth stream: 1280 × 720@(1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 3 kbps–16384 kbps H.265: 3 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 11 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Sound Warning | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 3.7W (12VDC); 5W (PoE); Max.: 12.9W (12VDC); 16.1 W (PoE) (IR on + WDR + intelligence on) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *Basic Protection: The products are designed for general use in areas that have no specific requirements for anti-corrosion protection. *Moderate Protection: The products feature high-grade anti-corrosion protection, making them well-suited for environments with standard corrosion resistance requirements. They perform reliably in areas up to 2 km (1.24 mi) from the coast, as well as in regions prone to acid rain exposure. *Professional Protection: The products are fitted with premium-level anti-corrosion protection, making them ideal for use in sensitive environments such as chemical plants, docks, and coastlines. |
| Structure | |
| Casing Material | Metal |

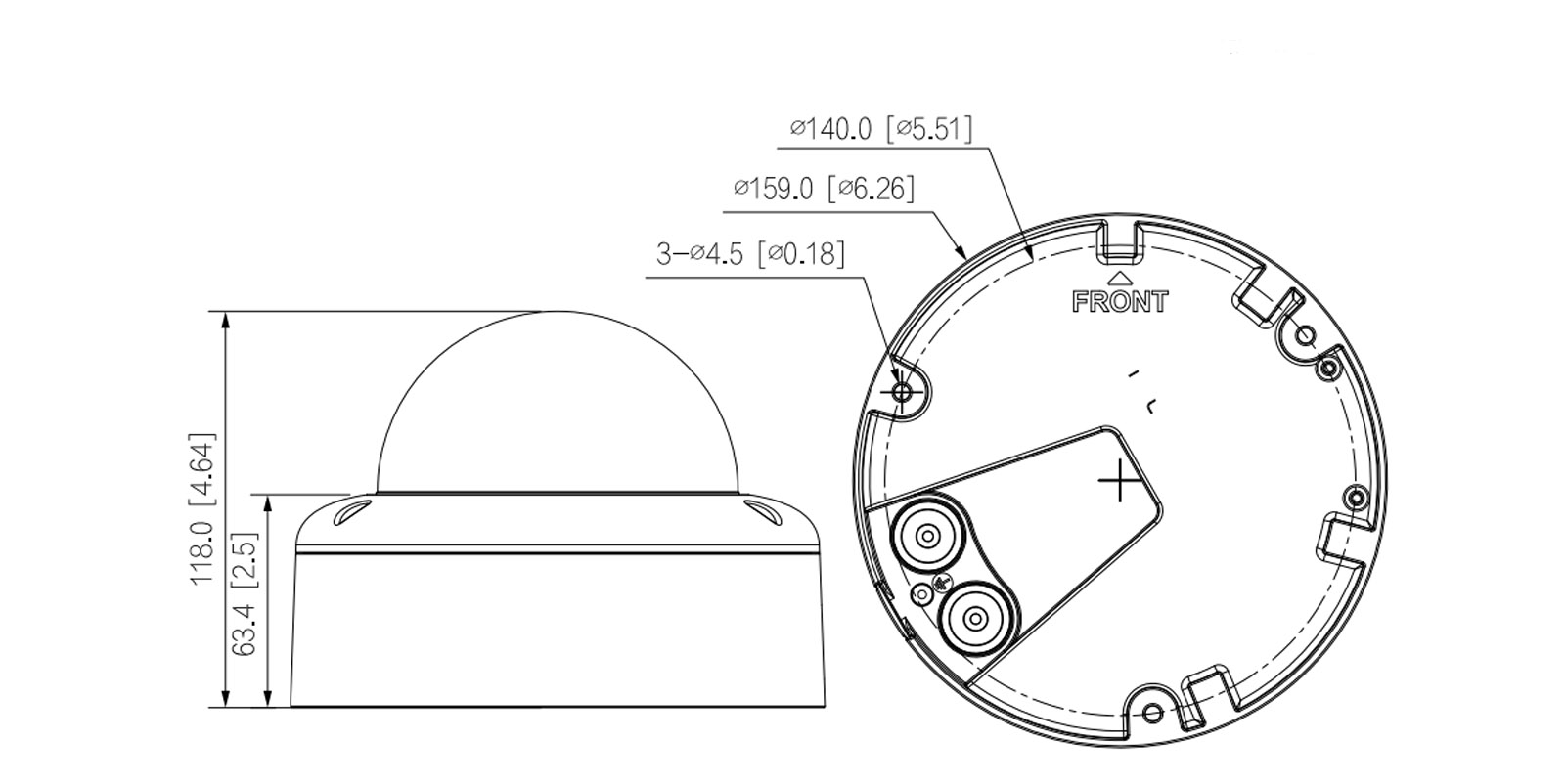

| Product Dimensions | 118.0 mm × Φ159.0 mm (4.65" × Φ6.26") |
| Net Weight | 1.16 kg (2.56 lb) |
| Gross Weight | 1.36 kg (3.00 lb) |
