DS-PDCMK-EG2-WE Magnetic Wireless Sensor with Shock and Tilt 868MHz AES-128 - Hikvision

DS-PDCMK-EG2-WE Magnetic Wireless Sensor with Shock and Tilt 868MHz AES-128 - Hikvision

 
BEST PRICE -35% Neu

DS-PDCMK-EG2-WE - The wireless sensor is an advanced solution for protecting doors and windows, combining magnetic contact, shock, and tilt detection for complete security against intrusion and tampering. Thanks to 868 MHz bidirectional Tri-X technology with AES-128 encryption , it guarantees reliable and secure communications up to 1.6 km. The device offers 8-level adjustable sensitivity for shock and tilt detection up to 25°, ensuring accuracy and adaptability. Remote configuration via app and the compact design with easy installation make it ideal for professional systems, while the battery life of up to 3 years ensures continuous operation over time. - Hikvision

Technical Data Sheet

Artikel-Nr.: DS-PDCMK-EG2-WE

Marke: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

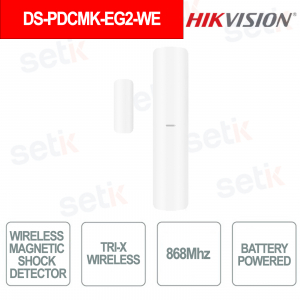

DS-PDCMK-EG2-WE | WIRELESS MAGNETIC SHOCK DETECTOR

Hikvision

The Hikvision DS-PDCMK-EG2-WE wireless sensor is an advanced door and window security solution, designed to detect intrusions through a combination of magnetic contact, shock, and tilt detection . Bidirectional 868 MHz Tri-X technology with AES-128 encryption ensures reliable and secure communications up to 1.6 km. Featuring 8-level adjustable sensitivity for shock and tilt detection up to 25°, it guarantees maximum precision. Remote configuration via app and support for wired inputs make it extremely versatile, while the battery life of up to 3 years ensures operational continuity and reduced maintenance.

Main specifications:

- Magnetic contact with integrated shock and tilt: complete detection of opening, vibration and tilt

- Tri-X 868 MHz technology with AES-128: secure and stable transmission up to long distance

- Adjustable sensitivity (8 levels): precise adaptation to the installation context

- Remote setup and easy installation: Simple management via app and quick installation

- Additional wired inputs: expand functionality with external sensors

- Battery up to 3 years: long autonomy to reduce maintenance interventions

Further details

✅ Detection Performance:
The device integrates an advanced combined magnetic contact, shock and tilt detection system , with an opening gap of up to 43 mm , 8-level adjustable sensitivity for shocks and tilt detection up to 25°, ensuring precise and complete control against intrusion attempts.
✅ Features :
Featuring advanced digital processing , front and rear tamper protection and intelligent status indicators, it ensures high operational reliability and protection against tampering.
✅ Interface:
It features configurable alarm inputs (NC/NO/pulse) and multi-color LED signaling , offering flexible management and easy integration with advanced security systems.
✅ Transmission :
It uses 868MHz two-way wireless Tri-X technology with AES-128 encryption , with a range of up to 1.6km and frequency hopping anti-jamming system, ensuring stable and secure communications.
✅ Power supply:
Powered by a 3V CR123A battery , it offers up to 3 years of battery life , ensuring long life and reducing maintenance.

Technical data sheet

DS-PDCMK-EG2-WE
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 24mm × 104mm × 24.4mm 13mm × 34.4mm × 11.4mm
Weight 60g
Application Scenario Indoor
Detection Performance
Detection Method Opening Contact
Detection Gap 43 mm Max
Sensitivity Shock detection: 8 levels Tilt detection: Up to 25°
Features
Digital Processing Support
Tamper Protection Front
Environment Temperature Indicator Support
Signal Strength Indicator Support

Interfaces
Alarm Output Normally Closed; Normally Open; Impulse Count
Power Switch Power up enrolling
LED Indicator Green(MC), Orange(tilt), Red(shock), Blue(alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life Up to 3 years (standby time)
Power Supply Battery powered
Battery Type CR123A x 1
Typical Voltage 3V
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
