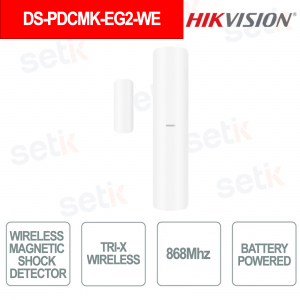

DS-PDCMK-EG2-WE | WIRELESS MAGNETIC SHOCK DETECTOR

Hikvision

The Hikvision DS-PDCMK-EG2-WE wireless sensor is an advanced door and window security solution, designed to detect intrusions through a combination of magnetic contact, shock, and tilt detection . Bidirectional 868 MHz Tri-X technology with AES-128 encryption ensures reliable and secure communications up to 1.6 km. Featuring 8-level adjustable sensitivity for shock and tilt detection up to 25°, it guarantees maximum precision. Remote configuration via app and support for wired inputs make it extremely versatile, while the battery life of up to 3 years ensures operational continuity and reduced maintenance.

Main specifications:

- Magnetic contact with integrated shock and tilt: complete detection of opening, vibration and tilt

- Tri-X 868 MHz technology with AES-128: secure and stable transmission up to long distance

- Adjustable sensitivity (8 levels): precise adaptation to the installation context

- Remote setup and easy installation: Simple management via app and quick installation

- Additional wired inputs: expand functionality with external sensors

- Battery up to 3 years: long autonomy to reduce maintenance interventions

Further details

Detection Performance:
The device integrates an advanced combined magnetic contact, shock and tilt detection system , with an opening gap of up to 43 mm , 8-level adjustable sensitivity for shocks and tilt detection up to 25°, ensuring precise and complete control against intrusion attempts.
Features :
Featuring advanced digital processing , front and rear tamper protection and intelligent status indicators, it ensures high operational reliability and protection against tampering.
Interface:
It features configurable alarm inputs (NC/NO/pulse) and multi-color LED signaling , offering flexible management and easy integration with advanced security systems.
Transmission :
It uses 868MHz two-way wireless Tri-X technology with AES-128 encryption , with a range of up to 1.6km and frequency hopping anti-jamming system, ensuring stable and secure communications.
Power supply:
Powered by a 3V CR123A battery , it offers up to 3 years of battery life , ensuring long life and reducing maintenance.

Technical data sheet

DS-PDCMK-EG2-WE
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 24mm × 104mm × 24.4mm 13mm × 34.4mm × 11.4mm
Weight 60g
Application Scenario Indoor
Detection Performance
Detection Method Opening Contact
Detection Gap 43 mm Max
Sensitivity Shock detection: 8 levels Tilt detection: Up to 25°
Features
Digital Processing Support
Tamper Protection Front
Environment Temperature Indicator Support
Signal Strength Indicator Support

Interfaces

Alarm Output Normally Closed; Normally Open; Impulse Count
Power Switch Power up enrolling
LED Indicator Green(MC), Orange(tilt), Red(shock), Blue(alarm)
Transmission
Transmission Technology Tri-X Wireless
Transmission Method Two-Way RF Wireless
Transmission Frequency 868MHz
Transmission Security AES-128 Encryption
Transmission Range(Free Space) 1.6 km
Frequency Hopping Support
Enrolling Method Power up; Remote ID; QR Code
Electrical Characteristics
Standard Battery Life Up to 3 years (standby time)
Power Supply Battery powered
Battery Type CR123A x 1
Typical Voltage 3V
