38212.54.NC | POWER SUPPLY FOR OPERATION OF THE DEVICE WITH PORTABLE BATTERIES

Ajax

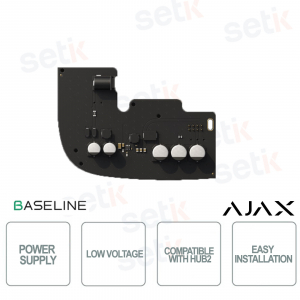

The Ajax 6V PSU, 38213.78.NC, is a professional power supply designed to ensure continuous operation of Ajax security systems using portable batteries, making it ideal for installations in locations completely devoid of electricity. Replacing the standard 110/230V power supply, it allows hubs and signal extenders to operate for up to 30 months without a power grid, ensuring 24/7 monitoring and protection of uninhabited homes, construction sites, warehouses, and remote locations. Full integration with the Ajax Jeweler ecosystem and high energy efficiency make it a reliable solution optimized for critical environments.

Main specifications:

- Powered by a portable battery with up to 30 months of battery life

- Compatibility with Hub and ReX Ajax Jeweler

- Optimized input voltage for 4.2–10 V batteries

- Stable output 4.8V ±5%

- Output current up to 1.5 A

- Quick internal installation to replace the 110/230V power supply

Further details

Compatibility:
The Ajax 6V PSU is designed to integrate seamlessly with the Hub (4G) Jeweller, Hub 2 (2G/4G) Jeweller, Hub 2 Plus Jeweller and the ReX 2 Jeweller signal extender, enabling the creation of comprehensive and reliable security systems even in remote locations, construction sites or buildings without power supply.
Input power :
The power supply supports an input voltage between 4.2 and 10 V DC , optimized for use with recommended portable batteries, ensuring high energy efficiency and intelligent management of on and off thresholds to maximize battery life of up to 30 months.
Output power :
The Ajax 6V PSU provides a stable output voltage of 4.8 V ±5% with a current of up to 1.5 A , ensuring continuous and reliable power supply to Ajax Hubs and Extenders even under conditions of variable load or prolonged use without mains power.

Technical data sheet

38213.78.NC
Input
Voltage 4.2–10 V⎓
Current 2.2 A at 4.2 V⎓
0.8 A at 10 V⎓
Turn-on voltage 4.2 V⎓ ± 0.5%
Turn-off voltage 3–3.4 V⎓
Depends on the load
Output
Voltage 4.8 V⎓ ± 3%
Current up to 1.5 A
Installation
Installation method into the hub or range extender enclosure by replacing the bundled power supply board
Operating temperature range from -10°C to +40°C
Operating humidity up to 75%
Connection to the power supply
Connector slot 6.5 × 2 mm
Power jack (female)
Connector 5.5 × 2.1 mm
Power jack (male)
Enclosure
Dimension 98 × 70 × 17 mm
3.9″ × 2.8″ × 0.67″
Weight 26 g
0.917 oz
Complete set 6V PSU (type A)
Terminal adapter
Quick start guide
Warranty 24 months
