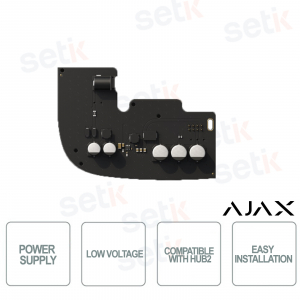

Ajax 6V PSU Battery Power Supply for Hub and ReX for Installations Without Electricity

Ajax 6V PSU Battery Power Supply for Hub and ReX for Installations Without Electricity


38213.78.NC # 38213 | Ajax 6V PSU is a power supply designed to enable continuous operation of Ajax security systems via portable battery, ideal for sites completely without electricity. It allows Hubs and signal extenders to operate for up to 30 months without a power grid, ensuring 24/7 protection for construction sites, uninhabited houses, warehouses and isolated areas. Power from an external battery , extended autonomy of up to 30 months , compatibility with Hubs and ReX Jeweller , quick internal installation , stable 4.8 V output , reliability in powerless environments make this module a professional solution for security in critical environments. Ajax

Technical Data Sheet

Reference: 38213.78.NC

Brand: Ajax Systems

EAN: 4823114015021

Disponibilità: 4

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Born in 2011, Ajax System produces alarm and fire systems with JEWELLER radio protocol, a wireless technolog that allows to connect with a few taps the detectors in the mobile app. The Ajax System security system is easy to install in your apartment, home or office. By choosing Ajax System, you get integrated protection that is easy to manage, tamper-resistant and responds instantly to attacks. Ajax  System devices are easy to be installed: just 15 seconds to connect the control panel to the detectors. They can also support third-party surveillance cameras, making Ajax System a singular security center.

[short_description] =>

Ajax SystemsAjax Systems

The alarm systems by Ajax System use a state-of-the-art wireless technology, thus making the devices very reliable and always connected. Ajax System detectors combine the best components with conceptual design.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => State-of-the-art alarm and fire systems - Ajax System [meta_keywords] => ajax system,ajax systems,system ajax ,ajax security system,ajax notification system [meta_description] => Alarm systems by Ajax System are innovative, reliable and user-friendly wireless devices. Find them all on Setik.biz [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


FREE TVCC SIGN!×


With all >> AJAX KITS

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38212.54.NC | POWER SUPPLY FOR OPERATION OF THE DEVICE WITH PORTABLE BATTERIES

Ajax

The Ajax 6V PSU, 38213.78.NC, is a professional power supply designed to ensure continuous operation of Ajax security systems using portable batteries, making it ideal for installations in locations completely devoid of electricity. Replacing the standard 110/230V power supply, it allows hubs and signal extenders to operate for up to 30 months without a power grid, ensuring 24/7 monitoring and protection of uninhabited homes, construction sites, warehouses, and remote locations. Full integration with the Ajax Jeweler ecosystem and high energy efficiency make it a reliable solution optimized for critical environments.

Main specifications:

- Powered by a portable battery with up to 30 months of battery life

- Compatibility with Hub and ReX Ajax Jeweler

- Optimized input voltage for 4.2–10 V batteries

- Stable output 4.8V ±5%

- Output current up to 1.5 A

- Quick internal installation to replace the 110/230V power supply

Further details

Compatibility:
The Ajax 6V PSU is designed to integrate seamlessly with the Hub (4G) Jeweller, Hub 2 (2G/4G) Jeweller, Hub 2 Plus Jeweller and the ReX 2 Jeweller signal extender, enabling the creation of comprehensive and reliable security systems even in remote locations, construction sites or buildings without power supply.
Input power :
The power supply supports an input voltage between 4.2 and 10 V DC , optimized for use with recommended portable batteries, ensuring high energy efficiency and intelligent management of on and off thresholds to maximize battery life of up to 30 months.
Output power :
The Ajax 6V PSU provides a stable output voltage of 4.8 V ±5% with a current of up to 1.5 A , ensuring continuous and reliable power supply to Ajax Hubs and Extenders even under conditions of variable load or prolonged use without mains power.

Technical data sheet

38213.78.NC
Input
Voltage 4.2–10 V⎓
Current 2.2 A at 4.2 V⎓
0.8 A at 10 V⎓
Turn-on voltage 4.2 V⎓ ± 0.5%
Turn-off voltage 3–3.4 V⎓
Depends on the load
Output
Voltage 4.8 V⎓ ± 3%
Current up to 1.5 A
Installation
Installation method into the hub or range extender enclosure by replacing the bundled power supply board
Operating temperature range from -10°C to +40°C
Operating humidity up to 75%
Connection to the power supply
Connector slot 6.5 × 2 mm
Power jack (female)
Connector 5.5 × 2.1 mm
Power jack (male)
Enclosure
Dimension 98 × 70 × 17 mm
3.9″ × 2.8″ × 0.67″
Weight 26 g
0.917 oz
Complete set 6V PSU (type A)
Terminal adapter
Quick start guide
Warranty 24 months
