XVR5108HE-I3/T - It is an 8-channel Penta-brid 5MP/1080P WizSense digital video recorder designed for advanced video surveillance systems, compatible with HDCVI, AHD, TVI, CVBS and IP up to 12 IP channels 6MP with input bandwidth up to 64 Mbps . It integrates advanced AI functions such as AcuPick on 2 channels , Perimeter Protection on 4 channels , Face Recognition on 2 channels and SMD Plus on 8 channels , ensuring precise detection of people and vehicles. It supports AI Coding, Smart H.265+ and H.265 , optimizing storage and bandwidth without losing detail. It features two-way audio on coaxial cable , HDMI and VGA Full HD outputs, 1 SATA HDD up to 16TB and a stable and reliable Embedded Linux system. Ideal solution for professional systems that require intelligent analysis, high compatibility and centralized security management. Dahua
INSTALLATEUR FINDEN

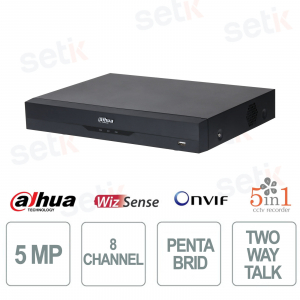

XVR5108HE-I3/T | PENTA-BRID 8 CHANNEL VIDEO RECORDER - TWO WAY TALK - WIZSENSE 5MP
The Dahua DH-XVR5108HE-I3/T is an 8-channel Penta-brid 5MP/1080P WizSense digital video recorder compatible with HDCVI, AHD, TVI, CVBS and up to 12 6MP IP channels with input bandwidth up to 64 Mbps , ideal for advanced video surveillance systems. It integrates AI functions such as AcuPick on 2 channels, Perimeter Protection on 4 channels, Face Recognition on 2 channels and SMD Plus on 8 channels , ensuring accurate detection of people and vehicles with reduction of false alarms. It supports AI Coding, Smart H.265+ and H.264 , optimizing storage and bandwidth. It has two-way audio on coaxial cable , HDMI and VGA Full HD outputs, 1 SATA HDD up to 16TB and a stable and high-performance Embedded Linux system.
Main specifications:
- 8 Channel Penta-brid 5MP/1080P
- Up to 12 IP Channels 6MP – 64 Mbps
- AcuPick 2CH
- Perimeter Protection 4CH
- Face Recognition 2CH
- SMD Plus 8CH
- AI Coding and Smart H.265+
- Two-way audio on coaxial
- 1 SATA HDD up to 16TB
- HDMI and VGA Full HD
Further details
✅ Number of Channels:
8CH Penta-brid 5MP/1080P with HDCVI, AHD, TVI, CVBS support and up to 12 6MP IP channels , input bandwidth up to 64 Mbps , ideal for highly integrated hybrid systems .
✅ Maximum resolution :
Up to 5MP on analog and 6MP on IP , with smooth 1080P recording and multi-stream management, optimized via AI Coding and Smart H.265+ / H.264 to reduce storage and bandwidth consumption .
✅ Two-Way Talk:
Bidirectional over coaxial cable (8 channels BNC) allowing direct communication between camera, recorder and client, with real-time audio for active security applications .
✅ AcuPick:
2-channel AI for intelligent search of people and vehicles within large volumes of recordings, dramatically improving investigation times .
✅ Perimeter Protection:
On 4 channels with Tripwire and Intrusion Detection , capable of filtering false alarms caused by environmental elements and accurately recognizing human and vehicle targets .
✅ Face Detection:
Advanced 2-channel with analysis of up to 6 facial attributes and intelligent snapshot management for access monitoring and attendance control .
✅ Face Recognition:
With databases of up to 10 archives and 10,000 faces , automatic real-time comparison for advanced security applications .
✅ Alarm:
Complete alarm system with motion detection management, intelligent alarms (Face, Perimeter, SMD Plus) , 8 inputs and 3 outputs, email notifications and multiple activations .
✅ Doors:
Professional ports with 8 BNC inputs, HDMI and VGA Full HD, 2 USB 2.0, RS-485, RJ-45 10/100 Mbps, 1 SATA up to 16TB , RCA audio inputs/outputs and alarm I/O.
✅ Network Protocol:
Full HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, ONVIF Profile S/G/T, SNMP, FTP, DDNS, P2P , compatible with Chrome/Edge/Safari browser and iOS/Android app for advanced remote management.
Full HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, ONVIF Profile S/G/T, SNMP, FTP, DDNS, P2P , compatible with Chrome/Edge/Safari browser and iOS/Android app for advanced remote management.
Technical data sheet
| XVR5108HE-I3/T | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AcuPick | |
| AcuPick AI by Recorder (Number of Channels) | 2 channels |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 12 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps. 2. TVI: 5MP(2560×1944)@20fps; 5MP(2960 × 1665)@20/25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Encoding Capability | Encode Enhancement disabled: Main stream: Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps); the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled: Main stream: Channels 1-4 5M-N@(1 fps–20 fps), others 5M-N@(1 fps–12 fps); (4 channels can be transformed to 5MP@6 fps); Channels 1-4 4M-N/1080p@(1 fps–25 fps), others 4M-N@(1 fps–15 fps)/1080p@(1 fps–12 fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps); Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 VGA, 1 HDMI VGA:1920×1080, 1280×1024, 1280×720 HDMI: 1920×1080, 1280×1024, 1280×720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent |
| Recording Playback | 1/4/9 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 8-channel RCA 8-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 8-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Alarm Input | 8 channels |
| Alarm Output | 3 channels |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7 w="" without="" hdd="" td=""> |
| Net Weight | 1.21 kg (2.67 lb) |
| Gross Weight | 1.85kg (4.08 lb) |

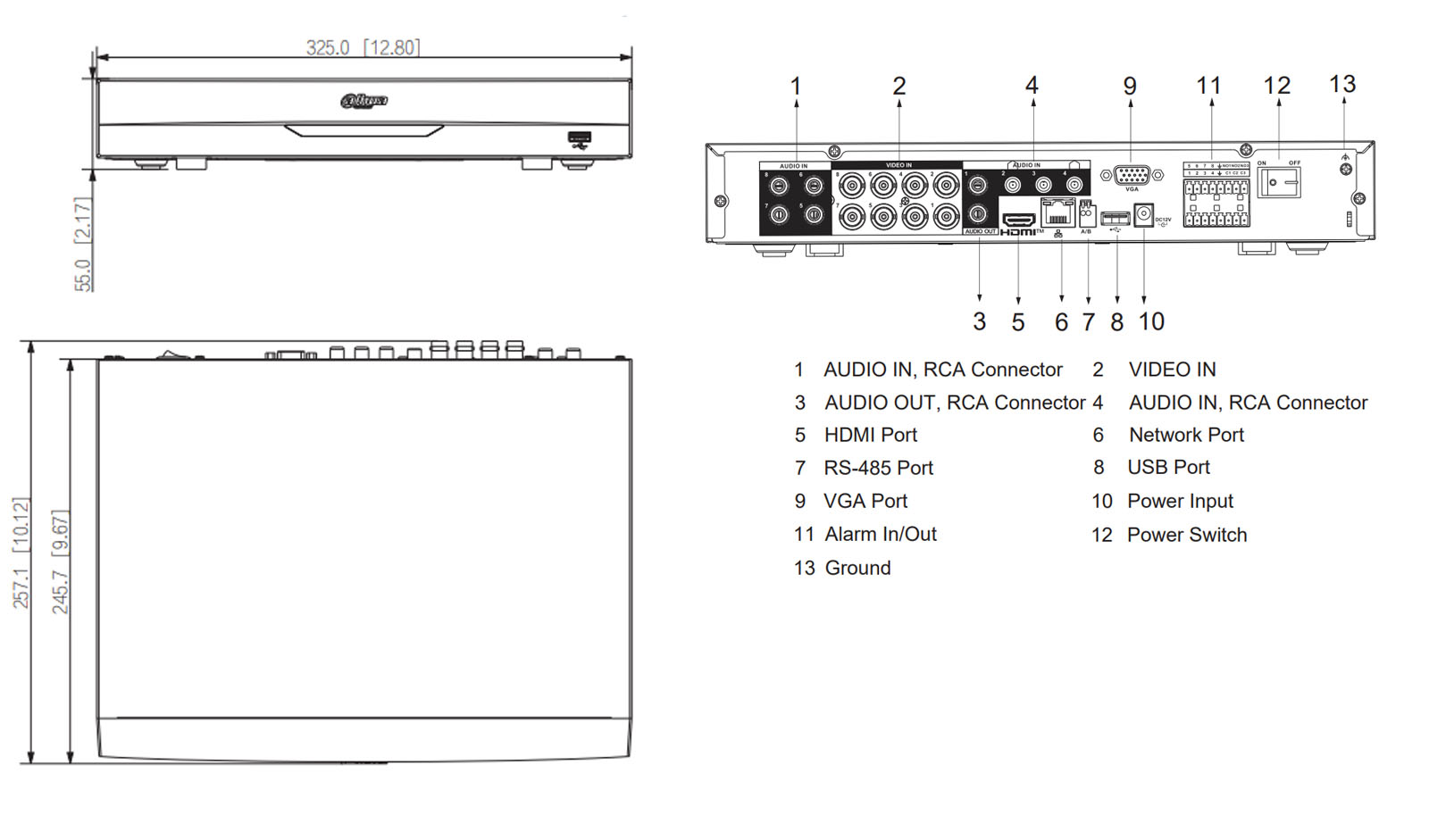

| Product Dimensions | 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H) |
| Packaging Dimensions | 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
