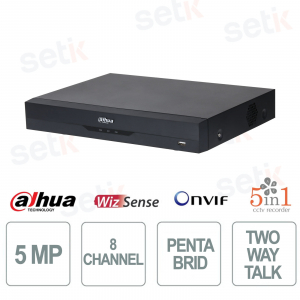

XVR5108HE-I3/T 8CH 5MP WizSense AI Penta-brid with AcuPick, Face Recognition and H.265+ - Dahua

XVR5108HE-I3/T 8CH 5MP WizSense AI Penta-brid with AcuPick, Face Recognition and H.265+ - Dahua
-56% New

XVR5108HE-I3/T - It is an 8-channel Penta-brid 5MP/1080P WizSense digital video recorder designed for advanced video surveillance systems, compatible with HDCVI, AHD, TVI, CVBS and IP up to 12 IP channels 6MP with input bandwidth up to 64 Mbps . It integrates advanced AI functions such as AcuPick on 2 channels , Perimeter Protection on 4 channels , Face Recognition on 2 channels and SMD Plus on 8 channels , ensuring precise detection of people and vehicles. It supports AI Coding, Smart H.265+ and H.265 , optimizing storage and bandwidth without losing detail. It features two-way audio on coaxial cable , HDMI and VGA Full HD outputs, 1 SATA HDD up to 16TB and a stable and reliable Embedded Linux system. Ideal solution for professional systems that require intelligent analysis, high compatibility and centralized security management. Dahua

Technical Data Sheet

Reference: XVR5108HE-I3/T

Brand: Dahua

EAN: 6937552414921

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


XVR5108HE-I3/T | PENTA-BRID 8 CHANNEL VIDEO RECORDER - TWO WAY TALK - WIZSENSE 5MP


Dahua

The Dahua DH-XVR5108HE-I3/T is an 8-channel Penta-brid 5MP/1080P WizSense digital video recorder compatible with HDCVI, AHD, TVI, CVBS and up to 12 6MP IP channels with input bandwidth up to 64 Mbps , ideal for advanced video surveillance systems. It integrates AI functions such as AcuPick on 2 channels, Perimeter Protection on 4 channels, Face Recognition on 2 channels and SMD Plus on 8 channels , ensuring accurate detection of people and vehicles with reduction of false alarms. It supports AI Coding, Smart H.265+ and H.264 , optimizing storage and bandwidth. It has two-way audio on coaxial cable , HDMI and VGA Full HD outputs, 1 SATA HDD up to 16TB and a stable and high-performance Embedded Linux system.

Main specifications:

- 8 Channel Penta-brid 5MP/1080P

- Up to 12 IP Channels 6MP – 64 Mbps

- AcuPick 2CH

- Perimeter Protection 4CH

- Face Recognition 2CH

- SMD Plus 8CH

- AI Coding and Smart H.265+

- Two-way audio on coaxial

- 1 SATA HDD up to 16TB

- HDMI and VGA Full HD

Further details

Number of Channels:
8CH Penta-brid 5MP/1080P with HDCVI, AHD, TVI, CVBS support and up to 12 6MP IP channels , input bandwidth up to 64 Mbps , ideal for highly integrated hybrid systems .
Maximum resolution :
Up to 5MP on analog and 6MP on IP , with smooth 1080P recording and multi-stream management, optimized via AI Coding and Smart H.265+ / H.264 to reduce storage and bandwidth consumption .
Two-Way Talk:
Bidirectional over coaxial cable (8 channels BNC) allowing direct communication between camera, recorder and client, with real-time audio for active security applications .
AcuPick:
2-channel AI for intelligent search of people and vehicles within large volumes of recordings, dramatically improving investigation times .
Perimeter Protection:
On 4 channels with Tripwire and Intrusion Detection , capable of filtering false alarms caused by environmental elements and accurately recognizing human and vehicle targets .
Face Detection:
Advanced 2-channel with analysis of up to 6 facial attributes and intelligent snapshot management for access monitoring and attendance control .
Face Recognition:
With databases of up to 10 archives and 10,000 faces , automatic real-time comparison for advanced security applications .
Alarm:
Complete alarm system with motion detection management, intelligent alarms (Face, Perimeter, SMD Plus) , 8 inputs and 3 outputs, email notifications and multiple activations .
Doors:
Professional ports with 8 BNC inputs, HDMI and VGA Full HD, 2 USB 2.0, RS-485, RJ-45 10/100 Mbps, 1 SATA up to 16TB , RCA audio inputs/outputs and alarm I/O.
Network Protocol:
Full HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, ONVIF Profile S/G/T, SNMP, FTP, DDNS, P2P , compatible with Chrome/Edge/Safari browser and iOS/Android app for advanced remote management.
XVR5108HE-I3-T dimensions

Technical data sheet

XVR5108HE-I3/T
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AcuPick
AcuPick AI by Recorder (Number of Channels) 2 channels
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD
SMD Plus by Recorder 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera 12 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
Audio and Video
Analog Camera Input 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560×1944)@20fps; 5MP(2960 × 1665)@20/25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
IP Camera Input Up to 12 channels of IPC access
4 IP channels by default + 8 channels (analog channels are converted to IP channels)
Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Encoding Capability Encode Enhancement disabled:
Main stream:
Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1fps–25/30fps);
the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
Channels 1-4 5M-N@(1 fps–20 fps), others 5M-N@(1 fps–12 fps); (4 channels can be transformed to 5MP@6 fps);
Channels 1-4 4M-N/1080p@(1 fps–25 fps), others 4M-N@(1 fps–15 fps)/1080p@(1 fps–12 fps);
1080N/720p/960H/D1/CIF@(1fps–25/30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 VGA, 1 HDMI
VGA:1920×1080, 1280×1024, 1280×720
HDMI: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection; intelligent
Recording Playback 1/4/9
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 8-channel RCA
8-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Coaxial two-way talk: 8-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Alarm Input 8 channels
Alarm Output 3 channels
Disk Interface 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 w="" without="" hdd="" td="">
Net Weight 1.21 kg (2.67 lb)
Gross Weight 1.85kg (4.08 lb)
Product Dimensions 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)
Packaging Dimensions 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
Certifications CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
