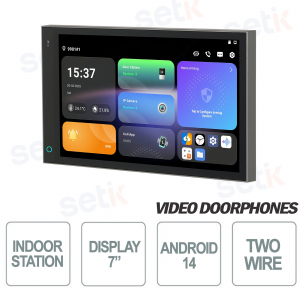

SCP3022A-B Smart Panel: 2-Wire IP Video Intercom with 7" Display and Android 14 System - Dahua

SCP3022A-B Smart Panel: 2-Wire IP Video Intercom with 7" Display and Android 14 System - Dahua

 
BEST SELLER -56% Neu

SCP3022A-B - The intelligent control panel offers an advanced experience thanks to the Android 14 system, ideal for managing video intercoms, video monitoring and alarms quickly and easily. Its 7" IPS display with full screen design and brightness sensor ensures a clear view at all times, while the integrated temperature and humidity detectors allow constant monitoring of the home environment. Compatible with IP, Wi-Fi and 2-Wire , it supports functions such as elevator call, DND mode and video recording on microSD up to 512 GB. Perfect for villas, apartments, hotels and offices looking for efficiency and technology. Dahua

Technical Data Sheet

Artikel-Nr.: SCP3022A-B

Marke: Dahua

EAN: 6937552406148

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SCP3022A-B | 2-WIRE IP SMART CONTROL PANEL


Dahua

The Dahua SCP3022A-B intelligent panel is the ideal solution for managing video intercoms, video monitoring and smart functions within homes, offices and hospitality facilities. Thanks to the Android 14 system, it offers a modern interface and supports third-party applications, while the 7" full-screen IPS display ensures a clear view with automatic brightness. It integrates temperature and humidity sensors, multicolor light indicators and automatic wake-up technology, ensuring intuitive control of the environment. Compatible with IP, Wi-Fi and 2-Wire , it supports microSD memory up to 512 GB and advanced functions such as DND, elevator call and wireless alarms.

Main specifications:

- Android 14 operating system with APK support

- 7" IPS display with up to 80° viewing angles

- Integrated light, temperature and humidity sensors

- IP / Wi-Fi / 2-Wire technology

- Video recording on microSD up to 512 GB

- Multi-color LED indicators with “breathing light” effect

- Two-way audio with noise reduction

- Compatible for villas, apartments, communities and hotels

Further details

✅ System:
 Based on Android 14 , it guarantees high performance, maximum compatibility with APK applications and a modern and intuitive interface; it uses an embedded processor optimized for smart control and management of advanced functions.

 ✅ Network Protocol :
 It supports major network protocols for secure and stable communications, including IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP , ensuring complete integration with video systems, VoIP and remote management platforms.
✅ Display:
 Equipped with a 7" IPS capacitive touchscreen with 1024×600 resolution, viewing angles up to 80° and automatically adjusted brightness via an integrated sensor; full-screen design with ultra-thin minimal black frame.

 ✅ Enhanced Signal :
 The 5 dBi omnidirectional antennas improve range and signal quality, ensuring a stable connection even in the presence of obstacles or interference. This structure allows for efficient transmission over large areas, ideal for home and professional environments.
✅ Audio :
 Advanced audio system with integrated speaker , two-way mode, G.711a/u and PCM encoding, microphone with echo suppression and digital noise reduction for clear and professional communications every time.
✅ Functions :
 Includes IP video intercom, video monitoring, wireless alarms, multi-color LED indicators with “breathing light” function, automatic wake-up when passing, temperature and humidity sensors, DND mode, elevator call support, video recording on microSD up to 512 GB and compatibility with IP/Wi-Fi/2-Wire.
✅ Wi-Fi :
 Stable wireless connectivity with IEEE 802.11 a/b/g/n/ac/ax standard, operating on 2.4 GHz frequency, ideal for smart installations without the need for complex wiring.
✅ Doors :
 Wide range of interfaces, including RS-485 , USB , 8 alarm inputs, 1 alarm output, 10/100 Mbps Ethernet port, 12V power output, as well as the possibility of connecting a doorbell via a dedicated input.

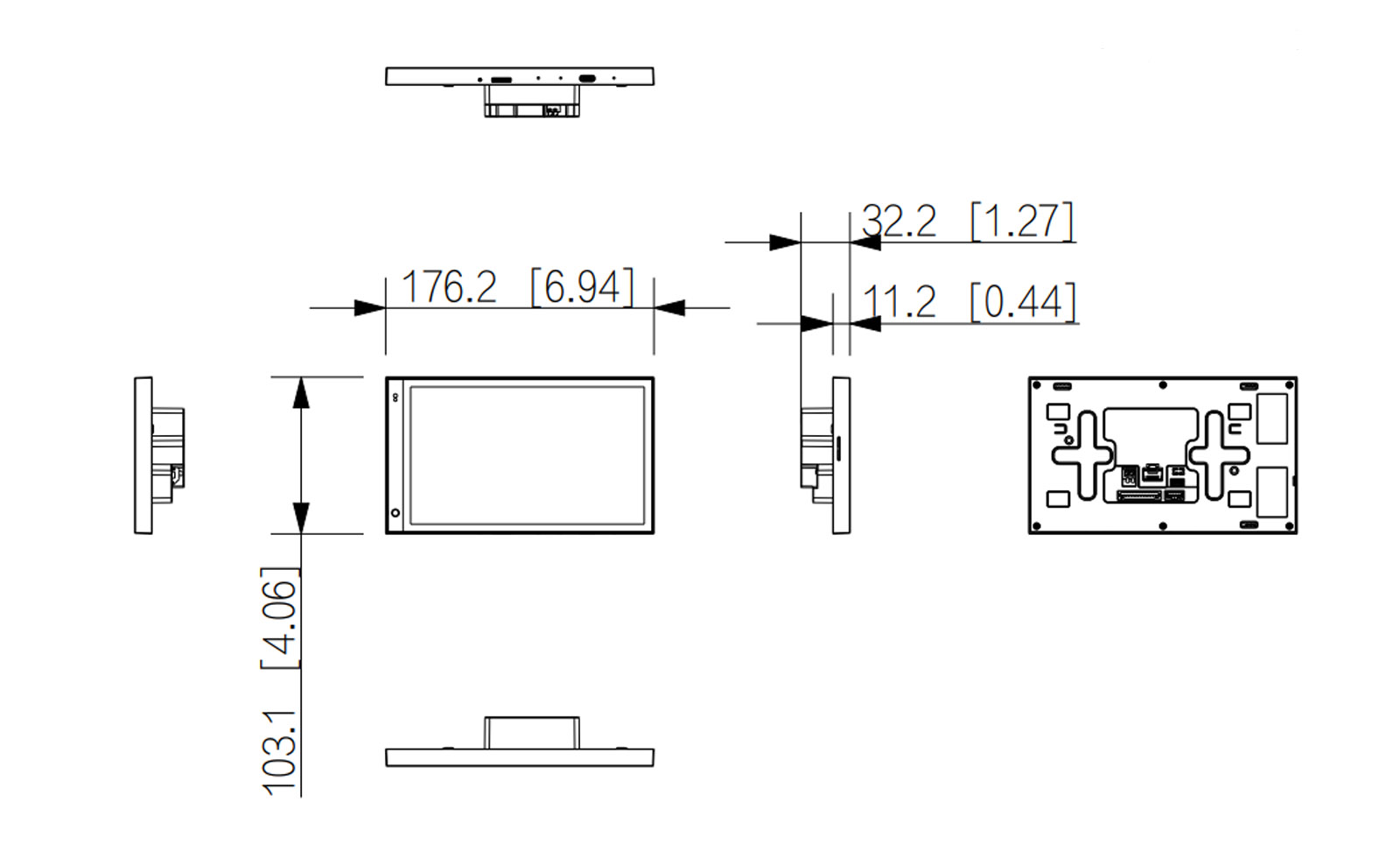

SCP3022A-B dimensions

Technical data sheet

Model SCP3022A-B
System
Main Processor Embedded processor
Operating System Android 14
Network Protocol IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP
Basic
Screen Type Capacitive Touchscreen
Display Screen 7-inch display screen
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Function
Communication Mode Full digital
Information Release Receive and view the published information from the management center
Elevator Control Residents can call the elevator through this device to their floor.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
DND Mode Do not disturb period can be set
Number of Extensions Villa: 1 main VTH and 9 extensions
Apartment: 1 main VTH and 4 extensions
Storage Supports micro SD card storage (up to 512 GB)
Network
Wi-Fi Yes
Wireless Standard IEEE 802.11a/b/g/n/ac/ax
Wireless Frequency Range 2.4 GHz
Port
RS-485 1
USB 1
Alarm Input 8 channels
Alarm Output 1 channel
Power Output 1 port (12 V, 200 mA)
Door Bell Yes (use the alarm input port)
Network Port 1 x RJ45 10M/100M network port
Performance
Casing Material PC + ABS
General
Appearance color Gray
Power Supply 48 VDC, 0.5 A
PoE Standard
Power Adapter Optional
Installation Flush mount
Certifications THERE IS
Accessory Included: RS-485 and power output cable, bracket and alarm cable.
Optional: Power cord
Product Dimensions 176.2 mm × 103.1 mm × 32.2 mm (6.94" × 4.06" × 1.27") (H × W × D)
Operating Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Below 3,000 m (9,842.52 ft)
Power Consumption ≤ 10 W (standby), ≤ 14 W (working)
Net Weight 775 g (1.71 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%
Operating Environment Indoor
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
