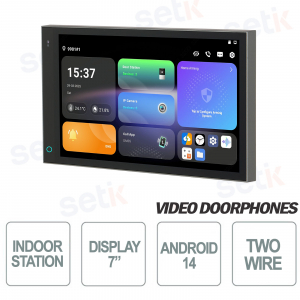

SCP3022A-B | 2-WIRE IP SMART CONTROL PANEL


Dahua

The Dahua SCP3022A-B intelligent panel is the ideal solution for managing video intercoms, video monitoring and smart functions within homes, offices and hospitality facilities. Thanks to the Android 14 system, it offers a modern interface and supports third-party applications, while the 7" full-screen IPS display ensures a clear view with automatic brightness. It integrates temperature and humidity sensors, multicolor light indicators and automatic wake-up technology, ensuring intuitive control of the environment. Compatible with IP, Wi-Fi and 2-Wire , it supports microSD memory up to 512 GB and advanced functions such as DND, elevator call and wireless alarms.

Main specifications:

- Android 14 operating system with APK support

- 7" IPS display with up to 80° viewing angles

- Integrated light, temperature and humidity sensors

- IP / Wi-Fi / 2-Wire technology

- Video recording on microSD up to 512 GB

- Multi-color LED indicators with “breathing light” effect

- Two-way audio with noise reduction

- Compatible for villas, apartments, communities and hotels

Further details

System:
Based on Android 14 , it guarantees high performance, maximum compatibility with APK applications and a modern and intuitive interface; it uses an embedded processor optimized for smart control and management of advanced functions.

Network Protocol :
It supports major network protocols for secure and stable communications, including IPv4, RTSP, UDP, DNS, FTP, RTP, TCP and SIP , ensuring complete integration with video systems, VoIP and remote management platforms.
Display:
Equipped with a 7" IPS capacitive touchscreen with 1024×600 resolution, viewing angles up to 80° and automatically adjusted brightness via an integrated sensor; full-screen design with ultra-thin minimal black frame.

Enhanced Signal :
The 5 dBi omnidirectional antennas improve range and signal quality, ensuring a stable connection even in the presence of obstacles or interference. This structure allows for efficient transmission over large areas, ideal for home and professional environments.
Audio :
Advanced audio system with integrated speaker , two-way mode, G.711a/u and PCM encoding, microphone with echo suppression and digital noise reduction for clear and professional communications every time.
Functions :
Includes IP video intercom, video monitoring, wireless alarms, multi-color LED indicators with “breathing light” function, automatic wake-up when passing, temperature and humidity sensors, DND mode, elevator call support, video recording on microSD up to 512 GB and compatibility with IP/Wi-Fi/2-Wire.
Wi-Fi :
Stable wireless connectivity with IEEE 802.11 a/b/g/n/ac/ax standard, operating on 2.4 GHz frequency, ideal for smart installations without the need for complex wiring.
Doors :
Wide range of interfaces, including RS-485 , USB , 8 alarm inputs, 1 alarm output, 10/100 Mbps Ethernet port, 12V power output, as well as the possibility of connecting a doorbell via a dedicated input.
SCP3022A-B dimensions

Technical data sheet

Model SCP3022A-B
System
Main Processor Embedded processor
Operating System Android 14
Network Protocol IPv4;RTSP;UDP;DNS;FTP;RTP;TCP;SIP
Basic
Screen Type Capacitive Touchscreen
Display Screen 7-inch display screen
Screen Resolution 1024 (H) × 600 (V)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode Two-way audio
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Function
Communication Mode Full digital
Information Release Receive and view the published information from the management center
Elevator Control Residents can call the elevator through this device to their floor.
Leave Videos Yes (SD card is inserted in the indoor monitor or door station)
DND Mode Do not disturb period can be set
Number of Extensions Villa: 1 main VTH and 9 extensions
Apartment: 1 main VTH and 4 extensions
Storage Supports micro SD card storage (up to 512 GB)
Network
Wi-Fi Yes
Wireless Standard IEEE 802.11a/b/g/n/ac/ax
Wireless Frequency Range 2.4 GHz
Port
RS-485 1
USB 1
Alarm Input 8 channels
Alarm Output 1 channel
Power Output 1 port (12 V, 200 mA)
Door Bell Yes (use the alarm input port)
Network Port 1 x RJ45 10M/100M network port
Performance
Casing Material PC + ABS
General
Appearance color Gray
Power Supply 48 VDC, 0.5 A
PoE Standard
Power Adapter Optional
Installation Flush mount
Certifications THERE IS
Accessory Included: RS-485 and power output cable, bracket and alarm cable.
Optional: Power cord
Product Dimensions 176.2 mm × 103.1 mm × 32.2 mm (6.94" × 4.06" × 1.27") (H × W × D)
Operating Temperature -10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–95% (RH), non-condensing
Operating Altitude Below 3,000 m (9,842.52 ft)
Power Consumption ≤ 10 W (standby), ≤ 14 W (working)
Net Weight 775 g (1.71 lb)
Storage Temperature 0 °C to +40 °C (+32 °F to +104 °F)
Storage Humidity 30%–75%
Operating Environment Indoor
