IPC-HDW1339DA-SW-PV | 3MP Wi-Fi Dome Camera with 2.8mm Fixed Lens and Intelligent Detection


Dahua

The Dahua IPC-HDW1339DA-SW-PV is a 3MP Wi-Fi turret camera with a 2.8mm fixed lens, ideal for residential and commercial environments. Easy to install thanks to its wireless connection and Bluetooth pairing, it offers intelligent surveillance with AI for human and vehicle detection, dual IR and white light illumination, two-way audio, and IP67 outdoor protection.

Main specifications:

- 3MP resolution with 1/2.8” CMOS sensor

- 2.8mm fixed optics (123° angle)

- AI detection of people and vehicles

- Smart Dual Light illumination (IR + warm light) up to 30 m

- Wi-Fi 6 + Bluetooth fast pairing

- Integrated two-way audio

- IP67 protection and color night vision

- MicroSD support up to 256 GB

Further details

Resolution:
The camera integrates a 1/2.8" CMOS sensor that can record videos up to 2304 × 1296 pixels. The images are sharp, detailed and suitable for both day and night surveillance thanks to high sensitivity in low light conditions.
Optics :
The model is available with a fixed 2.8 mm lens, which offers a wide viewing angle (up to 123° diagonal). This allows you to cover more area with a single camera, making it perfect for shops, entrances, corridors, and common areas.
Wi-Fi 6 (802.11ax) :
Wi-Fi 6 technology ensures a faster, more stable, and interference-resistant wireless connection. It's ideal for environments with multiple connected devices or for home and business installations where network stability is crucial.

Human Detection:
Thanks to built-in artificial intelligence, the camera can distinguish people from false alarms caused by animals, leaves, or changes in light. This increases surveillance effectiveness and reduces unwanted notifications.
Vehicle Detection:
The AI system can also detect the presence and movement of vehicles. This function is useful for monitoring parking areas, driveways, or loading/unloading areas, contributing to intelligent perimeter control.
Smart Dual Light:
The built-in dual illumination (IR LEDs and warm light) allows you to record black and white video with infrared or color even at night, activating the white light only when motion is detected. This system optimizes image quality while reducing light pollution.

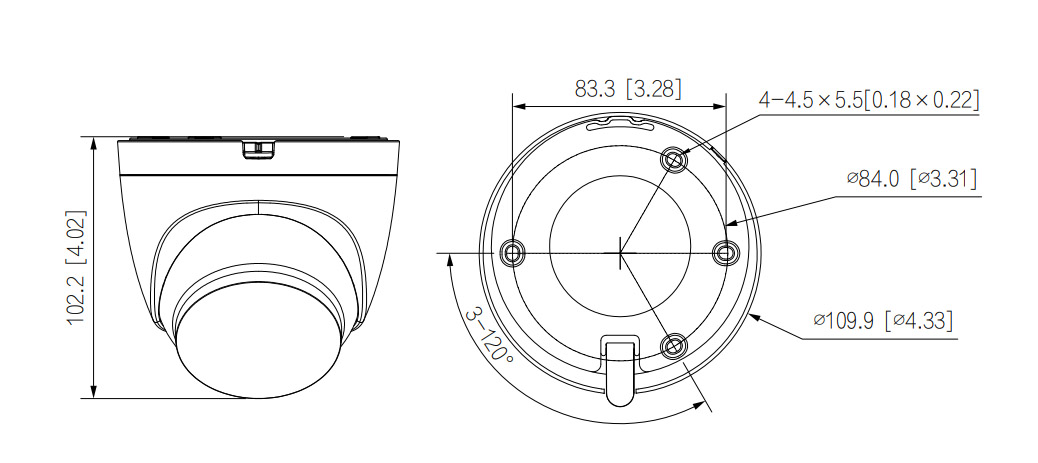

IPC-HDW1339DA-SW-PV dimensions

Technical data sheet

Model IPC-HDW1339DA-SW-PV
Room
Image Sensor 1/2.8" CMOS
Effective Pixel 2304 (H) × 1296 (V)
Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (illuminator on)

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens Type Motorized vari-focal
Focal Length 2.8mm
Max. Openings F1.6
Field of View H: 103°; V: 55°; D: 123°
Intelligence
Human Detection Yes
Vehicle Detection Yes
Audio and Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
Video Frame Rate

Main stream: 2304 × 1296@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 32 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
WDR DWDR
Image Rotation 0°/180°
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
Interoperability ONVIF (Profile S & Profile G & Profile T); CGI
Wi-Fi Pairing Bluetooth pairing
Storage Micro SD card (support max. 256GB)
Management Software Smart PSS Lite; DSS; DMSS
Mobile Phone iOS; Android
General
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
Power Supply 12 VDC
Power Consumption Basic: 2.1 W (12 VDC);
Max.: 7.1 W (12 VDC) (H.265 + warm light on+ sound and light alarm)
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Protection IP67
Camera Button Reset button
Casing Metal + plastic
Dimensions 102.2 mm × Φ109.9 mm (4.02" × Φ4.33")
Net Weight 0.32 kg (0.71 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
