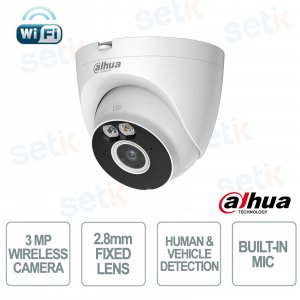

IPC-HDW1339DA-SW-PV | 3MP Wi-Fi Dome Camera with 2.8mm Fixed Lens and Intelligent Detection

The Dahua IPC-HDW1339DA-SW-PV is a 3MP Wi-Fi turret camera with a 2.8mm fixed lens, ideal for residential and commercial environments. Easy to install thanks to its wireless connection and Bluetooth pairing, it offers intelligent surveillance with AI for human and vehicle detection, dual IR and white light illumination, two-way audio, and IP67 outdoor protection.
Main specifications:
- 3MP resolution with 1/2.8” CMOS sensor
- 2.8mm fixed optics (123° angle)
- AI detection of people and vehicles
- Smart Dual Light illumination (IR + warm light) up to 30 m
- Wi-Fi 6 + Bluetooth fast pairing
- Integrated two-way audio
- IP67 protection and color night vision
- MicroSD support up to 256 GB
Further details
✅ Human Detection:

Technical data sheet
Model | IPC-HDW1339DA-SW-PV |
Room | |
Image Sensor | 1/2.8" CMOS |
Effective Pixel | 2304 (H) × 1296 (V) |
Min. Illumination |
0.005 lux@F1.6 (Color, 30 IRE) |
Illumination Distance |
Up to 30 m (98.43 ft) (IR) |
Illuminator Number |
1 (IR LED); 1 (Warm light) |
Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens Type | Motorized vari-focal |
Focal Length | 2.8mm |
Max. Openings | F1.6 |
Field of View | H: 103°; V: 55°; D: 123° |
Intelligence | |
Human Detection | Yes |
Vehicle Detection | Yes |
Audio and Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
Video Frame Rate |
Main stream: 2304 × 1296@(1–25/30 fps) |
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 32 kbps–6144 kbps |
Day/Night | Auto (ICR)/Color/B/W |
WDR | DWDR |
Image Rotation | 0°/180° |
Built-in MIC | Yes, built-in dual Mic |
Built-in Speaker | Yes, built-in speaker |
Audio Compression | G.711a; G.711Mu; PCM |
Network | |
Network Port | RJ-45 (10/100 Base-T) |
Wi-Fi | IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm |
Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
Wi-Fi Pairing | Bluetooth pairing |
Storage | Micro SD card (support max. 256GB) |
Management Software | Smart PSS Lite; DSS; DMSS |
Mobile Phone | iOS; Android |
General | |
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU |
Power Supply | 12 VDC |
Power Consumption | Basic: 2.1 W (12 VDC); Max.: 7.1 W (12 VDC) (H.265 + warm light on+ sound and light alarm) |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤95% (RH), non-condensing |
Protection | IP67 |
Camera Button | Reset button |
Casing | Metal + plastic |
Dimensions | 102.2 mm × Φ109.9 mm (4.02" × Φ4.33") |
Net Weight | 0.32 kg (0.71 lb) |
