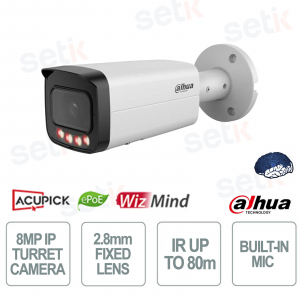

WizMind 8MP Bullet Camera 2.8mm with Smart Dual Light and AI AcuPick IP67 IK10 Professional Camera - Dahua
IN DER FÖRDERUNG
-56%
Neu
IPC-HFW5859T-ASE-IL - Camera with 2.8 mm lens is an 8MP bullet camera designed to offer ultra-clear images thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The wide viewing angle of up to 110° ensures extended coverage, while Smart Dual Light technology combines IR and warm light for intelligent night vision up to 80 m. Equipped with Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , it ensures precise video analysis and reduction of false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated audio and alarm support. The rugged structure with IP67 and IK10 protection makes it ideal for professional installations in outdoor environments. Dahua
INSTALLATEUR FINDEN
IPC-HFW5859T-ASE-IL | 8MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE
The Dahua IPC-HFW5859T-ASE-IL with 2.8 mm lens is a high-performance 8MP bullet camera designed to ensure ultra-clear images thanks to the 1/1.8” 8MP CMOS sensor with a resolution of up to 3840×2160. The wide viewing angle of up to 110° ensures effective coverage, while Smart Dual Light technology combines IR and warm light for intelligent night vision up to 80 m. Integrating Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , it offers precise video analytics and false alarm reduction. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated audio and alarm management. The rugged structure with IP67 and IK10 protection guarantees reliability even in harsh outdoor environments.
Main specifications:
- 8MP CMOS 1/1.8” sensor with resolution up to 3840×2160 for ultra-sharp images
- 2.8mm fixed optics with up to 110° viewing angle for wide coverage
- Smart Dual Light technology with IR up to 80 m and warm light up to 60 m
- Advanced Artificial Intelligence: AcuPick, Face Detection, Perimeter Protection and People Counting
- Xinghan Large-Scale AI Models-Vision for Intelligent Analysis and Advanced Recognition
- Smart H.265+/AI H.265 compression for bandwidth and storage optimization
- Built-in microphone and audio/alarm support for active safety
- IP67 and IK10 protection resistant to dust, water and vandalism
Further details
✅ Optics :
Equipped with a 2.8 mm fixed lens with a wide viewing angle of up to 110° , it guarantees extensive and detailed coverage of the monitored areas, ideal for professional video surveillance installations.
✅ Resolution:
It integrates an 8MP CMOS 1/1.8” sensor capable of offering ultra high definition images up to 3840×2160 at 30 fps , ensuring maximum sharpness and precision of details.
✅ Xinghan Large-Scale AI Models-Vision :
Leverage advanced large-scale AI models with NPU power and edge processing , enhancing recognition, scene analysis, and intelligent video data management capabilities.✅ Artificial Intelligence :
It supports advanced functions such as AcuPick, Face Detection, Perimeter Protection and People Counting , offering advanced video analytics , target classification and drastic reduction of false alarms.✅ WizColor Technology:
Thanks to the combination of AI-ISP and high sensitivity sensor , it enables color images even in low light conditions , improving visibility and night quality.✅ Built-in microphone:
It has a built-in microphone with support for various audio codecs, allowing for ambient audio capture for more complete security.✅ Alarm :
It integrates alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with advanced alert management for active protection.
It integrates alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with advanced alert management for active protection.
✅ Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF and P2P protocols, it supports up to 4 video streams and full integration into IP video surveillance systems.✅ Functions:
It includes advanced technologies such as WDR 120 dB, 3D NR, Smart Dual Light, ROI and AI Coding , ensuring optimized images and high performance in every operating scenario.
✅ Doors :
Equipped with RJ-45 port, audio and alarm inputs/outputs , as well as MicroSD support up to 1 TB , ensuring maximum connection and storage flexibility.
Technical data sheet
| MODEL | IPC-HFW5859T-ASE-IL |
| Room | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0008 lux@F1.6(Color, 30IRE) 0.0004 lux@F1.6 (B/W, 30IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Illumination Distance | Up to 80 m (262.47 ft) (IR) Up to 60 m (196.85 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 110°; V: 56°; D: 134° |
| Iris Control | Fixed |
| Close Focus Distance | 2.1 m (6.89 ft) |
| Intelligence | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms. |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle. Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1280 × 720@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Streaming Capability | 4 stream |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR |
| Video Bit Rate | H.264: 3 kbps–16384kbps; H.265: 3 kbps–16384kbps; |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Smart Dual Light | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 mosaics or 8 color blocks |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
| Network | |
| Network | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S/Profile G/Profile T/Profile M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1TB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | DSS; DMSS; DoLynk Care |
| Mobile Client | Android; iOS |
| Cyber Security | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Function | |
| Sound Warning | Offers 11 sound alarms and supports importing 10 custom sound alarms. Sound: 0–100 Play times can be set from 1 to 10. |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.2W (12VDC); 6.3W (PoE) Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Anti-corrosion Level | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |

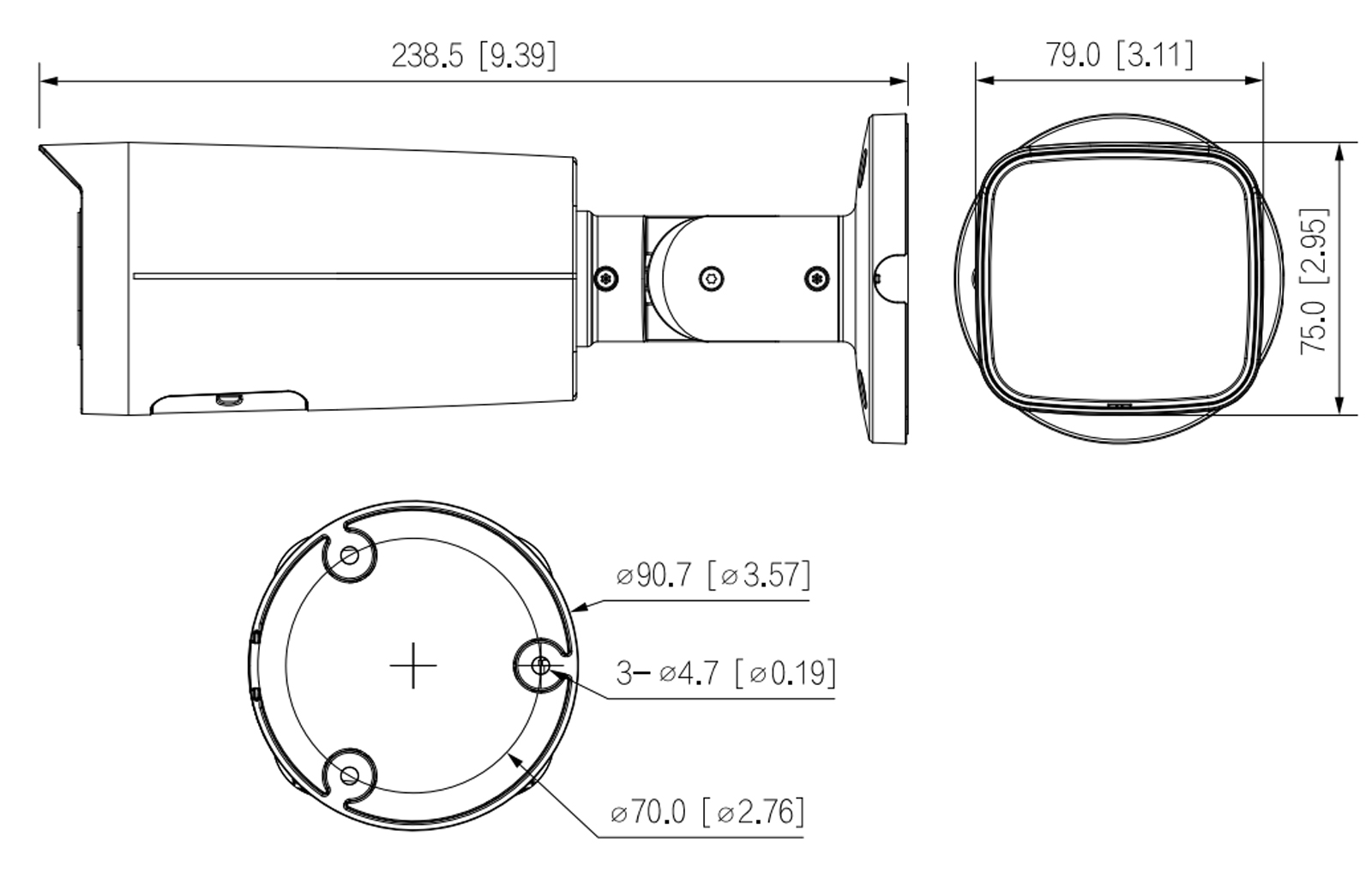

| Product Dimensions | 238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L × W × H) |
| Net Weight | 835 g (1.84 lb) |
| Gross Weight | 1090 g (2.4 lb) |
