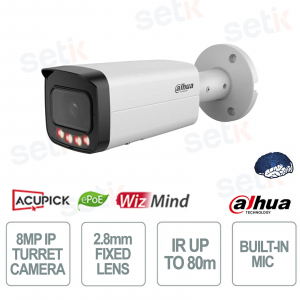

WizMind 8MP Bullet Camera 2.8mm with Smart Dual Light and AI AcuPick IP67 IK10 Professional Camera - Dahua

WizMind 8MP Bullet Camera 2.8mm with Smart Dual Light and AI AcuPick IP67 IK10 Professional Camera - Dahua
IN PROMOTION -56% New

IPC-HFW5859T-ASE-IL - Camera with 2.8 mm lens is an 8MP bullet camera designed to offer ultra-clear images thanks to the 1/1.8” 8MP CMOS sensor with resolution up to 3840×2160. The wide viewing angle of up to 110° ensures extended coverage, while Smart Dual Light technology combines IR and warm light for intelligent night vision up to 80 m. Equipped with Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , it ensures precise video analysis and reduction of false alarms. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated audio and alarm support. The rugged structure with IP67 and IK10 protection makes it ideal for professional installations in outdoor environments. Dahua

Technical data sheet

Reference: IPC-HFW5859T-ASE-IL

Brand: Dahua

EAN: 6937552413498

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


IPC-HFW5859T-ASE-IL | 8MP IP BULLET CAMERA WITH 2.8mm FIXED LENS - ARTIFICIAL INTELLIGENCE - POE

Dahua

The Dahua IPC-HFW5859T-ASE-IL with 2.8 mm lens is a high-performance 8MP bullet camera designed to ensure ultra-clear images thanks to the 1/1.8” 8MP CMOS sensor with a resolution of up to 3840×2160. The wide viewing angle of up to 110° ensures effective coverage, while Smart Dual Light technology combines IR and warm light for intelligent night vision up to 80 m. Integrating Xinghan AI and advanced functions such as AcuPick, Face Detection and Perimeter Protection , it offers precise video analytics and false alarm reduction. Smart H.265+/AI H.265 compression optimizes bandwidth and storage, with integrated audio and alarm management. The rugged structure with IP67 and IK10 protection guarantees reliability even in harsh outdoor environments.

Main specifications:

- 8MP CMOS 1/1.8” sensor with resolution up to 3840×2160 for ultra-sharp images

- 2.8mm fixed optics with up to 110° viewing angle for wide coverage

- Smart Dual Light technology with IR up to 80 m and warm light up to 60 m

- Advanced Artificial Intelligence: AcuPick, Face Detection, Perimeter Protection and People Counting

- Xinghan Large-Scale AI Models-Vision for Intelligent Analysis and Advanced Recognition

- Smart H.265+/AI H.265 compression for bandwidth and storage optimization

- Built-in microphone and audio/alarm support for active safety

- IP67 and IK10 protection resistant to dust, water and vandalism

Further details

Optics :
Equipped with a 2.8 mm fixed lens with a wide viewing angle of up to 110° , it guarantees extensive and detailed coverage of the monitored areas, ideal for professional video surveillance installations.
Resolution:
It integrates an 8MP CMOS 1/1.8” sensor capable of offering ultra high definition images up to 3840×2160 at 30 fps , ensuring maximum sharpness and precision of details.
Xinghan Large-Scale AI Models-Vision :
Leverage advanced large-scale AI models with NPU power and edge processing , enhancing recognition, scene analysis, and intelligent video data management capabilities.
Artificial Intelligence :
It supports advanced functions such as AcuPick, Face Detection, Perimeter Protection and People Counting , offering advanced video analytics , target classification and drastic reduction of false alarms.
WizColor Technology:
Thanks to the combination of AI-ISP and high sensitivity sensor , it enables color images even in low light conditions , improving visibility and night quality.
Built-in microphone:
It has a built-in microphone with support for various audio codecs, allowing for ambient audio capture for more complete security.
Alarm :
It integrates alarm inputs/outputs and numerous intelligent events such as intrusion, motion and anomalies, with advanced alert management for active protection.
Network Camera:
Compatible with IPv4/IPv6, RTSP, ONVIF and P2P protocols, it supports up to 4 video streams and full integration into IP video surveillance systems.

Functions:
It includes advanced technologies such as WDR 120 dB, 3D NR, Smart Dual Light, ROI and AI Coding , ensuring optimized images and high performance in every operating scenario.
Doors :
Equipped with RJ-45 port, audio and alarm inputs/outputs , as well as MicroSD support up to 1 TB , ensuring maximum connection and storage flexibility.
IPC-HFW5859T-ASE-IL dimensions

Technical data sheet

MODEL IPC-HFW5859T-ASE-IL
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.0008 lux@F1.6(Color, 30IRE)
0.0004 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance Up to 80 m (262.47 ft) (IR)
Up to 60 m (196.85 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View H: 110°; V: 56°; D: 134°
Iris Control Fixed
Close Focus Distance 2.1 m (6.89 ft)
Intelligence
EPTZ Yes
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
AI Coding AI H.265, AI H.264
*Includes smart codec technology, Smart H.265+ and Smart H.264+
Video Frame Rate Main stream: 3840 × 2160@(1 fps–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1280 × 720@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Streaming Capability 4 stream
Resolution 8M (3840 × 2160); 6M (3072 × 2048/3200 × 1800); 5M (3072 × 1728/2592 × 1944/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control VBR; CBR
Video Bit Rate H.264: 3 kbps–16384kbps;
H.265: 3 kbps–16384kbps;
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)
Mirror Yes
Privacy Masking 4 mosaics or 8 color blocks
LDC Yes
Audio
Built-in MIC Yes, built-in Mic
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
Interoperability ONVIF (Profile S/Profile G/Profile T/Profile M); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 1TB); NAS
Browser IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later
Management Software DSS; DMSS; DoLynk Care
Mobile Client Android; iOS
Cyber Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Sound Warning Offers 11 sound alarms and supports importing 10 custom sound alarms.
Sound: 0–100
Play times can be set from 1 to 10.
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%); PoE+ (802.3at); ePoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption Basic: 4.2W (12VDC); 6.3W (PoE)
Max. (H.265 + WDR+ warm light + intelligence on): 13.3 W (12 VDC); 15.6W (PoE)
ePoE Yes
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Anti-corrosion Level Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Structure
Casing Material Metal
Product Dimensions 238.0 mm × 90.7 mm × 90.7 mm (9.37" × 3.57" × 3.57") (L × W × H)
Net Weight 835 g (1.84 lb)
Gross Weight 1090 g (2.4 lb)
