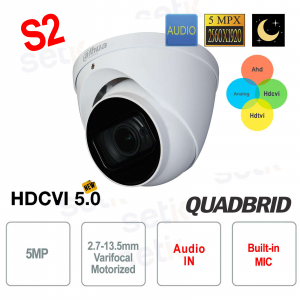

Dahua 5MP Eyeball Camera with 2.7–13.5mm Lens and 120dB WDR IP67

Dahua 5MP Eyeball Camera with 2.7–13.5mm Lens and 120dB WDR IP67
-57%

The HAC-HDW2501T-ZA-S2 is a 5MP HDCVI eyeball camera with a 2.7–13.5 mm F1.6 motorized lens, designed to ensure high-definition images in any condition. Thanks to true 120 dB WDR, Smart IR up to 60 m , and 3D NR, it ensures optimal visibility even in high-contrast or low-light environments. It supports video, audio, data, and power transmission over a single coaxial cable and allows switching between CVI/TVI/AHD/CVBS for maximum compatibility. Rugged and IP67 certified, it is ideal for professional outdoor and indoor installations. Dahua

Technical Data Sheet

Artikel-Nr.: HAC-HDW2501T-Z-A-S2

Marke: Dahua

EAN: 6939554946585

Disponibilità: 1

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HDW2501T-ZA-S2 | 5MP EYEBALL 4IN1 MOTORIZED CAMERA - STARLIGHT IR 60METERS AUDIO WDR


Dahua

The Dahua HAC-HDW2501T-ZA-S2 is a 5MP eyeball camera with a 2.7–13.5 mm motorized lens and F1.6 aperture, perfect for high-definition video surveillance in both indoor and outdoor environments. Thanks to HDCVI technology, it allows simultaneous transmission of video, audio, data and power over a single coaxial cable, simplifying installation. With IR night vision up to 60 m, true WDR 120 dB, CVI/TVI/AHD/CVBS switch and IP67 vandal-proof protection, it ensures clear images and maximum reliability even in difficult environmental conditions .

Main specifications:

- 5MP resolution at 25fps (2880×1620)

- Motorized optics 2.7–13.5 mm, H angle 31.4°–113°

- IR up to 60m with Smart IR and 3D NR

- 4 signals on 1 coaxial cable: video, audio, data, power

- Switchable CVI/TVI/AHD/CVBS video output

- IP67 protection and IK10 vandal resistance

Further details

Resolution:
The camera delivers high-definition images with a maximum resolution of 5MP (2880×1620) at 25 fps in a 16:9 format. The 1/2.7" CMOS sensor ensures sharp details and a clear view, perfect for environments that require high shooting precision.
Optics :
Equipped with a 2.7–13.5 mm vari-focal motorized lens , with F1.6 aperture and autofocus, it allows flexible adjustment of the viewing angle (H: from 31.4° to 113°). This versatility allows surveillance to be adapted to large or narrow spaces with equal effectiveness.
4 signals on 1 coaxial cable :
HDCVI technology allows the simultaneous transmission of video, audio, data, and power over a single coaxial cable. This reduces costs and simplifies installation, while also offering features such as remote control via XVR and PoC support for direct power.
Long distance transmission :
It supports real-time and lossless transmission up to 700m (4K/4MP resolution) via RG6 cable and up to 300m via UTP cable , ideal for distributed installations over large areas. Signal quality is maintained stable even over long distances, according to tests carried out in Dahua laboratories .
Wide Dynamic Range (WDR) :
Thanks to 120dB True WDR technology, the camera perfectly handles high-contrast scenes, balancing highlights and shadows in a single frame. This ensures clear images even in backlit situations, bright entrances, or unevenly lit environments.
Protection :
Designed for outdoor use, the camera is IP67 certified to resist rain and dust, and IK10 against vandalism. It operates over a wide temperature range (-30°C ~ +60°C) and resists voltage fluctuations (±30%) and electrical discharges up to 4kV, ensuring maximum reliability in harsh environments.
Detailed diagram with dimensions of the Dahua HAC-HDW2501T-Z-A camera

Technical data sheet

Model

HAC-HDW2501T-ZA-S2

Room
Image Sensor 1/2.7" CMOS
Effective Pixels 2880 (H) × 1620 (V), 5MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

Min. Illumination

0.001 Lux/F1.6; 30IRE; 0 Lux IR on

S/N Ratio >65dB
IR Distance 60 m (196.9 ft)
IR On/Off Control Auto; manual
IR LEDs 2
Lens
Lens Type Motorized lens / Fixed iris
Auto Focus Yes
Mount Type φ14
Focal Length 2.7 mm–13.5 mm
Max. Openings F1.6
Field of View Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138°
Iris Type Fixed iris
Close focus distance

0.8 m (2.6 ft)

PTZ
Pan/Tilt/Rotation Range

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Frame Rate

CVI: PAL: 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 4M@30fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H

Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 3D NR
Smart Lighting Yes
Digital Zoom 4x
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Electrical
Power Supply 12V DC ±30%
Power consumption Max. 7.9W (12V DC, IR on)
Environmental
Operating Conditions

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Strorage Conditions –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Ingress Protection IP67
Construction
Casing Metal throughout the whole casing
Dimensions Φ122mm × 104.8mm (Φ4.8" × 4.13")
Net Weight 0.60 kg (1.30 lb)
Gross Weight

0.76 kg (1.70 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
