HAC-HDW2501T-Z-A-S2 - è una telecamera eyeball HDCVI da 5MP con ottica motorizzata 2.7–13.5 mm F1.6, progettata per garantire immagini ad alta definizione in ogni condizione. Grazie al WDR reale 120 dB, Smart IR fino a 60 m e 3D NR, assicura visibilità ottimale anche in ambienti a forte contrasto o con scarsa illuminazione. Supporta trasmissione di video, audio, dati e alimentazione su un solo cavo coassiale e consente lo switch tra CVI/TVI/AHD/CVBS per massima compatibilità. Robusta e certificata IP67, è ideale per installazioni professionali in esterni e interni. Dahua
Riferimento: HAC-HDW2501T-Z-A-S2
Marca: Dahua
EAN: 6939554946585
Disponibilità: 1

FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

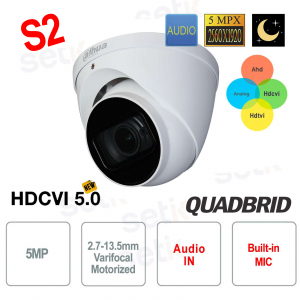

HAC-HDW2501T-Z-A-S2 | TELECAMERA 5MP EYEBALL 4IN1 MOTORIZZATA - STARLIGHT IR 60METRI AUDIO WDR

La Dahua HAC-HDW2501T-Z-A-S2 è una telecamera eyeball da 5MP con ottica motorizzata 2.7–13.5 mm e apertura F1.6, perfetta per videosorveglianza in alta definizione sia in ambienti interni che esterni. Grazie alla tecnologia HDCVI, consente trasmissione simultanea di video, audio, dati e alimentazione su un unico cavo coassiale, semplificando l’installazione. Con visione notturna IR fino a 60 m, WDR reale 120 dB, switch CVI/TVI/AHD/CVBS e protezione IP67 antivandalo, assicura immagini nitide e massima affidabilità anche in condizioni ambientali difficili.
Specifiche principali:
- Risoluzione 5MP a 25fps (2880×1620)
- Ottica motorizzata 2.7–13.5 mm, angolo H 31.4°–113°
- IR fino a 60 m con Smart IR e 3D NR
- 4 segnali su 1 cavo coassiale: video, audio, dati, alimentazione
- Uscita video CVI/TVI/AHD/CVBS commutabile
- Protezione IP67 e resistenza IK10 antivandalo
Ulteriori dettagli

Scheda tecnica
Model |
HAC-HDW2501T-Z-A-S2 |
Camera | |
Image Sensor | 1/2.7" CMOS |
Effective Pixels | 2880 (H) × 1620 (V), 5MP |
Scanning System | Progressive |
Electronic Shutter Speed |
PAL: 1/3 s–1/100,000 s |
Min. Illumination |
0.001 Lux/F1.6; 30IRE; 0 Lux IR on |
S/N Ratio | >65dB |
IR Distance | 60 m (196.9 ft) |
IR On/Off Control | Auto; manual |
IR LEDs | 2 |
Lens | |
Lens Type | Motorized lens / Fixed iris |
Auto Focus | Yes |
Mount Type | φ14 |
Focal Length | 2.7 mm–13.5 mm |
Max. Aperture | F1.6 |
Field of View | Horizontal: 31.4°–113° Vertical: 17.6°–58° Diagonal: 36°–138° |
Iris Type | Fixed iris |
Close focus distance |
0.8 m (2.6 ft) |
PTZ | |
Pan/Tilt/Rotation Range |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
Video | |
Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto switch by ICR |
BLC | BLC/HLC/WDR/HLC-Pro |
WDR | 120 dB |
White Balance | Auto; manual |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Smart Illumination | Yes |
Digital Zoom | 4x |
Defog | Electronic defog |
Mirror | Off/On |
Privacy Masking | Off/On (8 areas, rectangle) |
Certification | |
Certifications |
CE (EN55032:2015, EN 61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Interface | |
Audio Interface | One channel built-in mic |
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
Electrical | |
Power Supply | 12V DC ±30% |
Power consumption | Max. 7.9W (12V DC, IR on) |
Environmental | |
Operating Conditions |
–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
Strorage Conditions | –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation) |
Ingress Protection | IP67 |
Construction | |
Casing | Metal throughout the whole casing |

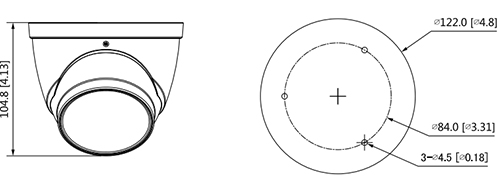

Dimensions | Φ122 mm × 104.8 mm (Φ4.8" × 4.13") |
Net Weight | 0.60 kg (1.30 lb) |
Gross Weight |
0.76 kg (1.70 lb) |
