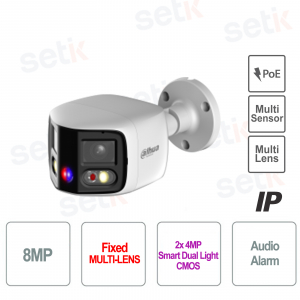

Dahua TiOC 8MP IP Camera with 180° Panoramic View and Smart AI

Dahua TiOC 8MP IP Camera with 180° Panoramic View and Smart AI
BEST PRICE -57%

IPC-PFW3849S-A180-AS-PV - The IP camera is an advanced solution for video surveillance, ideal for outdoor environments thanks to its IP67 protection. Equipped with a dual 4MP CMOS sensor and 2.8mm fixed lenses, it offers a 180° panoramic view with a maximum resolution of 8MP (4096×1860) at 20 fps. Smart Dual Illuminator technology ensures clear images even in low light conditions, combining IR LEDs and white light with a range of up to 25 meters. AI features, such as SMD 4.0 and perimeter protection, allow precise detection of people and vehicles, reducing false alarms. In addition, integrated two-way audio and active deterrence with siren and red/blue lights offer an additional level of security. The camera supports PoE power, MicroSD slot up to 256GB and has audio and alarm inputs/outputs, making it a complete choice for professional security. Dahua

Technical Data Sheet

Artikel-Nr.: IPC-PFW3849S-A180-AS-PV

Marke: Dahua

EAN: 6923172594327

Disponibilità: 24

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


DAHUA: UNTER DEM EINSTANDSPREIS×


 UNGLAUBLICHE RABATTE
auf eine Auswahl von DAHUA-Produkten
 Entdecken Sie die Promo jetzt >>

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-PFW3849S-A180-AS-PV | 2x4MP MULTI-LENS & MULTI-SENSOR 180° PANORAMIC IP CAMERA

Dahua

The Dahua IPC-PFW3849S-A180-AS-PV IP camera is an advanced video surveillance solution, ideal for outdoor environments thanks to its IP67 protection. Equipped with a dual 4MP CMOS sensor and 2.8mm fixed lenses, it offers a 180° panoramic view with a maximum resolution of 8MP (4096×1860) at 20 fps. Smart Dual Illuminator technology ensures clear images even in low light conditions, combining IR LEDs and white light with a range of up to 25 meters. AI features, such as SMD 4.0 and perimeter protection, allow precise detection of people and vehicles, reducing false alarms. In addition, integrated two-way audio and active deterrence with siren and red/blue lights offer an additional level of security. The camera supports PoE power, a MicroSD slot up to 256GB and has audio and alarm inputs/outputs, making it a complete choice for professional security.

Main specifications:

- 8MP Ultra HD resolution with dual CMOS sensor for sharp images

- 2.8mm optics with 180° panoramic view

- Smart Dual Illuminator: IR + white light up to 25m

- AI WizSense with SMD 4.0 for precise detection of people and vehicles

- Active deterrence: red/blue lights and built-in siren

- Two-way audio with microphone and speaker

- Built-in PoE for power and network over a single cable

- MicroSD slot up to 256GB for local recording

- IP67 protection grade for outdoor use

- Alarm and audio I/O for maximum integration

Further details

Panoramic optics:
Thanks to the 2.8mm lens and dual sensor, it offers a 180° view for complete monitoring without blind spots.
Dual Resolution:
The combination of two 4MP sensors ensures ultra-detailed 8MP total images.
Smart Dual Light :
Intelligent technology that switches from IR to white light when motion is detected for optimal visibility day and night.

AI WizSense:
Advanced recognition of people and vehicles with SMD 4.0, which minimizes false alarms.

Active deterrence:
Red and blue strobe lights with built-in siren instantly deter intruders.
TiOC Technology :
(Three-in-One Camera): Combines video, AI and active deterrence in one solution.

PoE (Power over Ethernet):
Power and data transmission via a single cable, simplifying installation.

Digital ePTZ:
Allows dynamic framing control via electronic zoom and smooth panning.
IPC-PFW3849S-A180-AS-PV_schema

Technical data sheet

CAMERA
Model

IPC-PFW3849S-A180-AS-PV

Image sensor Dual 1/2.7" CMOS
Max. resolution 4096(H)x1800(V)
Scan

Progressive

Electronic shutter speed Auto/Manual 1/3~1/100,000 s
Min. illumination

0.005 lux@F1.6(Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illumination on)

Y/N >56dB
Lighting range Up to 20 m (IR) Up to 20 m (Warm light)
On/off lighting Auto; Manual
Number of illuminators 2 (IR); 2 (Warm light)
OPTICS
Type Fixed
Assembly M12
Focal length 2.8mm
Max opening.

F1.6

Field of view

Horizontal: 180°; Vertical: 86°

Iris Control

Fixed

VIDEO ANALYSIS
IVS (perimeter protection

Intrusion, tripwire (human and vehicle detection and classification)

Quick Pick

With NVR AI, fast recovery of people/vehicles of interest from SMD events.

Smart Search

In synergy with a Smart NVR it is possible to refine the image search, event extraction and their combination

VIDEO
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only on secondary stream)
Smart Codec Smart H.265+; Smart H.264+
Streaming capacity 3 streams
Resolutions

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Frame Rate

Main stream: 4096 × 1860@(1~20 fps )
Substream: 1200 × 530@(1–~20 fps)
Third stream: 1920 × 860@(1~20 fps)

Bitrate Control

CBR/VBR

Bitrate

H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR) / Color / B/W

BLC

Yes

HLC

Yes

White balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise reduction

3D NR

Motion Detection

OFF/ON (4 rectangular areas)

Region Of Interest

Yes (4 areas)

Defog

Yes

Privacy Masking

4 areas

AUDIO
Built-in microphone Yes, dual microphone
Audio compression G.711a; G.711Mu; PCM; G.726; G.723
NET
Ethernet RJ-45 (10/100Base-T)
Network Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Compatibility ONVIF® (Profile S/Profile G/Profile T); CGI
SDKs and APIs Yes
Users/Hosts 20 (total bandwidth: 64 MB)
Archiving FTP; SFTP; Micro SD card (max. 256 GB); NAS
Browser IE: IE 8 and later Chrome Firefox
Management software Smart PSS Lite; DSS; DMSS
Mobile Client Android, IOS
CERTIFICATIONS
Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

DOORS
Audio Input 1 channel (RCA)
Audio Output 1 channel (RCA)
Alarm Input 1 channel: dry contact, 5 mA 3 V–5 VDC
Alarm Output

1 channel: dry contact, 300 mA 12 VDC

DIET
Diet 12VDC (±30%); PoE (802.3af)
Absorption

Base: 3.4W (12VDC); 3.8 W (PoE) Max. (H.265+WDR+ warm light+siren and lights + AI on): 9 W (12 VDC); 10.3W (PoE)

ENVIRONMENTAL CONDITIONS
Operating temperature -40°C ~ +60°C (-40°F ~ +140°F) / ≤95%
Storage temperature -40° C ~ +60° C (-40° F ~ +140° F)
Degree of protection IP67
STRUCTURE
Shell material Metal
Dimensions 183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)
Net weight 695g (1.53lb)
Weight with packaging 870g (1.92lb)
