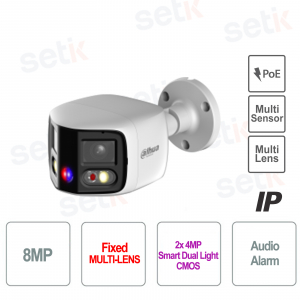

Dahua TiOC 8MP IP Camera with 180° Panoramic View and Smart AI

Dahua TiOC 8MP IP Camera with 180° Panoramic View and Smart AI
BEST PRICE -57%

IPC-PFW3849S-A180-AS-PV - The IP camera is an advanced solution for video surveillance, ideal for outdoor environments thanks to its IP67 protection. Equipped with a dual 4MP CMOS sensor and 2.8mm fixed lenses, it offers a 180° panoramic view with a maximum resolution of 8MP (4096×1860) at 20 fps. Smart Dual Illuminator technology ensures clear images even in low light conditions, combining IR LEDs and white light with a range of up to 25 meters. AI features, such as SMD 4.0 and perimeter protection, allow precise detection of people and vehicles, reducing false alarms. In addition, integrated two-way audio and active deterrence with siren and red/blue lights offer an additional level of security. The camera supports PoE power, MicroSD slot up to 256GB and has audio and alarm inputs/outputs, making it a complete choice for professional security. Dahua

Technical Data Sheet

Reference: IPC-PFW3849S-A180-AS-PV

Brand: Dahua

EAN: 6923172594327

Disponibilità: 24

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IPC-PFW3849S-A180-AS-PV | 2x4MP MULTI-LENS & MULTI-SENSOR 180° PANORAMIC IP CAMERA

Dahua

The Dahua IPC-PFW3849S-A180-AS-PV IP camera is an advanced video surveillance solution, ideal for outdoor environments thanks to its IP67 protection. Equipped with a dual 4MP CMOS sensor and 2.8mm fixed lenses, it offers a 180° panoramic view with a maximum resolution of 8MP (4096×1860) at 20 fps. Smart Dual Illuminator technology ensures clear images even in low light conditions, combining IR LEDs and white light with a range of up to 25 meters. AI features, such as SMD 4.0 and perimeter protection, allow precise detection of people and vehicles, reducing false alarms. In addition, integrated two-way audio and active deterrence with siren and red/blue lights offer an additional level of security. The camera supports PoE power, a MicroSD slot up to 256GB and has audio and alarm inputs/outputs, making it a complete choice for professional security.

Main specifications:

- 8MP Ultra HD resolution with dual CMOS sensor for sharp images

- 2.8mm optics with 180° panoramic view

- Smart Dual Illuminator: IR + white light up to 25m

- AI WizSense with SMD 4.0 for precise detection of people and vehicles

- Active deterrence: red/blue lights and built-in siren

- Two-way audio with microphone and speaker

- Built-in PoE for power and network over a single cable

- MicroSD slot up to 256GB for local recording

- IP67 protection grade for outdoor use

- Alarm and audio I/O for maximum integration

Further details

Panoramic optics:
Thanks to the 2.8mm lens and dual sensor, it offers a 180° view for complete monitoring without blind spots.
Dual Resolution:
The combination of two 4MP sensors ensures ultra-detailed 8MP total images.
Smart Dual Light :
Intelligent technology that switches from IR to white light when motion is detected for optimal visibility day and night.

AI WizSense:
Advanced recognition of people and vehicles with SMD 4.0, which minimizes false alarms.

Active deterrence:
Red and blue strobe lights with built-in siren instantly deter intruders.
TiOC Technology :
(Three-in-One Camera): Combines video, AI and active deterrence in one solution.

PoE (Power over Ethernet):
Power and data transmission via a single cable, simplifying installation.

Digital ePTZ:
Allows dynamic framing control via electronic zoom and smooth panning.
IPC-PFW3849S-A180-AS-PV_schema

Technical data sheet

CAMERA
Model

IPC-PFW3849S-A180-AS-PV

Image sensor Dual 1/2.7" CMOS
Max. resolution 4096(H)x1800(V)
Scan

Progressive

Electronic shutter speed Auto/Manual 1/3~1/100,000 s
Min. illumination

0.005 lux@F1.6(Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illumination on)

Y/N >56dB
Lighting range Up to 20 m (IR) Up to 20 m (Warm light)
On/off lighting Auto; Manual
Number of illuminators 2 (IR); 2 (Warm light)
OPTICS
Type Fixed
Assembly M12
Focal length 2.8mm
Max opening.

F1.6

Field of view

Horizontal: 180°; Vertical: 86°

Iris Control

Fixed

VIDEO ANALYSIS
IVS (perimeter protection

Intrusion, tripwire (human and vehicle detection and classification)

Quick Pick

With NVR AI, fast recovery of people/vehicles of interest from SMD events.

Smart Search

In synergy with a Smart NVR it is possible to refine the image search, event extraction and their combination

VIDEO
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only on secondary stream)
Smart Codec Smart H.265+; Smart H.264+
Streaming capacity 3 streams
Resolutions

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Frame Rate

Main stream: 4096 × 1860@(1~20 fps )
Substream: 1200 × 530@(1–~20 fps)
Third stream: 1920 × 860@(1~20 fps)

Bitrate Control

CBR/VBR

Bitrate

H.264: 6 kbps –16384 kbps H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR) / Color / B/W

BLC

Yes

HLC

Yes

White balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise reduction

3D NR

Motion Detection

OFF/ON (4 rectangular areas)

Region Of Interest

Yes (4 areas)

Defog

Yes

Privacy Masking

4 areas

AUDIO
Built-in microphone Yes, dual microphone
Audio compression G.711a; G.711Mu; PCM; G.726; G.723
NET
Ethernet RJ-45 (10/100Base-T)
Network Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Compatibility ONVIF® (Profile S/Profile G/Profile T); CGI
SDKs and APIs Yes
Users/Hosts 20 (total bandwidth: 64 MB)
Archiving FTP; SFTP; Micro SD card (max. 256 GB); NAS
Browser IE: IE 8 and later Chrome Firefox
Management software Smart PSS Lite; DSS; DMSS
Mobile Client Android, IOS
CERTIFICATIONS
Certifications

CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

DOORS
Audio Input 1 channel (RCA)
Audio Output 1 channel (RCA)
Alarm Input 1 channel: dry contact, 5 mA 3 V–5 VDC
Alarm Output

1 channel: dry contact, 300 mA 12 VDC

DIET
Diet 12VDC (±30%); PoE (802.3af)
Absorption

Base: 3.4W (12VDC); 3.8 W (PoE) Max. (H.265+WDR+ warm light+siren and lights + AI on): 9 W (12 VDC); 10.3W (PoE)

ENVIRONMENTAL CONDITIONS
Operating temperature -40°C ~ +60°C (-40°F ~ +140°F) / ≤95%
Storage temperature -40° C ~ +60° C (-40° F ~ +140° F)
Degree of protection IP67
STRUCTURE
Shell material Metal
Dimensions 183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)
Net weight 695g (1.53lb)
Weight with packaging 870g (1.92lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
