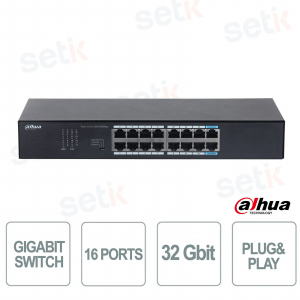

Dahua S3016-16GT 16-Port Gigabit Switch – Fast and Reliable Networking

Dahua S3016-16GT 16-Port Gigabit Switch – Fast and Reliable Networking

-57% Neu

S3016-16GT - The Gigabit switch with 16 RJ-45 10/100/1000 Mbps ports is designed to ensure stable and delay-free connections, thanks to its high-performance switching engine and large buffer capacity. The robust metal design, fanless and with excellent heat dissipation, ensures reliability and silence even under intensive use. Installation is simple and versatile with desktop, wall, or rack mount, while the port isolation and link aggregation functions increase security, stability, and traffic balancing. Perfect for homes, offices, and professional environments that require high and reliable network performance. Dahua

Technical Data Sheet

Artikel-Nr.: S3016-16GT

Marke: Dahua

EAN: 6939554932632

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

S3016-16GT | UNMANAGED GIGABIT SWITCH 16 PORTS


Dahua

The Dahua S3016-16GT Gigabit switch offers 16 10/100/1000 Mbps RJ-45 ports for stable, fast, and lag-free network connections. Its fanless metal design ensures quiet operation and excellent heat dissipation, making it easy to install on a desktop, wall, or rack. It supports advanced features such as port isolation and link aggregation to improve security, stability, and traffic balancing, making it ideal for homes, offices, and professional environments.

Main specifications:

- 16 Gigabit RJ-45 10/100/1000 Mbps ports

- Robust fanless metal design

- Switching capacity: 32 Gbps

- Port isolation and link aggregation functions

- Desktop, wall or rack installation

Further details

Number of doors:
Equipped with 16 RJ-45 Gigabit 10/100/1000 Mbps ports , it allows the management of multiple devices simultaneously without slowdowns.
Plug and Play:
It doesn't require any complex configurations, just plug it in and start using it right away, making installation simple even for less experienced users.
Full Line-rate Forwarding :
It ensures error-free packet forwarding and speed loss even under full load, ensuring consistent network performance.
Port Isolation :
It prevents communication between different ports without requiring VLANs, protecting data from possible leaks and isolating broadcast storms.
Performance :
It offers 32 Gbps switching capacity and 23.808 Mpps packet forwarding rate, supporting heavy traffic and advanced applications with maximum stability.

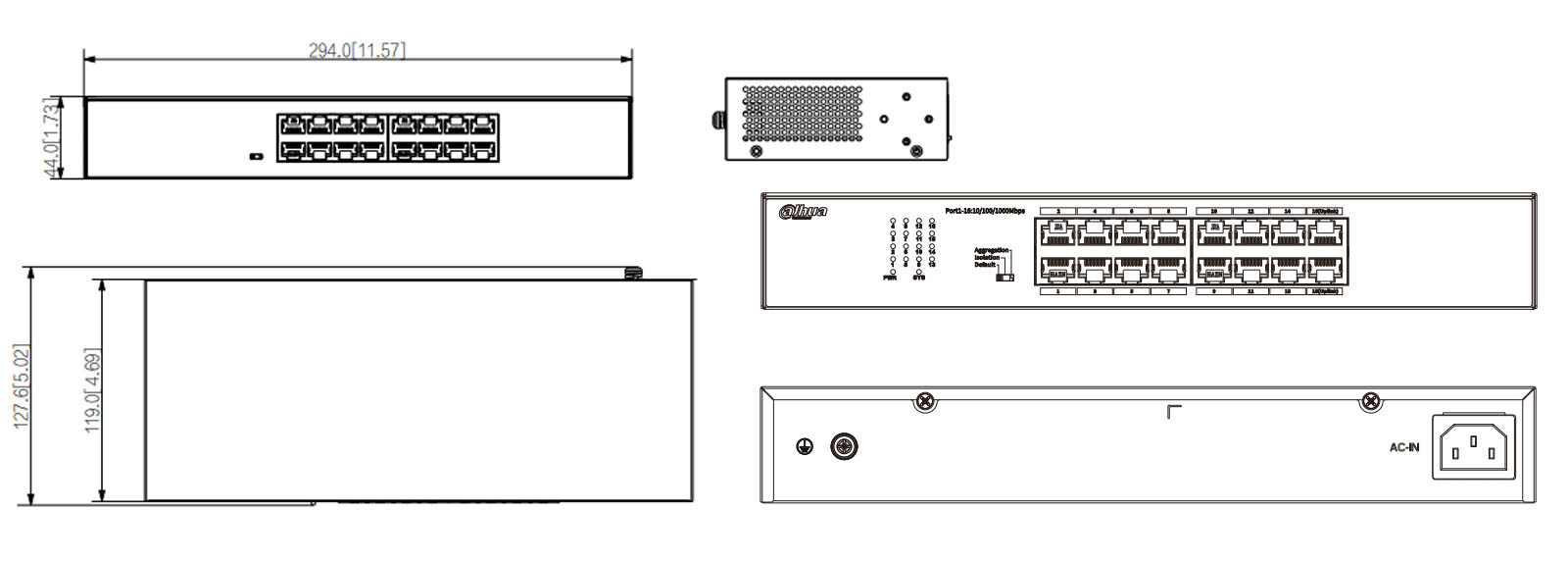

S3016-16GT dimensions

Technical data sheet

Model S3016-16GT
Basic
Layer

Layer 2

Switching Capacity

32 Gbps

Packet Forwarding Rate

23.808 Mpps

Description of Function Slots

Port 1-14: 14 × RJ-45 10/100/1000 Mbps
Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Humidity

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption

Idling: 2.2 W;
Full load: 7.8 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 2kV
Differential mode: 0.5 kV

Net Weight

0.74 kg (1.63 lb)

Gross Weight

1,297 kg (2.86 lb)

Dimensions

294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions

353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount; rack mount

Certifications

THERE IS

Storage Humidity

5%–95% (RH)

Hardware

DIP Switch

Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-14, but allows ports 1-14 to send its traffic to the uplink ports 15-16. These uplink ports can also send their traffic to 1-14.
Port aggregation: Aggregates uplink ports.

Performance

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12K Bytes

MAC Table Size

16K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Feature

Link Aggregation

Static link aggregation

Port Feature IEEE 802.3x traffic control
IEEE 802.3x Flow Control Yes
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Power Cord;
1 × Rack-mounting Kit;

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
