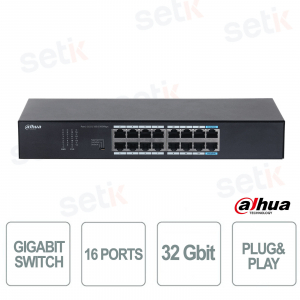

S3016-16GT | UNMANAGED GIGABIT SWITCH 16 PORTS


Dahua

The Dahua S3016-16GT Gigabit switch offers 16 10/100/1000 Mbps RJ-45 ports for stable, fast, and lag-free network connections. Its fanless metal design ensures quiet operation and excellent heat dissipation, making it easy to install on a desktop, wall, or rack. It supports advanced features such as port isolation and link aggregation to improve security, stability, and traffic balancing, making it ideal for homes, offices, and professional environments.

Main specifications:

- 16 Gigabit RJ-45 10/100/1000 Mbps ports

- Robust fanless metal design

- Switching capacity: 32 Gbps

- Port isolation and link aggregation functions

- Desktop, wall or rack installation

Further details

Number of doors:
Equipped with 16 RJ-45 Gigabit 10/100/1000 Mbps ports , it allows the management of multiple devices simultaneously without slowdowns.
Plug and Play:
It doesn't require any complex configurations, just plug it in and start using it right away, making installation simple even for less experienced users.
Full Line-rate Forwarding :
It ensures error-free packet forwarding and speed loss even under full load, ensuring consistent network performance.
Port Isolation :
It prevents communication between different ports without requiring VLANs, protecting data from possible leaks and isolating broadcast storms.
Performance :
It offers 32 Gbps switching capacity and 23.808 Mpps packet forwarding rate, supporting heavy traffic and advanced applications with maximum stability.

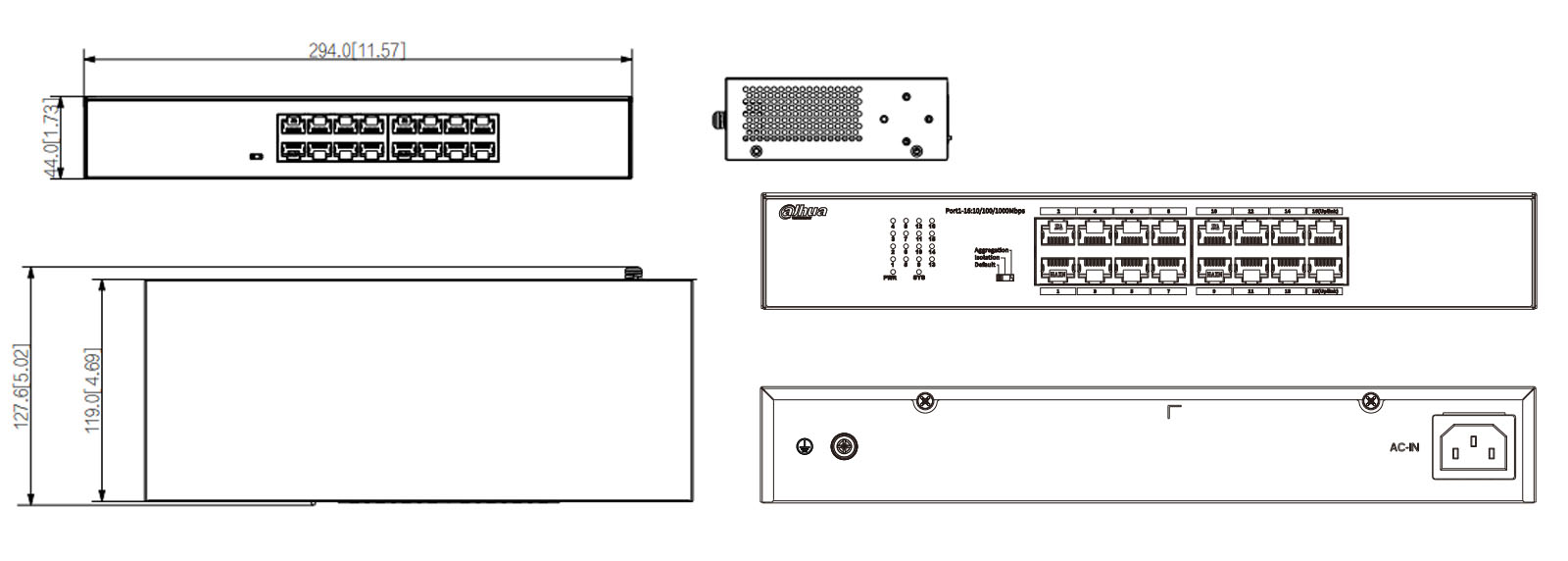

S3016-16GT dimensions

Technical data sheet

Model S3016-16GT
Basic
Layer

Layer 2

Switching Capacity

32 Gbps

Packet Forwarding Rate

23.808 Mpps

Description of Function Slots

Port 1-14: 14 × RJ-45 10/100/1000 Mbps
Port 15-16: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Humidity

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption

Idling: 2.2 W;
Full load: 7.8 W

Statics Protection

Air discharge: 8kV
Contact discharge: 6kV

Lighting Protection

Common mode: 2kV
Differential mode: 0.5 kV

Net Weight

0.74 kg (1.63 lb)

Gross Weight

1,297 kg (2.86 lb)

Dimensions

294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions

353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount; rack mount

Certifications

THERE IS

Storage Humidity

5%–95% (RH)

Hardware

DIP Switch

Default: Default setting
Post isolation: Prevents traffic from being sent between ports 1-14, but allows ports 1-14 to send its traffic to the uplink ports 15-16. These uplink ports can also send their traffic to 1-14.
Port aggregation: Aggregates uplink ports.

Performance

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12K Bytes

MAC Table Size

16K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Feature

Link Aggregation

Static link aggregation

Port Feature IEEE 802.3x traffic control
IEEE 802.3x Flow Control Yes
General
Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Power Cord;
1 × Rack-mounting Kit;
