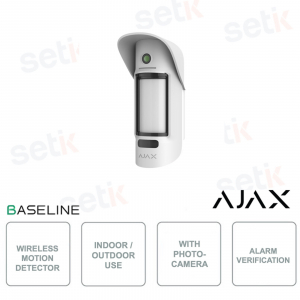

MotionCam Outdoor Jeweller: Outdoor Sensor with HDR Camera, Anti-Masking and IP56 Protection for Advanced Security

MotionCam Outdoor Jeweller: Outdoor Sensor with HDR Camera, Anti-Masking and IP56 Protection for Advanced Security


38192.84.WH1 # 38192 | Ajax MotionCam Outdoor Jeweller is an outdoor sensor with a built-in camera designed to ensure professional security thanks to detection up to 15 m , night vision , advanced animal immunity , anti-masking system and encrypted photo transmission up to 1,700 m . It offers clear images with HDR , first frame capture in less than 9 seconds and reliable operation in all weather conditions thanks to IP56 protection and an operating range of -25°C to +60°C . Installation is simple via SmartBracket , while the battery guarantees up to 3 years of autonomy , ensuring continuous surveillance and resistance to sabotage attempts. Ajax

Technical Data Sheet

Artikel-Nr.: 38192.84.WH1

Marke: Ajax Systems

EAN: 4823114015342

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN


KOSTENLOSES TVCC-SCHILD!×


Mit allen >> AJAX KITS

TOTALER AUSVERKAUF ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38192.84.WH1 | PIR Motion Detector with Photo Alarm - Indoor and Outdoor Use

Ajax

The Ajax MotionCam Outdoor Jeweler, 38192.84.WH1, is an advanced outdoor motion sensor with a built-in camera designed to ensure professional protection, offering precise detection up to 15 meters, instant photo verification, and complete reliability even in extreme weather conditions. Thanks to dual PIR technology, encrypted radio protocols, and an IP56 design, it ensures maximum security by reducing false alarms and ensuring clear images day and night, with easy installation and a battery life of up to 3 years.

Main specifications:

- Detection up to 15 m with double PIR sensor and reduction of false alarms

- HDR camera with first frame delivery in less than 9 seconds

- Night vision and IR backlight for clear images even in the dark

- Anti-masking and anti-sabotage system with immediate notifications

- Jeweller/Wings radio communication up to 1,700 m, encrypted and stable

- IP56 protection and operation from -25°C to +60°C, ideal for any climate

- Battery life up to 3 years with CR123A batteries and quick assembly via SmartBracket

Further details

Jeweler Communication :
The Jeweller protocol provides highly encrypted two-way radio transmission between the sensor and the hub, ensuring immediate delivery of alarm events with protection against interference, hacking attempts, and falsification. It operates using synchronized time windows that maintain stable communication up to 1,700 meters , even in complex installations.
Wings Communication :
The Wings system uses a dedicated, encrypted radio channel to transmit photos, allowing for quick and reliable visual verification of the alarm. The technology ensures images are sent in seconds without interfering with Jeweller, ensuring operational continuity and data integrity even over long distances.
Detection :
The device uses two independent PIR sensors combined with the LISA algorithm to intelligently analyze signals and distinguish real motion from environmental disturbances. This architecture allows for accurate detection up to 15 meters , drastically reducing false alarms and ensuring optimal performance even with pets and variable weather conditions.
Anti-sabotage protection:
The anti-tamper system integrates grade 2 anti-masking sensors that immediately detect coverings, paint, or intentional obstructions. The device sends instant notifications if it's removed from the bracket or loses communication, activating the tamper in less than a minute and ensuring maximum protection against tampering.
Power supply:
Powered by 4 CR123A batteries , the sensor offers up to 3 years of battery life, ensuring continuous operation without frequent maintenance. Optimized power management maintains high performance even in extreme temperatures, from -25°C to +60°C , making it ideal for professional outdoor installations.

Technical data sheet

Model: 38192.84.WH1

Classification

Radio-interlinked photoelectric security detector

Installation method

Outdoors and indoors

Type of detector

Wireless

Jeweler radio protocol

Transmission of events and alarms
Alarm delivery time: 0.15 s

Wings radio protocol

Transmission of a series of photos
Photo delivery time under default settings: up to 9 seconds

Compatibility

Hub 2, Hub 2 Plus
Doesn't work with ReX range extenders

Sensing element

Two IR sensors

Sensitivity

Adjustable, 3 levels

Motion detection distance

From 3 to 15 meters (set by user)

Horizontal viewing angle of the detector

90°

Motion detection speed

From 0.3 to 2.0 m/s

Pet immunity option

Yes. When installed and set up correctly, the detector ignores animals up to 80 centimeters tall

Camera angle

• Horizontal — 105°
• Vertical — 50°

Distortion

Barrel, –77%

Sending photo in case of alarm

Photo resolution:

• 320 × 176 pixels (default)
• 640 × 352 pixels

Shooting series of up to 5 photos

Infrared backlight for shooting in the dark

Yes

Protection against false triggering

Yes

Tamper protection

Yes

Protection against masking

Yes

Temperature sensor

Yes

CMS compatibility

Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols

CMS software with support for photo-verification of alarms

Frequency band

868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region

Maximum radio signal strength

20 mW limit

Radio signal modulation

GFSK

TDMA

yes

Radio signal range

Up to 1,700 m (without obstacles)

Ping interval

From 12 to 300 seconds

Power supply

4 CR123 batteries

Power supply voltage

6 V

Battery life

Up to 3 years (up to 2.5 years with Entry Delay setting enabled)

Protection class

IP55

Operating temperature range

From –25°C to +60°C

Operating humidity

Up to 95%

Dimensions

206 × 108 × 93 mm

Weight

470 g

Service life

10 years

Warranty

24 months
