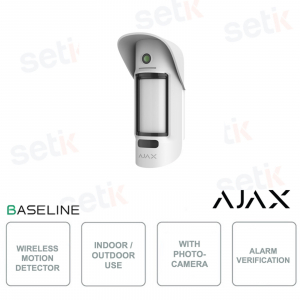

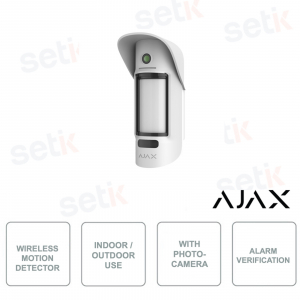

MotionCam Outdoor Jeweller: Outdoor Sensor with HDR Camera, Anti-Masking and IP56 Protection for Advanced Security
38192.84.WH1 # 38192 | Ajax MotionCam Outdoor Jeweller is an outdoor sensor with a built-in camera designed to ensure professional security thanks to detection up to 15 m , night vision , advanced animal immunity , anti-masking system and encrypted photo transmission up to 1,700 m . It offers clear images with HDR , first frame capture in less than 9 seconds and reliable operation in all weather conditions thanks to IP56 protection and an operating range of -25°C to +60°C . Installation is simple via SmartBracket , while the battery guarantees up to 3 years of autonomy , ensuring continuous surveillance and resistance to sabotage attempts. Ajax
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
38192.84.WH1 | PIR Motion Detector with Photo Alarm - Indoor and Outdoor Use

The Ajax MotionCam Outdoor Jeweler, 38192.84.WH1, is an advanced outdoor motion sensor with a built-in camera designed to ensure professional protection, offering precise detection up to 15 meters, instant photo verification, and complete reliability even in extreme weather conditions. Thanks to dual PIR technology, encrypted radio protocols, and an IP56 design, it ensures maximum security by reducing false alarms and ensuring clear images day and night, with easy installation and a battery life of up to 3 years.
Main specifications:
- Detection up to 15 m with double PIR sensor and reduction of false alarms
- HDR camera with first frame delivery in less than 9 seconds
- Night vision and IR backlight for clear images even in the dark
- Anti-masking and anti-sabotage system with immediate notifications
- Jeweller/Wings radio communication up to 1,700 m, encrypted and stable
- IP56 protection and operation from -25°C to +60°C, ideal for any climate
- Battery life up to 3 years with CR123A batteries and quick assembly via SmartBracket
Further details
Technical data sheet
| Model: | 38192.84.WH1 |
|
Classification |
Radio-interlinked photoelectric security detector |
|
Installation method |
Outdoors and indoors |
|
Type of detector |
Wireless |
|
Jeweler radio protocol |
Transmission of events and alarms |
|
Wings radio protocol |
Transmission of a series of photos |
|
Compatibility |
Hub 2, Hub 2 Plus |
|
Sensing element |
Two IR sensors |
|
Sensitivity |
Adjustable, 3 levels |
|
Motion detection distance |
From 3 to 15 meters (set by user) |
|
Horizontal viewing angle of the detector |
90° |
|
Motion detection speed |
From 0.3 to 2.0 m/s |
|
Pet immunity option |
Yes. When installed and set up correctly, the detector ignores animals up to 80 centimeters tall |
|
Camera angle |
• Horizontal — 105° |
|
Distortion |
Barrel, –77% |
|
Sending photo in case of alarm |
Photo resolution: • 320 × 176 pixels (default) Shooting series of up to 5 photos |
|
Infrared backlight for shooting in the dark |
Yes |
|
Protection against false triggering |
Yes |
|
Tamper protection |
Yes |
|
Protection against masking |
Yes |
|
Temperature sensor |
Yes |
|
CMS compatibility |
Motion alarms are transmitted to CMSs that support SIA (DC-09) and Contact ID protocols CMS software with support for photo-verification of alarms |
|
Frequency band |
868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region |
|
Maximum radio signal strength |
20 mW limit |
|
Radio signal modulation |
GFSK |
|
TDMA |
yes |
|
Radio signal range |
Up to 1,700 m (without obstacles) |
|
Ping interval |
From 12 to 300 seconds |
|
Power supply |
4 CR123 batteries |
|
Power supply voltage |
6 V |
|
Battery life |
Up to 3 years (up to 2.5 years with Entry Delay setting enabled) |
|
Protection class |
IP55 |
|
Operating temperature range |
From –25°C to +60°C |
|
Operating humidity |
Up to 95% |
|
Dimensions |
206 × 108 × 93 mm |
|
Weight |
470 g |
|
Service life |
10 years |
|
Warranty |
24 months |
