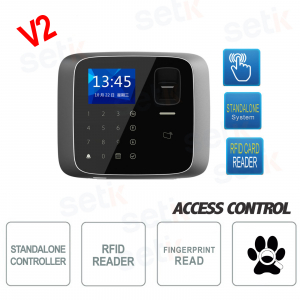

ASI1212A-D-V2 Standalone Access Control with Fingerprint, RFID, 30,000 Users, and TCP/IP - Dahua

ASI1212A-D-V2 Standalone Access Control with Fingerprint, RFID, 30,000 Users, and TCP/IP - Dahua

 
-57%

ASI1212A-D-V2 - is a standalone access control terminal with integrated fingerprint reader and advanced management of multiple credentials, ideal for offices and indoor environments. It supports 30,000 users, 3,000 fingerprints and 150,000 events , ensuring high storage capacity and traceability. It integrates 13.56MHz and 125KHz RFID reader , authentication via card, password, fingerprint or combination , with rapid response time (<0.1s card="" 1="" 5s="" fingerprint="" it="" has="" strong="">TCP/IP RJ45, Wiegand and RS-485 , 4 relays for lock and alarms, as well as anti-passback and multi-card unlock functions. Complete with tamper, intrusion, duress and open door alarms , scheduling with 128 time slots and holidays , it is CE and FCC certified. Dahua

Technical data sheet

Artikel-Nr.: ASI1212A-D-V2

Marke: Dahua

EAN: 6939554912672

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

ASI1212A-D-V2 | STAND-ONE FINGERPRINT ACCESS CONTROL

Dahua

The Dahua ASI1212A-D-V2 is a standalone fingerprint and RFID access control terminal, designed for offices and indoor environments, with advanced user management and integrated security functions. It supports authentication via 13.56MHz and 125KHz cards, password, fingerprint or combination , ensuring fast response times (<0.1s card="" 1="" 5s="" fingerprint="" and="" maximum="" reliability="" with="" far="" 0="" 00004="" the="" capacity="" reaches="" up="" to="" strong="">30,000 users, 3,000 fingerprints and 150,000 events , with 128 time slots scheduling and anti-passback management. It integrates TCP/IP, Wiegand and RS-485 , 4 relays for lock and alarms, as well as protection functions against intrusion, tampering and duress.

Main specifications:

- Capacity 30,000 users and 150,000 events

- Fingerprint reader with FAR ≤0.00004%

- RFID 13.56MHz and 125KHz with multiple authentication

- TCP/IP RJ45, Wiegand and RS-485

- Anti-passback, multi-card unlock and 128 time schedules

- Tamper, intrusion, duress and open door alarms

Further details

✅ LCD Display :
With backlit touch keypad : the terminal integrates an LCD screen and touch-sensitive keypad with blue backlighting , offering an intuitive interface for managing access control, viewing device status and quick configurations directly from the panel.
✅ Card reading:
RFID 13.56MHz and 125KHz : Supports IC and EM ID cards , with reading distance up to 6cm and response time <0.1 seconds="" strong=""> , ensuring fast and reliable access in professional environments.
✅ High-precision fingerprint reading:
Biometric sensor with response time ≤1.5 seconds , FAR ≤0.00004% and FRR ≤0.15% , designed to ensure high security and reduction of false accesses.
✅ Capacity:
Up to 30,000 users and 150,000 events : management of 3,000 fingerprints and extensive event history, ideal for companies and offices with traceability and attendance control needs.
✅ Smart Dual Light:
Smart Dual Light technology with IR and warm light allows you to obtain color images even at night , activating the most suitable lighting up to 30 meters for a clear and detailed vision in any conditions.
✅ Advanced access control features:
Includes anti-passback, multi-card unlock, user management (VIP, Guest, Black list, Duress) , intrusion, tamper and open door alarms, as well as 128 programmable time zones and holiday calendars.
✅ Integrated Watchdog Function:
Hardware self-monitoring system that prevents device crashes and ensures operational continuity over time.

Technical data sheet

MODEL ASI1212A-D-V2
System
Main Processor 32 Bit
Memory 16M
Input/Output Ports
Input Door sensor x 1, Exit button x 1, Alarm input x 1
Output Relay x 4 (Door lock, Bell, Alarm x 2)
Card Read
Read Format 125KHz
Read Range 1-6cm (max.)
Response Time <0.1s
Fingerprint Read
Response Time ≤1.5s
FAR ≤0.00004%
FRR ≤0.15%
Capacity
Card holders 30,000
Events 150,000
Fingerprint 3000
Function
Access control Anti-passback, Multi-card unlock
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)
To Reader Wiegand/RS485
General
RTC Yes
Voice Prompt Yes
Beep Tone Buzzer
Keyboard Sensitive touch keypad with blue backlight
Power Supply 9-15DC/200mA
Operating Temperature -10°C to +55°C
Working Humidity ≤95%
Dimension(W×D×H) 192mm×32mm×160mm
Weight 0.7kg
Working Environment Indoor
Certificates
THERE IS Yes
FCC Yes
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
