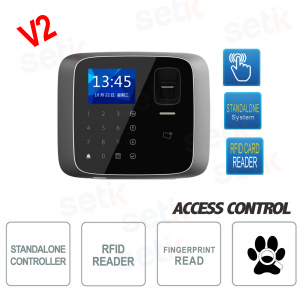

ASI1212A-D-V2 - is a standalone access control terminal with integrated fingerprint reader and advanced management of multiple credentials, ideal for offices and indoor environments. It supports 30,000 users, 3,000 fingerprints and 150,000 events , ensuring high storage capacity and traceability. It integrates 13.56MHz and 125KHz RFID reader , authentication via card, password, fingerprint or combination , with rapid response time (<0.1s card="" 1="" 5s="" fingerprint="" it="" has="" strong="">TCP/IP RJ45, Wiegand and RS-485 , 4 relays for lock and alarms, as well as anti-passback and multi-card unlock functions. Complete with tamper, intrusion, duress and open door alarms , scheduling with 128 time slots and holidays , it is CE and FCC certified. Dahua

Technical data sheet

Reference: ASI1212A-D-V2

Brand: Dahua

EAN: 6939554912672

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


ASI1212A-D-V2 | STAND-ONE FINGERPRINT ACCESS CONTROL

Dahua

The Dahua ASI1212A-D-V2 is a standalone fingerprint and RFID access control terminal, designed for offices and indoor environments, with advanced user management and integrated security functions. It supports authentication via 13.56MHz and 125KHz cards, password, fingerprint or combination , ensuring fast response times (<0.1s card="" 1="" 5s="" fingerprint="" and="" maximum="" reliability="" with="" far="" 0="" 00004="" the="" capacity="" reaches="" up="" to="" strong="">30,000 users, 3,000 fingerprints and 150,000 events , with 128 time slots scheduling and anti-passback management. It integrates TCP/IP, Wiegand and RS-485 , 4 relays for lock and alarms, as well as protection functions against intrusion, tampering and duress.

Main specifications:

- Capacity 30,000 users and 150,000 events

- Fingerprint reader with FAR ≤0.00004%

- RFID 13.56MHz and 125KHz with multiple authentication

- TCP/IP RJ45, Wiegand and RS-485

- Anti-passback, multi-card unlock and 128 time schedules

- Tamper, intrusion, duress and open door alarms

Further details

LCD Display :
With backlit touch keypad : the terminal integrates an LCD screen and touch-sensitive keypad with blue backlighting , offering an intuitive interface for managing access control, viewing device status and quick configurations directly from the panel.
Card reading:
RFID 13.56MHz and 125KHz : Supports IC and EM ID cards , with reading distance up to 6cm and response time <0.1 seconds="" strong=""> , ensuring fast and reliable access in professional environments.
High-precision fingerprint reading:
Biometric sensor with response time ≤1.5 seconds , FAR ≤0.00004% and FRR ≤0.15% , designed to ensure high security and reduction of false accesses.
Capacity:
Up to 30,000 users and 150,000 events : management of 3,000 fingerprints and extensive event history, ideal for companies and offices with traceability and attendance control needs.
Smart Dual Light:
Smart Dual Light technology with IR and warm light allows you to obtain color images even at night , activating the most suitable lighting up to 30 meters for a clear and detailed vision in any conditions.
Advanced access control features:
Includes anti-passback, multi-card unlock, user management (VIP, Guest, Black list, Duress) , intrusion, tamper and open door alarms, as well as 128 programmable time zones and holiday calendars.
Integrated Watchdog Function:
Hardware self-monitoring system that prevents device crashes and ensures operational continuity over time.

Technical data sheet

MODEL ASI1212A-D-V2
System
Main Processor 32 Bit
Memory 16M
Input/Output Ports
Input Door sensor x 1, Exit button x 1, Alarm input x 1
Output Relay x 4 (Door lock, Bell, Alarm x 2)
Card Read
Read Format 125KHz
Read Range 1-6cm (max.)
Response Time <0.1s
Fingerprint Read
Response Time ≤1.5s
FAR ≤0.00004%
FRR ≤0.15%
Capacity
Card holders 30,000
Events 150,000
Fingerprint 3000
Function
Access control Anti-passback, Multi-card unlock
User Management General, VIP, Guest, Patrol, Black list, Duress
Alarm Function Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm
Schedule Setting Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period
Interface
To PC RJ45(10/100M)
To Reader Wiegand/RS485
General
RTC Yes
Voice Prompt Yes
Beep Tone Buzzer
Keyboard Sensitive touch keypad with blue backlight
Power Supply 9-15DC/200mA
Operating Temperature -10°C to +55°C
Working Humidity ≤95%
Dimension(W×D×H) 192mm×32mm×160mm
Weight 0.7kg
Working Environment Indoor
Certificates
THERE IS Yes
FCC Yes
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
