7" Touch Screen IP Monitor with Two-Way Audio, Ethernet, Alarms, MicroSD, and PonC for Video Intercom - Hyundai

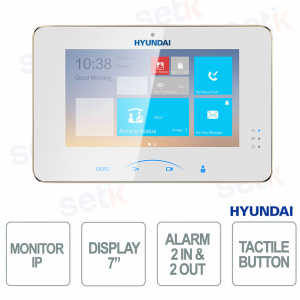

HYU-559 - The indoor IP monitor is an advanced solution for video intercom systems, designed to offer efficient control and communication thanks to the 7” capacitive touch screen with 1024x600 resolution that guarantees an intuitive and high-quality interface. It integrates two-way audio with microphone and speaker , allowing clear communications with the external station. Equipped with Fast Ethernet connection and TCP/IP and RTSP protocols , it allows remote management and integration with IP systems. It supports 2 alarm inputs and 2 alarm outputs and a panic call function , improving home security. Includes a MicroSD slot up to 32GB and support for notifications and messages , expanding functionality. Flexible power supply via 12V DC or PonC , for simple and efficient installations. Hyundai
HYU-558 | OUTDOOR IP VIDEO INTERCOM STATION WITH 1.3MP CAMERA
The Hyundai HYU-558 outdoor IP video intercom station is an advanced access control solution, designed to ensure security and high performance thanks to the 1.3MP camera with 720P resolution and adaptive IR LEDs for clear vision in all conditions. It integrates a Mifare proximity reader and 1 call button , ideal for residential contexts and small installations. The system offers two-way audio with echo cancellation and noise reduction , ensuring clear communications. It supports Fast Ethernet connection with TCP/IP and RTSP protocols , for remote management and advanced integration. It has 4 inputs and 1 alarm output with tamper function , improving security. The metal structure with IP65 protection and operating range from -40°C to +60°C guarantees resistance and reliability over time.
Main specifications:
- 1.3MP 720P camera with adaptive IR LEDs for night vision
- Mifare RFID reader and 1 integrated call button
- Two-way audio with echo cancellation and noise reduction
- Fast Ethernet connection with TCP/IP and RTSP protocols
- 4 inputs and 1 alarm output with tamper function
- IP65 metal construction resistant to extreme conditions
Further details
Advanced IP technology that enables stable network connection and remote management via TCP/IP and RTSP protocols , ideal for integration into modern security systems and controllable by apps or software.
1 configurable call button that allows flexible access management , ideal for single homes or dedicated entrances.
Technical data sheet
| HYU-558 |
| Specifications |
| IP video intercom station for small apartments with 1 call button |
| Linux operating system |
| 1.3 megapixel colorful IP camera |
| Resolution 720P (1280x720) at 25 fps |
| Self-adaptive infrared LED |
| H.264 video compression format |
| Mifare proximity card reader |
| Compatible with external RS-485 readers (HYUNDAI protocol) |
| Remote unlocking via client software or mobile app (requires indoor console) |
| Supports tamper alarm and magnetic contact alarm |
| G.711u audio compression format |
| It incorporates omnidirectional microphone and speaker |
| Two-way audio with noise suppression and echo cancellation |
| Self-adaptive 10/100Mbps Ethernet |
| Network Protocols: TCP/IP and RTSP |
| 4 input / 1 alarm output |
| RS485 Half-Duplex Port |
| Metal carcass |
| IP65 protection rating |
| Operating temperature -40° ~ +60°C |
| Operating humidity 10% ~ 90% |
| Power supply: 12V DC |
| Power supply with network cable up to 40 meters (requires HYU-560) |
| Consumption: <12W |
| Dimensions: 182 x 100 x 33 mm |
