7" Touch Screen IP Monitor with Two-Way Audio, Ethernet, Alarms, MicroSD, and PonC for Video Intercom - Hyundai

7" Touch Screen IP Monitor with Two-Way Audio, Ethernet, Alarms, MicroSD, and PonC for Video Intercom - Hyundai

New

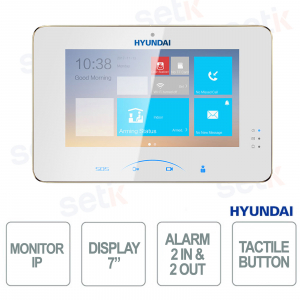

HYU-559 - The indoor IP monitor is an advanced solution for video intercom systems, designed to offer efficient control and communication thanks to the 7” capacitive touch screen with 1024x600 resolution that guarantees an intuitive and high-quality interface. It integrates two-way audio with microphone and speaker , allowing clear communications with the external station. Equipped with Fast Ethernet connection and TCP/IP and RTSP protocols , it allows remote management and integration with IP systems. It supports 2 alarm inputs and 2 alarm outputs and a panic call function , improving home security. Includes a MicroSD slot up to 32GB and support for notifications and messages , expanding functionality. Flexible power supply via 12V DC or PonC , for simple and efficient installations. Hyundai

Technical Data Sheet

Reference: HYU-559

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HYU-559 | INDOOR IP MONITOR WITH 0.3MP CAMERAS


Hyundai Security

The Hyundai HYU-559 indoor IP monitor is an advanced solution for video intercom systems, designed to offer intuitive control thanks to the 7” capacitive touchscreen with 1024x600 resolution , ideal for simple and immediate management. It integrates two-way audio with an omnidirectional microphone and speaker , ensuring clear communications with the external station. It supports Fast Ethernet connection with TCP/IP and RTSP protocols , allowing for advanced integration and remote control. It has 2 alarm inputs and 2 alarm outputs with a panic call function , improving home security. It includes a MicroSD slot up to 32GB and a notification and message system , expanding operational functionality. Flexible power supply via 12V DC or PonC allows for simple and efficient installations.

Main specifications:

- 7” 1024x600 capacitive touch screen for intuitive control

- Two-way audio with built-in microphone and speaker

- Fast Ethernet connection with TCP/IP and RTSP protocols

- 2 alarm inputs and 2 alarm outputs with panic call function

- MicroSD slot up to 32GB and notification/message management

- 12V DC or PonC power supply for flexible installation

Further details

IP Monitor:
IP monitor for video intercom that allows centralized and remote management of the access control system , integrating with the LAN network and external devices for complete control.
Touch screen:
7” capacitive color touchscreen with 1024x600 resolution designed to offer intuitive interface and smooth navigation , improving the user experience.
Capacitive touch button :
Capacitive touch button that ensures quick and precise control of the main functions , increasing the convenience of daily use.
Call function:
Integrated panic call function that allows you to send immediate emergency alerts , improving the level of home security.
Built-in microphone and speaker:
Built-in omnidirectional microphone and speaker with two-way audio ensure clear, real-time communication with the outdoor station.
Fast Ethernet Connection:
10/100Mbps Fast Ethernet connection that allows stable and fast data transmission , ideal for video streaming and integration with IP systems.
Alarm :
2 alarm inputs and 2 alarm outputs that allow advanced security management , connecting external sensors and devices for monitoring the environment.
✅ PonC Support :
PonC (Power over Network Cable) support allows power to be supplied via a network cable , simplifying installation and reducing the need for additional cabling.

Technical data sheet

HYU-559
Specifications
7" Color Capacitive Touchscreen Indoor IP Monitor
Resolution: 1024 x 600
Capacitive touch button
0.3 Mpx IP Camera
H.264 video compression
Linux operating system
Hands-free audiovisual communication between the monitor and the video intercom station
Panic call
G.711u audio compression
It incorporates an omnidirectional microphone and speaker.
Supports supervision of video intercom stations and external cameras
Remote unlocking via client software or app
Integrated high-performance SOC processor
Compatible with 8-channel alarm input sensors
Alarm messages to the master station, client software or app once the alarm sensor is triggered
Message notification function (including text messages and voice messages)
Community Notice Supported
2 alarm inputs / 2 alarm outputs
MicroSD card slot for up to 32GB (card not included)
RS485 Half-Duplex Port
Self-adaptive 10/100Mbps Ethernet
Network Protocols: TCP/IP and RTSP
Power supply 12V DC / PonC (requires HYU-560)
Operating temperature -10°C ~ +55°C
Operating humidity 10% ~ 90%
Not suitable for outdoors
Dimensions: 217 x 142 x 26 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
