Hyundai HDCVI HDTVI AHD Passive Transmitter over Twisted Pair 300m, No Power Supply, Anti-Interference
HYU-158 - The 1-channel passive transmitter is a reliable solution for video transmission over twisted pair, designed to ensure maximum compatibility with HDCVI, HDTVI and AHD technologies in video surveillance systems. It offers high performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , ensuring signal stability even over long distances. The device is extremely practical thanks to its power-free operation , facilitating quick installations without complex interventions. It integrates interference rejection greater than 60dB and transient protection with a voltage stabilizer , improving signal quality. It supports CAT5/5E/6 cables for flexible installation and adapts to different environments thanks to the operating range of -10°C to +55°C Hyundai

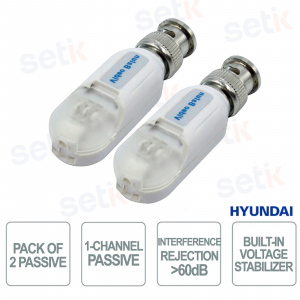

HYU-158 | PACK OF 2 1-CHANNEL PASSIVE TRANSMITTERS FOR HDCVI, HDTVI, AND AHD VIDEO FOR TWISTED PAIR
The Hyundai HYU-158 1-channel passive transmitter is a professional solution for video transmission over twisted pair, designed to ensure maximum compatibility with HDCVI, HDTVI and AHD technologies in video surveillance systems. It offers reliable performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , ensuring signal stability even over long distances. The device is extremely practical thanks to its power-free operation , facilitating quick installations without additional wiring. It integrates interference rejection >60dB and transient protection with a voltage stabilizer , improving signal quality. It supports CAT5/5E/6 cables for flexible installation and adapts to different environments thanks to the operating range of -10°C to +55°C .
Main specifications:
- Compatibility with HDCVI, HDTVI and AHD technologies
- Transmission up to 300 meters (HDCVI/HDTVI) and 200 meters (AHD)
- Power-free operation for easy installation
- Interference rejection >60dB with integrated transient protection
- CAT5/5E/6 cable support for flexible cabling
- Operating range from -10°C to +55°C for different environments
Further details
Video transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD designed to ensure signal stability and constant quality even over long distances , making it ideal for professional video surveillance systems.
Interference rejection greater than 60dB ensures clean and stable signal transmission , reducing electrical noise and improving overall system reliability.
Support for CAT5, CAT5E and CAT6 cables on twisted pair which allows for simple and flexible installation , taking advantage of existing wiring and reducing implementation times and costs.
Technical data sheet
| HYU-158 |
| Specifications |
| 1-Channel Passive HDCVI, HDTVI and AHD Transmitter for Twisted Pair |
| HDCVI Range: 300 meters (720P), 200 meters (1080P) |
| HDTVI range: 300 meters (720P), 200 meters (1080P) |
| AHD range: 200 meters (960P, 720P) |
| It does not require power supply |
| Interference rejection (>60dB) |
| Built-in voltage stabilizer and transient protection |
| CAT5/5E/6 coaxial cable |
| Operating temperature -10°C ~ +55°C |
| Dimensions: 81 x 95 x 18 mm |
