Hyundai HDCVI HDTVI AHD Passive Transmitter over Twisted Pair 300m, No Power Supply, Anti-Interference

Hyundai HDCVI HDTVI AHD Passive Transmitter over Twisted Pair 300m, No Power Supply, Anti-Interference

New

HYU-158 - The 1-channel passive transmitter is a reliable solution for video transmission over twisted pair, designed to ensure maximum compatibility with HDCVI, HDTVI and AHD technologies in video surveillance systems. It offers high performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , ensuring signal stability even over long distances. The device is extremely practical thanks to its power-free operation , facilitating quick installations without complex interventions. It integrates interference rejection greater than 60dB and transient protection with a voltage stabilizer , improving signal quality. It supports CAT5/5E/6 cables for flexible installation and adapts to different environments thanks to the operating range of -10°C to +55°C Hyundai

Technical Data Sheet

Reference: HYU-158

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

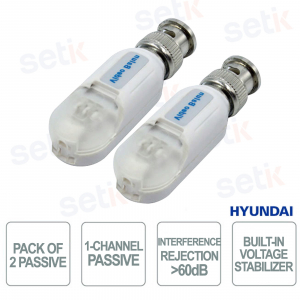

HYU-158 | PACK OF 2 1-CHANNEL PASSIVE TRANSMITTERS FOR HDCVI, HDTVI, AND AHD VIDEO FOR TWISTED PAIR


Hyundai Security

The Hyundai HYU-158 1-channel passive transmitter is a professional solution for video transmission over twisted pair, designed to ensure maximum compatibility with HDCVI, HDTVI and AHD technologies in video surveillance systems. It offers reliable performance with transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD , ensuring signal stability even over long distances. The device is extremely practical thanks to its power-free operation , facilitating quick installations without additional wiring. It integrates interference rejection >60dB and transient protection with a voltage stabilizer , improving signal quality. It supports CAT5/5E/6 cables for flexible installation and adapts to different environments thanks to the operating range of -10°C to +55°C .

Main specifications:

- Compatibility with HDCVI, HDTVI and AHD technologies

- Transmission up to 300 meters (HDCVI/HDTVI) and 200 meters (AHD)

- Power-free operation for easy installation

- Interference rejection >60dB with integrated transient protection

- CAT5/5E/6 cable support for flexible cabling

- Operating range from -10°C to +55°C for different environments

Further details

Video broadcast:
Video transmission up to 300 meters in HDCVI/HDTVI and up to 200 meters in AHD designed to ensure signal stability and constant quality even over long distances , making it ideal for professional video surveillance systems.
Compatibility:
Compatibility with HDCVI, HDTVI and AHD technologies allows for versatile integration with various security systems , facilitating upgrades and expansions without modifications to the existing infrastructure.
Interference rejection :
Interference rejection greater than 60dB ensures clean and stable signal transmission , reducing electrical noise and improving overall system reliability.
Cable support :
Support for CAT5, CAT5E and CAT6 cables on twisted pair which allows for simple and flexible installation , taking advantage of existing wiring and reducing implementation times and costs.

Technical data sheet

HYU-158
Specifications
1-Channel Passive HDCVI, HDTVI and AHD Transmitter for Twisted Pair
HDCVI Range: 300 meters (720P), 200 meters (1080P)
HDTVI range: 300 meters (720P), 200 meters (1080P)
AHD range: 200 meters (960P, 720P)
It does not require power supply
Interference rejection (>60dB)
Built-in voltage stabilizer and transient protection
CAT5/5E/6 coaxial cable
Operating temperature -10°C ~ +55°C
Dimensions: 81 x 95 x 18 mm
