143643.182.NC1 # 143643 | Ajax Superior Transmitter Fibra is a professional wired module designed to integrate third-party devices into an Ajax system via Fibra technology. It supports NC, NO, EOL, 2EOL and 3EOL connections, pulse and bistable modes, as well as dedicated functions for roller shutters and KeyArm . It provides wired communication up to 2,000 m , configuration and control via the Ajax app , anti-sabotage protection and data encryption. Its compact size, quick installation and support for over 10 event types make it ideal for upgrading existing wired systems with advanced Ajax functions. Ajax

Technical Data Sheet

Artikel-Nr.: 143643.182.NC1

Marke: Ajax Systems

EAN: 4823114079580

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Das 2011 gegründete Unternehmen Ajax System baut drahtlose Brand- und Alarmsysteme mit der drahtlosen JEWELLER Technologie, mit der Sie alle angeschlossenen Netzwerkgeräte sicher überwachen können. Ajax System bietet Lösungen für zu Hause, im Büro oder für kommerzielle Aktivitäten, die über eine App verwaltet werden können, immer auf dem neuesten Stand und kompatibel mit iOS- und Android-Systemen sind. Ajax-Alarmsysteme sind einfach zu installieren, in der Tat dauert es nur 15 Sekunden, um die Steuereinheit mit den Sensoren zu verbinden. Darüber hinaus können sie in Überwachungskameras integriert werden, haben eine Fehlermarge von nahezu Null und senden im Gefahrenfall in weniger als 150 Millisekunden eine Benachrichtigung (SMS, Push oder Call).

[short_description] =>

Ajax SystemsAjax Systems

Ajax-Alarmsysteme verwenden die neueste drahtlose Technologie, die alle Produkte zuverlässig und immer verbunden macht. Zusätzlich zu ihrer ausgezeichneten Leistung zeichnen sich Ajax-Alarmsysteme durch ihr modernes und elegantes Design aus.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2026-03-03 17:54:49 [link_rewrite] => ajax-systems [meta_title] => Feuer- und Alarmsysteme der neuesten Generation - Ajax system [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

143643.182.NC1 | WIRED MODULE FOR INTEGRATING A THIRD-PARTY DEVICE INTO THE AJAX SYSTEM


Ajax

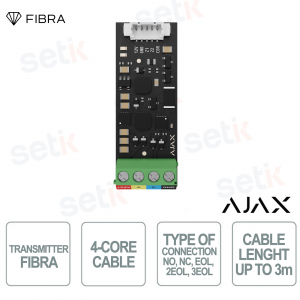

The Ajax Superior Transmitter Fibra 143643.182.NC1 is a professional wired module designed to integrate a third-party device into an Ajax system, expanding existing installations with the platform's advanced features. It supports NC, NO, EOL, 2EOL and 3EOL connections, pulse and bistable modes, roller shutter management and KeyArm function. It uses Fibra technology with wired communication up to 2,000 m , encrypted data transmission, tamper protection and configuration via the Ajax app . It also offers 2 zones , over 10 event types and a power output of up to 15 V/50 mA for the connected device.

Main specifications:

  • Technology: Wired Fiber
  • Zones: 2
  • Connections: NC, NO, EOL, 2EOL, 3EOL
  • Range: up to 2,000 m
  • Management: Ajax app
  • Security: Encryption and Anti-Sabotage
  • Events: over 10 types

Further details

✅ Fiber Communication:
It uses Ajax Fibre wired technology with two-way communication and encrypted data between the module and the hub, reaching a distance of up to 2,000 meters and enabling regular monitoring of the status of the built-in device.
✅ Connecting wired devices :
It allows you to integrate a third-party wired device into the Ajax system, offering 2 zones and supporting over 10 event types , pulse and bistable modes, roller shutters and KeyArm function.
✅ Anti-sabotage protection :
 It integrates security systems against spoofing, short circuits and sabotage attempts , with Superior Transmitter Fiber authentication and EOL support to detect alterations to the connected wired device.
✅ Power supply:
 It is powered directly from the Fiber line with a voltage of 7–30 V , while for the connected wired device it has an output of 10.5–15 V up to 50 mA , simplifying the power supply of the installation.
✅ Compatibility:
It supports NC, NO, EOL, 2EOL and 3EOL connection configurations, providing high flexibility in integrating third-party wired detectors and devices into a compatible Ajax system .

Technical data sheet

143643.182.NC1
Compatibility
Compatible hub models Superior Hub Hybrid (2G)
Superior Hub Hybrid (4G)
Communication with hub
Fiber communication technology Proprietary wired communication technology.
Fiber combines the reliability of wires with the freedom of radio connection.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage
  • Block encryption featuring a dynamic key
  • Instant notifications
  • Remote configuration in the Ajax apps
Line connection 4-core cable
Connection to any point of the Fiber line
Superior Transmitter Fibra can be installed after a hub, detector, keypad, or siren
Fiber line length up to 2,000 m / up to 6,600 ft
When using the U/UTP cat.5 twisted pair.
Encrypted communication All stored and transmitted data are protected by block encryption featuring a dynamic key.
Wired devices connection
Supported configurations
  • roller shutter
  • tamper
  • wired device with 9 types of events
Connector pins
  • 12V — power supply output for a wired detector
  • GND — ground
  • Z1–Z2 — inputs for connecting a wired detector
  • COM — common input for connecting signal contacts of a wired detector
Superior Transmitter Fibra has 2 inputs (Z1 and Z2) to connect the wired detector using the AATT (ie, Alarm Alarm Tamper Tamper) scheme.
Type of connection NO, NC, EOL, 2EOL, 3EOL
With EOL total resistance from 1 kΩ to 40 kΩ with a 100 Ω increment.
Cable length up to 3 m
When using a signal cable with a 0.22 mm² copper conductor
Operation mode pulse, bistable
Event type 9 types of events for each wired zone
  • Intrusion
  • Fire
  • Auxiliary alarm
  • Panic button
  • Gas alarm
  • Tamper alarm
  • Malfunction
  • Leakage
  • Custom
Adjusted by PRO or user with admin rights in the Ajax app.
Recommendations Superior Transmitter Fibra should be installed inside the wired detector case. The module requires a space with the following minimum dimensions: 40 × 15 × 12.2 mm (1.57″ × 0.59″ × 0.48″).
Sabotage protection
Protection against spoofing device authentication
Instant line damage detection Valid for EOL, 2EOL, or 3EOL connections
Communication loss detection after 36 s
Between the hub and Superior Transmitter Fibra It can be changed in the hub settings
Power supply
Fiber line TBC
The hub powers the module
Output to the connected wired device 10.5–15 V⎓, up to 50 mA (total maximum current consumption)
One power supply line from Superior Transmitter Fiber.
Enclosure
Dimensions 40 × 15 × 12.2 mm
1.57″ × 0.59″ × 0.48″
Weight 6 g
0.21 oz
Operating temperature range from −25 °C to +50 °C
from −13 °F to +122 °F
Operating humidity up to 75%
Electric shock protection Class II
Complete set Superior Fiber Transmitter
Accessory 5-pin cable
Quick start guide
Warranty 24 months
