HAC-HDW1500TLM-IL-A-S3 - is a 5MP HDCVI eyeball camera with 2.8mm fixed lens , designed to offer clear and detailed images with a wide viewing angle of up to 113° . Thanks to Smart Dual Light technology and Starlight mode, it guarantees excellent performance even in low light conditions, with a lighting distance of up to 30 meters . It integrates a built-in microphone for quality audio acquisition and uses advanced compression with 3D NR to reduce video noise. Compatible with CVI/TVI/AHD/CVBS standards, it offers great installation flexibility, while IP67 protection ensures water and dust resistance for reliable outdoor use. Dahua
HAC-HDW1500TLM-IL-A-S3 | 5MP HDCVI Eyeball Camera with 2.8mm Fixed Lens - Smart Dual Light

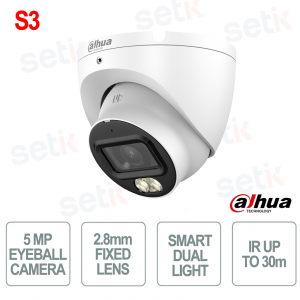

The Dahua HAC-HDW1500TLM-IL-A-S3 is a 5MP HDCVI eyeball camera with 2.8mm fixed lens , ideal for ensuring detailed images with a wide viewing angle of up to 113° . Thanks to Smart Dual Light technology and Starlight mode, it ensures advanced night vision with illumination of up to 30 meters , automatically alternating between IR light and white light. It integrates a built-in microphone for clear audio acquisition and uses 3D NR technology to reduce video noise even in low light conditions. Compatible with CVI/TVI/AHD/CVBS standards, it offers great installation flexibility and the IP67 protection guarantees resistance to dust and water for outdoor use.
Main specifications:
- 5MP Resolution: High definition images up to 2880×1620 for fine details and effective monitoring
- 2.8mm optics: wide viewing angle up to 113°, ideal for covering large areas
- Smart Dual Light: Intelligent lighting with automatic switching between IR and white light up to 30 meters
- Starlight technology: high performance in low light with clear images even at night
- Built-in microphone: quality audio capture via coaxial transmission
- 3D Noise Reduction (NR): Cleaner images with improved video quality
- IP67 protection: water and dust resistant construction for reliable outdoor installations
Further details

Technical data sheet
| MODEL | HAC-HDW1500TLM-IL-A-S3 |
| Room | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 65 dB |
| Illumination Distance | IR: 30 m (98.43 ft) Warm Light: 30 m (98.43 ft) |
| Illuminator On/Off Control | Car |
| Illuminator Number | 2 (Multi-core light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View |
H: 113.3°; V: 62.1°; D: 134.3° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto; White balance area |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Pick-up Distance | 8 m (26.25 ft) |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: EN 55032; EN 55035; |
| Audio | |
| Built-in MIC | Yes |
| Audio Camera | CVI; TVI |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 4.3 W (12 VDC, WLED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |

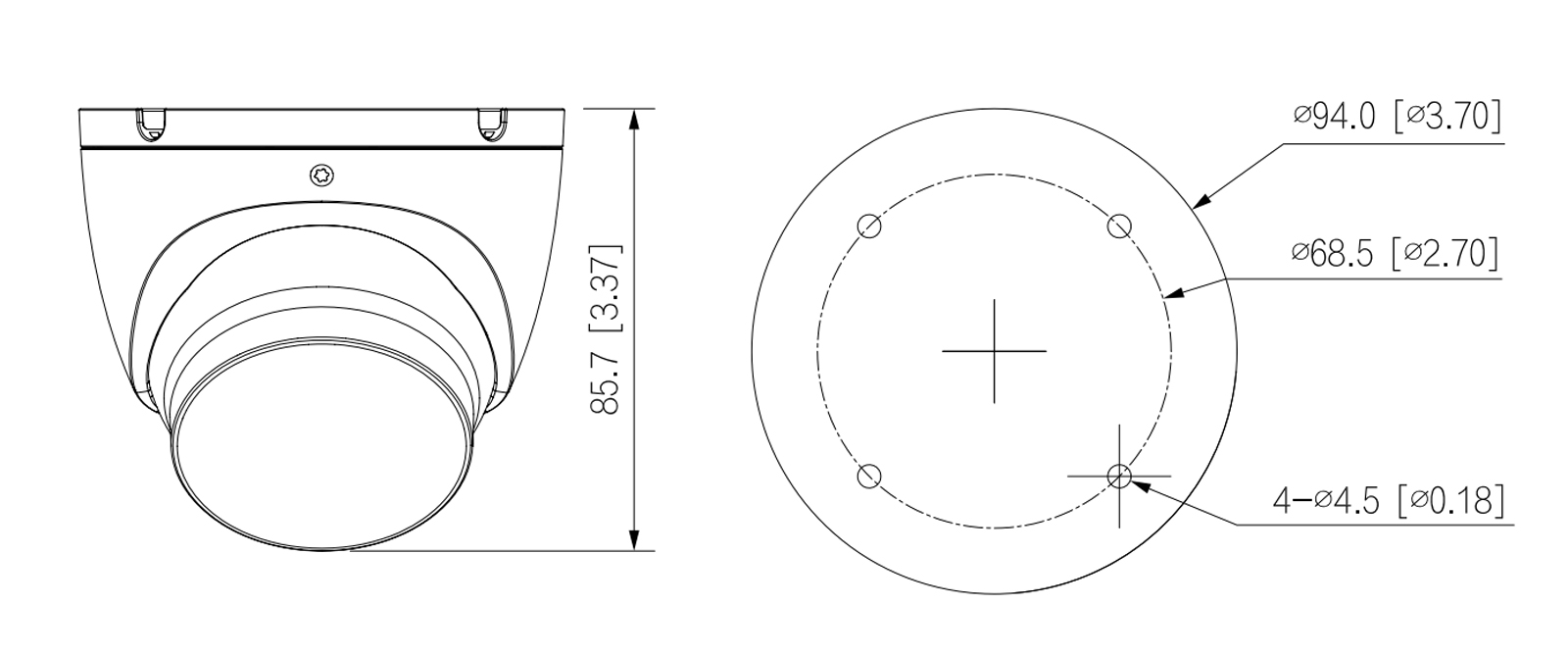

| Product Dimensions | Φ94.0 mm × 85.7 mm (Φ3.70" × 3.37") |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.42 kg (0.93 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
