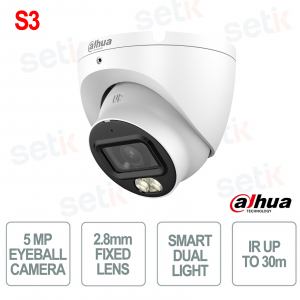

Dahua 5MP HDCVI 2.8mm Smart Dual Light IP67 Camera with Built-in Microphone and Starlight

Dahua 5MP HDCVI 2.8mm Smart Dual Light IP67 Camera with Built-in Microphone and Starlight
-56% New

HAC-HDW1500TLM-IL-A-S3 - is a 5MP HDCVI eyeball camera with 2.8mm fixed lens , designed to offer clear and detailed images with a wide viewing angle of up to 113° . Thanks to Smart Dual Light technology and Starlight mode, it guarantees excellent performance even in low light conditions, with a lighting distance of up to 30 meters . It integrates a built-in microphone for quality audio acquisition and uses advanced compression with 3D NR to reduce video noise. Compatible with CVI/TVI/AHD/CVBS standards, it offers great installation flexibility, while IP67 protection ensures water and dust resistance for reliable outdoor use. Dahua

Technical data sheet

Reference: HAC-HDW1500TLM-IL-A-S3

Brand: Dahua

EAN: 6937552413665

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HAC-HDW1500TLM-IL-A-S3 | 5MP HDCVI Eyeball Camera with 2.8mm Fixed Lens - Smart Dual Light

Dahua

The Dahua HAC-HDW1500TLM-IL-A-S3 is a 5MP HDCVI eyeball camera with 2.8mm fixed lens , ideal for ensuring detailed images with a wide viewing angle of up to 113° . Thanks to Smart Dual Light technology and Starlight mode, it ensures advanced night vision with illumination of up to 30 meters , automatically alternating between IR light and white light. It integrates a built-in microphone for clear audio acquisition and uses 3D NR technology to reduce video noise even in low light conditions. Compatible with CVI/TVI/AHD/CVBS standards, it offers great installation flexibility and the IP67 protection guarantees resistance to dust and water for outdoor use.

Main specifications:

- 5MP Resolution: High definition images up to 2880×1620 for fine details and effective monitoring

- 2.8mm optics: wide viewing angle up to 113°, ideal for covering large areas

- Smart Dual Light: Intelligent lighting with automatic switching between IR and white light up to 30 meters

- Starlight technology: high performance in low light with clear images even at night

- Built-in microphone: quality audio capture via coaxial transmission

- 3D Noise Reduction (NR): Cleaner images with improved video quality

- IP67 protection: water and dust resistant construction for reliable outdoor installations

Further details

Optics :
Equipped with a 2.8mm fixed lens , it offers a wide viewing angle of up to 113° , ideal for covering large areas with a single camera, improving the surveillance of open and indoor environments.
Resolution:
5MP CMOS sensor with resolution up to 2880×1620 , ensures sharp and detailed images, perfect for identifying subjects and monitoring with high precision.
Smart Dual Light:
Intelligent lighting system that combines IR light and white light , automatically activating the most suitable mode to obtain clear images up to 30 meters , even at night.
Microphone:
It integrates a built-in microphone with audio transmission over coaxial cable, ensuring clean and synchronized audio with the video for complete security.
Doors :
Equipped with switchable BNC video output (CVI/TVI/AHD/CVBS) and 12V DC power supply, ensuring compatibility with different systems and ease of installation.
HAC-HDW1500TLM-IL-A-S3 dimensions

Technical data sheet

MODEL HAC-HDW1500TLM-IL-A-S3
Room
Image Sensor 5MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio > 65 dB
Illumination Distance IR: 30 m (98.43 ft)
Warm Light: 30 m (98.43 ft)
Illuminator On/Off Control Car
Illuminator Number 2 (Multi-core light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm
Max. Openings F1.6
Field of View

H: 113.3°; V: 62.1°; D: 134.3°

Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
Video
Video Frame Rate CVI:
PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps
NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 5M 16:9@20 fps
NTSC: 5M 16:9@20 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR
WDR DWDR
White Balance Auto; White balance area
Gain Control Car
Noise Reduction 3D NR
Motion Detection Yes
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Pick-up Distance 8 m (26.25 ft)
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: EN 55032; EN 55035;
Audio
Built-in MIC Yes
Audio Camera CVI; TVI
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply 12 VDC (±30%)
Power Consumption Max 4.3 W (12 VDC, WLED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Strorage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67
Anti-corrosion Level Basic Protection
Structure
Casing Material Metal
Product Dimensions Φ94.0 mm × 85.7 mm (Φ3.70" × 3.37")
Net Weight 0.32 kg (0.71 lb)
Gross Weight 0.42 kg (0.93 lb)
Installation Wall mount; ceiling mount; vertical pole mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
