HAC-HDW1500TLM-IL-A-S3 - è una telecamera eyeball HDCVI da 5MP con ottica fissa 2.8mm, progettata per offrire immagini nitide e dettagliate con un ampio angolo di visione fino a 113°. Grazie alla tecnologia Smart Dual Light e alla modalità Starlight, garantisce prestazioni eccellenti anche in condizioni di scarsa illuminazione, con distanza di illuminazione fino a 30 metri. Integra un microfono incorporato per acquisizione audio di qualità e utilizza compressione avanzata con 3D NR per ridurre il rumore video. Compatibile con standard CVI/TVI/AHD/CVBS, offre grande flessibilità di installazione, mentre la protezione IP67 assicura resistenza ad acqua e polvere per utilizzo esterno affidabile. Dahua

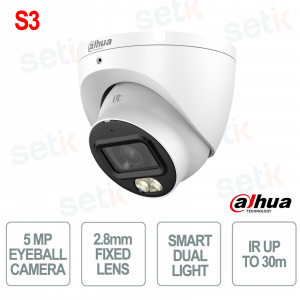

HAC-HDW1500TLM-IL-A-S3 | TELECAMERA EYEBALL HDCVI 5MP OTTICA FISSA 2.8mm - SMART DUAL LIGHT

La Dahua HAC-HDW1500TLM-IL-A-S3 è una telecamera HDCVI eyeball da 5MP con ottica fissa 2.8mm, ideale per garantire immagini dettagliate con ampio angolo di visione fino a 113°. Grazie alla tecnologia Smart Dual Light e alla modalità Starlight, assicura visione notturna avanzata con illuminazione fino a 30 metri, alternando automaticamente luce IR e luce bianca. Integra un microfono incorporato per acquisizione audio chiara e utilizza la tecnologia 3D NR per ridurre il rumore video anche in condizioni di scarsa luminosità. Compatibile con standard CVI/TVI/AHD/CVBS, offre grande flessibilità di installazione e la protezione IP67 garantisce resistenza a polvere e acqua per utilizzo esterno.
Specifiche principali:
- Risoluzione 5MP: immagini ad alta definizione fino a 2880×1620 per dettagli precisi e monitoraggio efficace
- Ottica 2.8mm: ampio angolo di visione fino a 113°, ideale per copertura di aree estese
- Smart Dual Light: illuminazione intelligente con passaggio automatico tra IR e luce bianca fino a 30 metri
- Tecnologia Starlight: elevate prestazioni in bassa luminosità con immagini nitide anche di notte
- Microfono integrato: acquisizione audio di qualità tramite trasmissione coassiale
- Riduzione rumore 3D NR: immagini più pulite con ottimizzazione della qualità video
- Protezione IP67: struttura resistente a acqua e polvere per installazioni esterne affidabili
Ulteriori dettagli

Scheda tecnica
| MODEL | HAC-HDW1500TLM-IL-A-S3 |
| Camera | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | > 65 dB |
| Illumination Distance | IR: 30 m (98.43 ft) Warm Light: 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (Multi-core light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View |
H: 113.3°; V: 62.1°; D: 134.3° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Video | |
| Video Frame Rate | CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Pick-up Distance | 8 m (26.25 ft) |
| Certification | |
| Certifications | CE-LVD: EN62368-1 CE-EMC: EN 55032; EN 55035; |
| Audio | |
| Built-in MIC | Yes |
| Camera Audio | CVI; TVI |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 4.3 W (12 VDC, WLED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Strorage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |

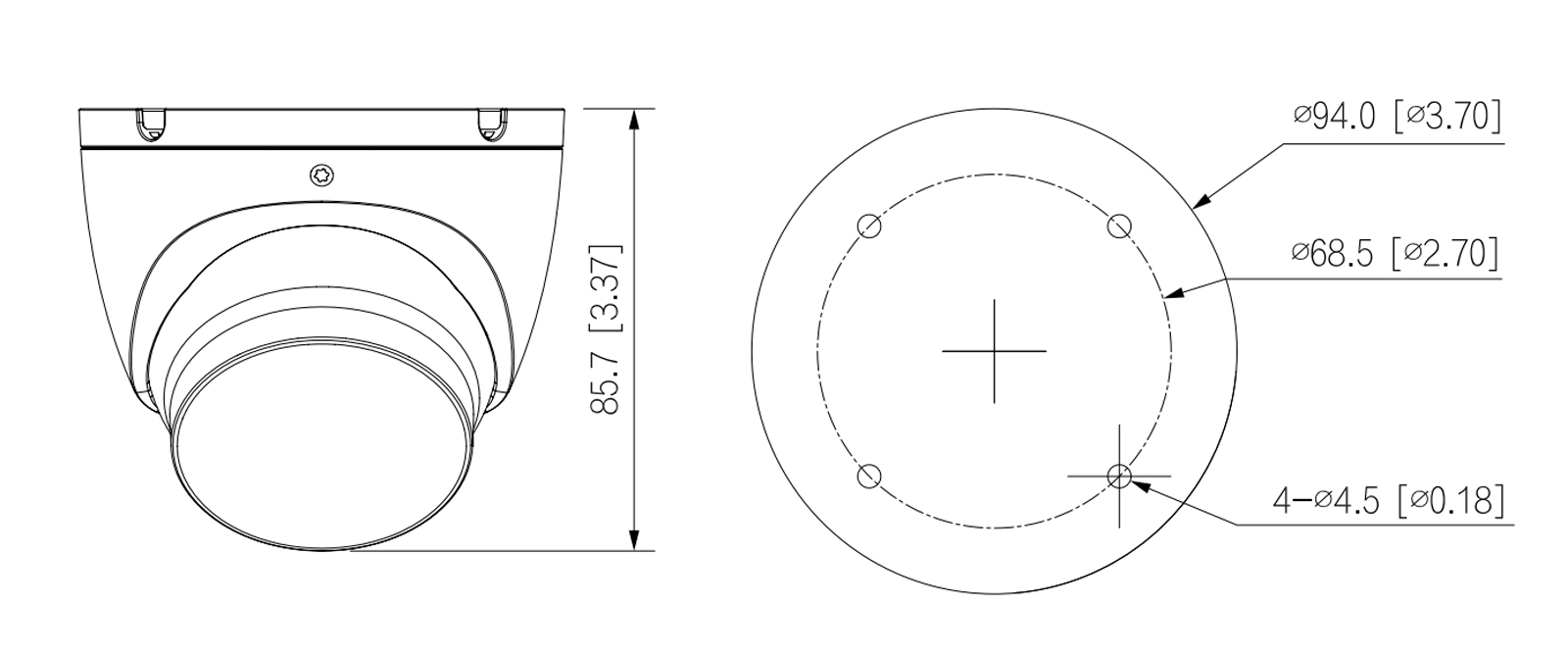

| Product Dimensions | Φ94.0 mm × 85.7 mm (Φ3.70" × 3.37") |
| Net Weight | 0.32 kg (0.71 lb) |
| Gross Weight | 0.42 kg (0.93 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
