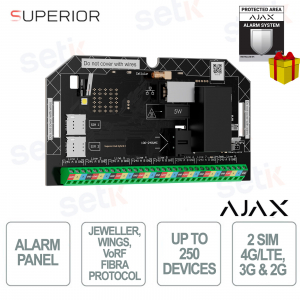

Ajax Superior Hub Hybrid 2 Without Casing con Fibra, SIM e Automazioni

Ajax Superior Hub Hybrid 2 Without Casing con Fibra, SIM e Automazioni

Nuovo

142512.369.NC #142512Ajax Superior Hub Hybrid 2 (without casing) , è una centrale ibrida ad alte prestazioni progettata per impianti di sicurezza medio-grandi, compatibile con dispositivi Jeweller e Fibra fino a 250 unità. Garantisce una comunicazione stabile grazie alla connessione Ethernet e al supporto per due SIM 2G/3G/4G, con commutazione automatica tra i canali per continuità operativa. Il protocollo Fibra assicura collegamenti cablati fino a 2.000 metri, mentre Superior Jeweller e Wings permettono la trasmissione rapida di foto, dati ed eventi. Supporta fino a 64 scenari di automazione, verifica fotografica con 8 tipologie di attivazione e integra protezioni avanzate come tamper, rilevamento interruzione linea e anti-jamming. Ideale per installazioni professionali che richiedono flessibilità, affidabilità e gestione remota completa.


 >> IN REGALO CARTELLO ADESIVO AJAX


Riferimento: 142512.369.NC

Marca: Ajax Systems

EAN: 4823114079498

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Protezione Avanzata con l’Allarme Ajax

L’allarme Ajax è la scelta perfetta per chi cerca un sistema antifurto wireless affidabile, moderno e semplice da usare. Progettato da Ajax Systems, azienda leader europea nel settore della sicurezza, questo sistema unisce tecnologia di ultima generazione a un design elegante e discreto.

Perché scegliere un antifurto Ajax?

  • Rilevatori di movimento e apertura ad alta precisione
  • Comunicazione wireless protetta (Jeweller + Wings)
  • Notifiche in tempo reale su smartphone
  • Installazione rapida e senza opere murarie
  • Integrazione con videocamere e domotica

L’Ajax antifurto è ideale sia per case che per uffici e negozi, grazie alla sua modularità e flessibilità.

Affidabilità Garantita da Ajax Systems

Con oltre 2 milioni di sistemi attivi in Europa, Ajax Systems rappresenta un punto di riferimento per la sicurezza professionale wireless.

"La sicurezza non deve essere complicata – deve essere intelligente."
– Ajax Systems

Servizio con Installatore Ajax Certificato

Oltre ai prodotti Ajax, offriamo un servizio completo con installatore Ajax in tutta Italia:

  • Scegli l'installatore Ajax più vicino a te qui
  • Invia gratuitamente la tua quotazione e attendi riscontro da parte del professionista
  • Attendi il giorno dell'appuntamento e goditi il servizio d'installazione
  • Lascia il tuo feedback sul servizio ricevuto

Richiedi Preventivo o Assistenza

Contattaci ora per un’offerta su misura o per richiedere l’intervento di un installatore Ajax antifurto nella tua zona.

[short_description] =>

Ajax Systems


Ajax Allarme wireless professionale
per la sicurezza di casa e ufficio. Affidati ad un nostro installatore Ajax certificato per un sistema antifurto smart, affidabile e facile da gestire con lo smartphone. Scopri i kit completi Ajax Systems, pronti per l’uso.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Allarmi AJAX | Sistemi di sicurezza wireless professionali | SETIK [meta_keywords] => sistemi allarme ajax, sicurezza ajax, allarmi ajax, ajax security system, ajax security, ajax system, sensori ajax, antifurto ajax [meta_description] => Scopri i sistemi di allarme AJAX: wireless, smart e facili da installare. Acquista online su SETIK a prezzi vantaggiosi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 6 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
SCEGLI PROFESSIONISTA


FUORI TUTTO ×


  FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
  Scopri la promo >>

142512.369.NC | UNITA' CENTRALE IBRIDA PER L'INSTALLAZIONE IN CASE D - COLLEGABILE TRAMITE ETHERNET E DUE SCHEDE SIM (2G/3G/LTE)


Ajax

Il Ajax Superior Hub Hybrid 2 Without Casing, 142512.369.NC, è una centrale ibrida avanzata progettata per sistemi medio-grandi, capace di gestire fino a 250 dispositivi Fibra e Jeweller grazie alla combinazione di comunicazione cablata e wireless altamente sicura. Supporta connessione Ethernet e doppia SIM 2G/3G/4G con commutazione automatica dei canali, garantendo continuità operativa anche in caso di interruzioni. Il protocollo Fibra offre comunicazione rapida fino a 2.000 metri, mentre Superior Jeweller e Wings gestiscono eventi, foto-verifica e aggiornamenti con massima affidabilità. Con 64 scenari automatici, verifica fotografica con 8 tipi di attivazione e protezioni avanzate contro sabotaggio, corto circuito e interruzione linea, il sistema assicura un livello professionale di sicurezza e controllo remoto.

Specifiche principali:

Supporto fino a 250 dispositivi wired e wireless

Connessioni: Ethernet + doppia SIM 2G/3G/4G con switch automatico

Protocollo Fibra fino a 2.000 m e comunicazione wireless fino a 3.000 m

Foto-verifica con 8 trigger: allarme, scenario, schedule, tamper, arming/disarming ecc.

64 scenari di automazione gestibili via app

Protezioni avanzate: tamper, corto circuito, anti-spoofing, rilevamento rottura linea

- Installazione rapida con QR code e scansione automatica dei dispositivi

Ulteriori dettagli

Protocollo cablato:
Utilizza il protocollo proprietario Fibra per una comunicazione cablata ultraveloce fino a 2.000 metri, senza necessità di alimentazioni aggiuntive o extender. Supporta topologie Ring, Tree e Radiale, garantendo continuità anche in caso di guasto della linea.
Sistema ibrido:
Gestisce fino a 250 dispositivi combinando sensori wired e wireless in qualsiasi configurazione, permettendo integrazione totale tra intrusion detection, fire detection e automazione.
✅ Protocolli wireless:
La parte radio utilizza Superior Jeweller per comandi ed eventi, Wings (TurboWings) per foto, firmware e pacchetti dati, e VoRF per comunicazione audio full-duplex, con portate fino a 3.000 m
✅ Supporto foto-verifica:
Compatibile con foto-verifica tramite Wings, con fino a 8 tipologie di trigger, tra cui allarme, scenario, schedule, arming/disarming, tamper o magnetometro, permettendo verifiche rapide e affidabili.
Scenari di automazione:
Gestisce fino a 64 scenari automatici attivabili da allarmi, orari, comandi, temperature, umidità, CO₂ o pulsanti Ajax, migliorando l’efficienza operativa e la sicurezza.
Resistenza al sabotaggio:
Include tamper, rilevamento corto circuito, identificazione immediata della linea Fibra interrotta, autenticazione dispositivi contro spoofing e topologia Ring che mantiene il sistema operativo anche in caso di rottura del cavo.

Scheda tecnica

142512.369.NC
Capacity Ajax devices
up to 250
Specifically:
  • up to 200 wired devices per one Fibra line;
  • up to 5 range extenders

Ajax NVRs
up to 36
Ajax cameras
up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 200

  • Any number of admin users within the hub limit.
  • PRO accounts for installers
  • PRO accounts for installation and monitoring companies
  • Access management for users

Automation scenarios
up to 64

  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch

Security groups
up to 25
Rooms
up to 50
Event log
up to 1,000 events
Events are saved on the non-volatile onboard flash memory.

Wired communication Fibra communication technology
Proprietary wired communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Line connection
4-core cable
Input
8 Fibra lines
Compatible with Fibra devices only
Fibra line length
up to 2,000 m
up to 6,550 ft
When the U/UTP cat.5 twisted pair cable is used.
Power supply of devices
up to 14.4 W
For all connected wired devices.
Output voltage range
23–25.1 V⎓
Maximum rated output
0.53 A
Maximum output peak-to-peak ripple voltage
220 mV
Topologies
  • Beam (Radial wiring)
  • Ring
  • Tree
If the line breaks, the ring splits into two working segments, the devices continue to operate, and the system notifies a monitoring company and users of the incident.
Polling interval
from 12 to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key
Wireless communication Superior Jeweller communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3.500 m
Up to 11.500 ft
Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device.
Polling interval
from 12 s to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Frequency hopping
Proprietary wireless communication technology to transmit large data packets.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Data packet reload if a transmission error occurs.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference
Radio communication range
up to 3,000 m
up to 9,800 ft
Between the hub and the devices added to it in open space. The maximum range depends on the added device
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Recommendations The device operating voltage is 110–240 V~.
It could be installed in Case D, which is sold separately.
Communication channels Ethernet
1 × 8P8C socket
Up to 100 Mbps.
Cellular
2 × micro SIM slot
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Wi-Fi
802.11 b/g/n module
Up to 600 Mbps.
Automatic switching between communication channels
  • Switching between SIMs — up to 4 minutes.
  • Switching between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
  • Switching between Ethernet, Wi-Fi, and SIM — instantly.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet.
External antenna connectors
Jeweller
Wings
4G (LTE)
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Alarm transmission system categories
SP2, SP5, DP4
Control panel operation method
pass-through
Signaling security
S2
Substitution security
Information security
I2
Encryption algorithm
AES-128-GCM
Notifications Notification types
  • Push notifications
  • SMS
  • Calls

Event types

  • Alarms
  • Video alarms
  • Malfunctions
  • Security state change
  • System events
  • Non-security alerts
  • Automation devices
  • Smart lock events
  • Doorbell ringing
Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements.
Photo verification Photo verification types
  • Photo by alarm
  • Photo by scenario
  • Photo on demand
  • Photo by schedule
  • Photo by arming/disarming
Photo delivery time
up to 9 s
By default
Photo resolution
up to 960 × 720 pixels
Depends on the detector
Number of photos in a series
from 1 to 5 pictures
Monitoring Supported protocols
  • SIA DC-09 (SIA-DCS)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols

Event types

  • System alarms and events
  • Panic button coordinates
  • Photo verification
Sabotage protection Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
Superior Hub G3 Jeweller analyzes the channel’s noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Power supply Main power supply type
Type A
Device operating AC voltage range
110–240 V, 50/60 Hz
From the main power supply. Up to 10 W of mains power consumption
Device operating DC voltage range
10.5–15 V⎓
Autonomous operation
up to 60 hours
Superior Hub Hybrid 2 with a 7 Ah backup battery can power a system of 15 wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply
Battery power saver mode allows extending the backup battery life
Low battery voltage
11.7 V⎓
Low battery recovery voltage
12.9 V⎓
End-of-life battery voltage
11 V⎓
Superior Hub G3 Jeweller is switched off.
Minimum backup battery energy level in the charged state
100%
Current consumption Maximum at nominal voltage
240 mA
Quiescent at nominal voltage
up to 102 mA
When GSM and Ethernet are enabled.
up to 61 mA
When Ethernet is disabled.
Enclosure Dimensions
185 × 99 × 43 mm
7.28″ × 3.90″ × 1.69″
Weight
184 g
6.5 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Complete set Superior Hub Hybrid 2 (without casing)
Power cable
Screw terminal block adapter (for INCERT compliance only)
Battery connection cable
LED board
LED board connection cable
Ethernet cable
Eight 120 Ω terminating resistors
Quick start guide
Warranty 24 months
