142512.369.NC | HYBRID CENTRAL UNIT FOR INSTALLATION IN CASE D - CONNECTABLE VIA ETHERNET AND TWO SIM CARDS (2G/3G/LTE)


Ajax

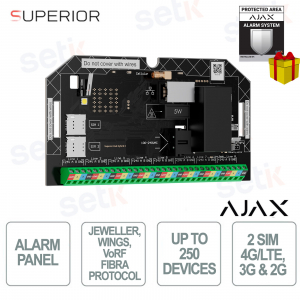

The Ajax Superior Hub Hybrid 2 Without Casing, 142512.369.NC , is an advanced hybrid control panel designed for medium to large systems, capable of managing up to 250 Fibre and Jeweller devices thanks to the combination of highly secure wired and wireless communication. It supports Ethernet and dual SIM 2G/3G/4G connections with automatic channel switching, ensuring operational continuity even in the event of interruptions. The Fibre protocol offers fast communication up to 2,000 meters, while Superior Jeweller and Wings manage events, photo verification, and updates with maximum reliability. With 64 automatic scenarios, photo verification with 8 types of activation, and advanced protection against sabotage, short circuit, and line interruption, the system ensures a professional level of security and remote control.

Main specifications:

- Support up to 250 wired and wireless devices

- Connections: Ethernet + dual SIM 2G/3G/4G with automatic switching

- Fiber protocol up to 2,000 m and wireless communication up to 3,000 m

- Photo-verification with 8 triggers: alarm, scenario, schedule, tamper, arming/disarming etc.

- 64 automation scenarios manageable via app

- Advanced protections: tamper, short circuit, anti-spoofing, line break detection

- Quick installation with QR code and automatic device scanning

Further details

✅ Wired Protocol:
It uses the proprietary Fibra protocol for ultra-fast wired communication up to 2,000 meters , without the need for additional power supplies or extenders. It supports Ring, Tree and Radial topologies, ensuring continuity even in the event of a line failure .
✅ Hybrid system :
It manages up to 250 devices combining wired and wireless sensors in any configuration, allowing total integration between intrusion detection, fire detection and automation .
✅ Wireless protocols :
 The radio part uses Superior Jeweller for commands and events, Wings (TurboWings) for photos, firmware and data packets, and VoRF for full-duplex audio communication, with ranges up to 3,000 m.
✅ Photo verification support:
Compatible with photo-verification via Wings, with up to 8 trigger types , including alarm, scenario, schedule, arming/disarming, tamper or magnetometer, allowing for quick and reliable verification .
✅ Automation scenarios:
It manages up to 64 automatic scenarios that can be activated by alarms, schedules, commands, temperatures, humidity, CO₂ or Ajax buttons, improving operational efficiency and security .
✅ Sabotage Resistance:
Includes tamper , short circuit detection, instant identification of broken fiber line, device authentication against spoofing and Ring topology that keeps the system operational even in the event of a cable break .

Technical data sheet

142512.369.NC
Capacity Ajax devices
up to 250
Specifically:
  • up to 200 wired devices per one Fiber line;
  • up to 5 range extenders

Ajax NVRs
up to 36
Ajax cameras
up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 200

  • Any number of admin users within the hub limit.
  • PRO accounts for installers
  • PRO accounts for installation and monitoring companies
  • Access management for users

Automation scenarios
up to 64

  • By alarm
  • By schedule
  • By arming/disarming
  • By temperature, humidity, CO2 concentration
  • By pressing Button
  • By touching LightSwitch

Security groups
up to 25
Rooms
up to 50
Event log
up to 1,000 events
Events are saved on the non-volatile onboard flash memory.
Wired communication Fiber communication technology
Proprietary wired communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Line connection
4-core cable
Input
8 Fiber lines
Compatible with Fiber devices only
Fiber line length
up to 2,000 m
up to 6,550 ft
When the U/UTP cat.5 twisted pair cable is used.
Power supply of devices
up to 14.4 W
For all connected wired devices.
Output voltage range
23–25.1 V⎓
Maximum rated output
0.53 A
Maximum output peak-to-peak ripple voltage
220 mV
Topologies
  • Beam (Radial wiring)
  • Ring
  • Tree
If the line breaks, the ring splits into two working segments, the devices continue to operate, and the system notifies a monitoring company and users of the incident.
Polling interval
from 12 to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key
Wireless communication Superior Jeweler communication technology
Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
Up to 3,500 m
Up to 11,500 ft
Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device.
Polling interval
from 12 s to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps
Frequency hopping
Proprietary wireless communication technology to transmit large data packets.
Key features:
  • Two-way communication.
  • Advanced sabotage protection
  • Enhanced block encryption featuring a dynamic key.
  • Data packet reload if a transmission error occurs.
  • Remote control and configuration in Ajax apps
Frequency bands
865.0 - 868.0 MHz
868.0 - 868.6 MHz
868.7-869.2 MHz
869.4 - 869.65 MHz
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and radio interference
Radio communication range
up to 3,000 m
up to 9,800 ft
Between the hub and the devices added to it in open space. The maximum range depends on the added device
Encrypted communication
All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.
Frequency hopping
To prevent radio interference and jamming.
Recommendations The device operating voltage is 110–240 V~.
It could be installed in Case D, which is sold separately.
Communication channels Ethernet
1 × 8P8C socket
Up to 100 Mbps.
Cellular
2 × micro SIM slot
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Wi-Fi
802.11 b/g/n module
Up to 600 Mbps.
Automatic switching between communication channels
  • Switching between SIMs — up to 4 minutes.
  • Switching between 4G (LTE), 3G, and 2G networks of one SIM — instantly.
  • Switching between Ethernet, Wi-Fi, and SIM — instantly.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system's reliability. Most of the data is transmitted via Ethernet.
External antenna connectors
Jeweler
Wings
4G (LTE)
The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately.
Alarm transmission system categories
SP2, SP5, DP4
Control panel operation method
pass-through
Signaling security
S2
Substitution security
Information security
I2
Encryption algorithm
AES-128-GCM
Notifications Notification types
  • Push notifications
  • SMS
  • Calls

Event types

  • Alarms
  • Video alarms
  • Malfunctions
  • Security state change
  • System events
  • Non-security alerts
  • Automation devices
  • Smart lock events
  • Doorbell ringing
Notification types are configured individually for each user. Notifications can be customized for A–F schemes according to EN 50131 requirements.
Photo verification Photo verification types
  • Photo by alarm
  • Photo by scenario
  • Photo on demand
  • Photo by schedule
  • Photo by arming/disarming
Photo delivery time
up to 9 s
By default
Photo resolution
up to 960 × 720 pixels
Depends on the detector
Number of photos in a series
from 1 to 5 pictures
Monitoring Supported protocols
  • SIA DC-09 (SIA-DCS)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols

Event types

  • System alarms and events
  • Panic button coordinates
  • Photo verification
Sabotage protection Tamper alarm
The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The hub sends notifications to all users and the security company of jamming or losing connection with the devices.
Jamming alert
Superior Hub G3 Jeweler analyzes the channel's noise level and the quality of communication with added devices and sends an alert in 30 seconds.
Power supply Main power supply type
Type A
Device operating AC voltage range
110–240 V, 50/60 Hz
From the main power supply. Up to 10W of mains power consumption
Device operating DC voltage range
10.5–15 V⎓
Autonomous operation
up to 60 hours
Superior Hub Hybrid 2 with a 7 Ah backup battery can power a system of 15 wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply
Battery power saver mode allows extending the backup battery life
Low battery voltage
11.7 V⎓
Low battery recovery voltage
12.9 V⎓
End-of-life battery voltage
11 V⎓
Superior Hub G3 Jeweler is switched off.
Minimum backup battery energy level in the charged state
100%
Current consumption Maximum at nominal voltage
240 mA
Quiescent at nominal voltage
up to 102 mA
When GSM and Ethernet are enabled.
up to 61 mA
When Ethernet is disabled.
Enclosure Dimensions
185 × 99 × 43 mm
7.28″ × 3.90″ × 1.69″
Weight
184 g
6.5 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75%
Complete set Superior Hub Hybrid 2 (without casing)
Power cable
Screw terminal block adapter (for INCERT compliance only)
Battery connection cable
LED board
LED board connection cable
Ethernet cable
Eight 120 Ω terminating resistors
Quick start guide
Warranty 24 months
