Dahua Kit Videocitofono IP Villa Montaggio a Superficie Postazione interna e Videocitofono e Switch PoE
KTP01L(S) Dahua Kit Montaggio a superficie Videocitofonia: Composto da VTH2421FW-P (Postazione Interna IP Dahua Monitor 7 Pollici), VTO2201F-P (Videocitofono Esterno IP), PFS3006-4ET-36 (Switch Fast Ethernet Dahua 6 Porte con 4 porte PoE e 2 Uplink ), VTM115 (Scatola per Montaggio a superficie). Dahua Security KTP01L(S)
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

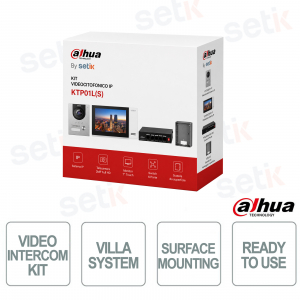

KIT DI SORVEGLIANZA VIDEOCITOFONIA IP DAHUA VILLA - COMPLETO - DHI-KTP01L(S) - MONTAGGIO A SUPERFICIE

|
COSA INCLUDE QUESTO KIT? |
Dettagli prodotto
|
|
1x Postazione esterna - VTO2201F-P > Videocitofono IP SIP Dahua adatta per uso esterno |
![]() |
1x Postazione da interno Dahua - VTH2421FW-P |
![]() |
1x Switch PoE Dahua - PFS3006-4ET-36 |
![]() |
1x Scatola per montaggio su Superficie - VTM115 |
Scheda tecnica
| Model | VTH2421FW-P | |
| System | Main Processor | Embedded Micro Processor |
| Operation System | Embedded LINUX OS | |
| Video | Compression | H.264 |
| Audio | Audio Compression | G.711 |
| Audio Input | All-direction Microphone | |
| Audio Output | Built-in Loudspeaker | |
| Bidirectional Talk | Support Dual-way Bidirectional talk | |
| Display | LCD Screen | 7“ 1024x600, Capacitive |
| Operation Mode | Input |
Touch screen |
| Interface | Alarm input | 6 |
| Alarm output | 1 | |
| Network | Ethernet | 10M/100Mbps Self-adaptive |
| network protocol | TCP/IP | |
| General | Installation | Surface & Desktop |
| Power | DC 12V | |
| Power Consumption | Standby ≤1W, Work ≤7W | |
| Working Temperature | ﹣10°C~+55°C | |
| Relative Humidity | 10%~90%RH | |
| Dimensions | 119.6mm×221.5mm×21.5mm | |
| Weight | 0.35Kg | |
| Model | PFS3006-4ET-36 |
| Hardware | |
| Data Transmission Port | 4 PoE ports with 10/100 Mbps Base-TX 2 Uplink ports with 10/100Mbps Base-TX |
| Power Supply | AC100–AC240V |
| Operating Temperature | -10°C to +55°C (-14°F–131°F) |
| Operating Humidity | 10%–90% |
| Power Consumption | Idling: 0.5W Full load: 36W |
| PoE | |
| PoE Budget | Port1-4 ≤30W, whole PoE budget ≤36W |
| PoE Standard | IEEE802.3af, IEEE802.3at |
| PoE Pin Assignment | PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-) |
| Performance | |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| MAC Table Size |
2K |
| Jumbo Frame |
2048 byte |
| Communication Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3X |
| Performance | |
| ESD |
Air discharge: 8kV |
| Thunderproof | Common mode: 6kV Differential mode: 4kV |
| Net Weight | 0.56 kg (1.23 lb) |
| Gross Weight | 1.11 kg (2.15 lb) |
| Product Dimensions (W × L × H) |
194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") |
| Packaging Dimensions (W × L × H) | Packing box: 303 mm × 262 mm × 72 mm (11.92" ×10.31" × 2.83") Protective box: 549 mm × 325 mm × 397 mm (21.61" ×12.80" × 15.63") |
| Package | 10 devices in one package |
| Certifications | CE: EN60950; FCC |
