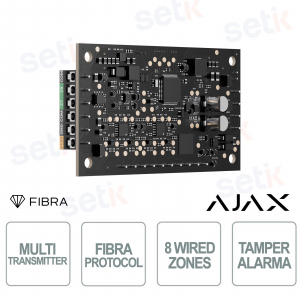

173655.389.NC | WIRED MODULE FOR INTEGRATING UP TO 8 THIRD-PARTY DEVICES INTO THE AJAX SYSTEM

Ajax

Ajax Superior MultiTransmitter (8 inputs) Fibra is a wired 8-input module designed to integrate third-party devices into Ajax security systems, ideal for retrofitting and expanding existing installations . It supports NC, NO, EOL, 2EOL and 3EOL connections, pulse and bistable modes, KeyArm Zone and roller shutter control. Fibra technology ensures encrypted communication with the hub up to 2,000 m , regular polling and automatic firmware updates. Powered directly from the Fibra line, it offers a 12 V output up to 500 mA and integrates protections against sabotage, spoofing, short circuits and cable breaks. Configuration via the Ajax app allows remote management, notifications and scenario-based automation, with EN 50131 Grade 3 compliance.

Main specifications:

  • Inputs: 8 for third-party devices
  • Connections: NC, NO, EOL, 2EOL, 3EOL
  • Fiber: range up to 2,000 m
  • Wired devices: connection up to 400 m
  • Power supply: direct from the fiber line
  • Output: 12 V up to 500 mA
  • Protection: Anti-sabotage and anti-spoofing
  • Management: Ajax apps and scenarios
  • Standard: EN 50131 Grade 3

Further details

✅ Fiber Connection :
Fiber wired technology ensures stable and secure communication between MultiTransmitter and Ajax hubs up to 2,000 meters , with data encryption , regular polling of module status and automatic firmware updates , using a single line for communication and power.
✅ Connecting wired devices :
It has 8 inputs for integrating third-party devices and supports NC, NO, EOL, 2EOL and 3EOL connections, pulse and bistable modes, KeyArm Zone and roller shutter; the distance between the module and the connected device can reach 400 meters with the wiring specified by the manufacturer.
✅ Sabotage Resistance:
It integrates anti-spoofing authentication , instant detection of short circuits and cable breaks , communication loss monitoring within 36 seconds , and support for tamper alarms from connected third-party devices; there is also a connector for the tamper board of a compatible Ajax Case .
✅ Power supply :
The module is powered directly from the fiber line , without the need for an external power supply or dedicated backup battery, and provides a 12 V output up to 500 mA to power connected third-party wired devices.

Technical data sheet

142171.367.NC
Communication Fiber data transfer protocol
Proprietary wired protocol for transmitting commands, alarms, and other events.
Key features:
  • Two-way communication
  • Advanced sabotage protection
  • Instant notifications
  • Remote control and configuration in Ajax apps
Line connection
4-core cable
Connection
to any point on the Fiber line
Fiber line length
up to 2,000 m
up to 6,550 ft
When a U/UTP cat.5 twisted-pair cable is used.
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key.
Wired device connection Number of zones
8 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Cable length
up to 400 m
up to 1,300 ft
For the EOL connection type, with a U/UTP cat.5 4×2×0.51 mm (24 AWG) cable with a copper conductor, or a 4×0.22 mm2 signal cable with a copper conductor (cable resistance of 22 Ω per 100 m) if the device is powered by an external power supply. he maximum connection length for devices powered by the integration module depends on cable resistance and the sensor current consumption.
Type of connection
NC, NO, EOL, 2EOL, 3EOL, or roller shutter
With EOL resistance from 1 kΩ to 30 kΩ in increments of 100 Ω.
EOL resistor scanning
Allows automatic measurement of EOL resistance.
Operating mode of connected sensors
  • Detect alarms — allows receiving alarms from connected third-party devices that detect doors being opened, vibration, glass breakage, gas and water leakage, etc.
  • Switch arming modes (KeyArm) — allows arming/disarming the system and individual groups or setting up Night mode.
  • Control of blocking element — allows controlling the position of the blocking element pin.
  • Control of bolt lock — allows controlling the position of the lock bolt switch.
Operating mode
pulse, bistable
Event types
configurable event types for wired device alarms
Adjusted by a PRO or a user with admin rights in an Ajax app
Recommendations The device is powered by 100–240 V~ mains and designed for indoor use only.
It can be installed in Case D, which is sold separately.
Sabotage protection Tamper alarm
The board has a connector for a tamper board. The tamper board detects when the casing lid is opened and alerts users if someone attempts to detach the casing with the installed integration module from the surface.
Protection against spoofing
Ensures integration module authentication when it communicates with a hub.
Protection against spoofing
Ensures device authentication when it communicates with a hub.
if there is no signal for 36 seconds or more
Detection time depends on the Jeweler or Jeweller/Fibra settings.
Instant detection of wired connection loss, short circuits, and faults
when the 2EOL/3EOL connection is used
Depends on the connection type
Instant detection of short circuits at power outputs
After detection, the system stops supplying power and sends a notification to the user.
Power supply Fiber line
12−28 V⎓, up to 330 mA at a nominal voltage of 24 V⎓
Power supply of connected wired devices
11.5–12.5 V⎓, up to 500 mA at a nominal voltage of 12 V⎓
Maximum total current consumption by third-party devices at a nominal voltage of 12 V⎓ should not exceed 500 mA.
Power terminals for input devices
  • +12V — power output for third-party wired devices
  • GND — ground terminal that connects the power supply circuits of wired devices
The module has one power supply line with two pairs of terminals for more convenient connection.
Board Dimensions dimensions
90 × 50 × 22 mm
3.54″ × 1.97″ × 0.87″
Weight
37 g
1.31 oz
Operating temperature range
from −10 °C to +40 °C
from 14 °F to 104 °F
Operating humidity
up to 75% non-condensing
Complete set Ajax Superior MultiTransmitter (8 inputs) Fiber
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
