HIKVISION | BANDA-K

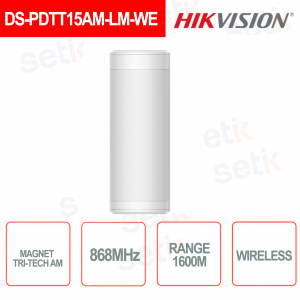

DS-PDTT15AM-LM-WE Hikvision Banda-K Rilevatore Senza Fili Tripla Tecnologia AM 2PIR+MW Wireless, portata fino a 15M, Anti-mascheramento, Pet Immune fino a 4KG, Indicatore led, Supporto per l'elaborazione digitale, Protezione antimanomissione anteriore e posteriore, Indicatore della temperatura dell'ambiente, Indicatore di forza del segnale, IP65.
DAI UN'OCCHIATA ALLA VERSIONE FILARE!
>> DS-PDTT15AM-LM <<
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
DS-PDTT15AM-LM-WE - HIKVISION RILEVATORE TRI-TECH AM WIRELESS ANTIMASCHERAMENTO PET IMMUNE 40KG

BANDA-K | PROTEZIONE MASSIMIZZATA
Il DS-PDTT15AM-LM-WE è uno dei nuovi sensori a banda-k di Hikvision. Questo rilevatore wifi senza fili da esterno tri-tech Tripla tecnologia 2PIR + MW con antimascheramento, è dotato di microonda K-Band da 24GHz, copertura fino a 15m e immunità agli animali domestici fino a 40KG.
|
¿Quiere saber más? Lea el artículo en nuestro blog. |
|
- Rilevatore passivo infrarosso wireless wifi senza fili Documentazione: Depliant |
| DS-PDTT15AM-LM-WE | |
| Detection Performance | |
| Detection Method | Passive Infrared,Microwave |

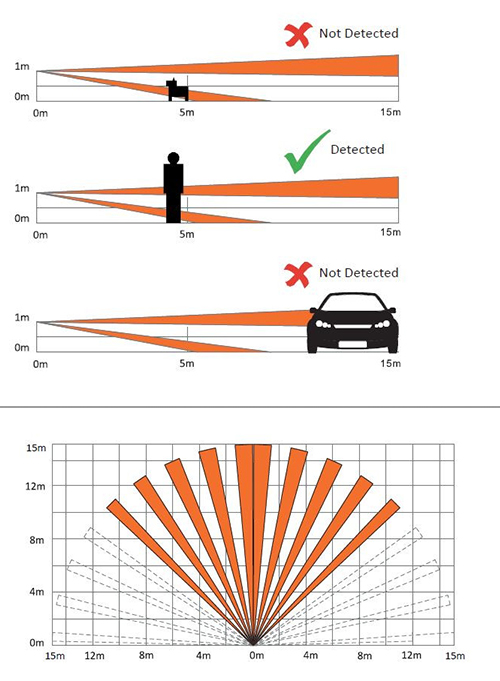

| Detection Range | 15m |
| Detection Angle | 90° @ 180° adjustable |
| Detection Zones | 92 |
| Detectable Speed | 0.3~2m/s |
| Sensitivity | Auto,Low |
| White Light Filter | 10000lux |
| Microwave Frequency | 24GHz(24.15~24.25GHz) |
| Pet Immunity | 40Kg |
| Digital Temperature Compensation | Support |
| Anti-masking | Support |
| Adaptable Coverage | Support Pattern mask included |
| Feature | |
| Digital Processing | Tri-Signal Logic |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Anti-Sway Analytics | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,Remote ID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in work status (Standalone:being triggered 20 times per day) (With camera integrated:being triggered and completely uploading captures once per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 5 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 75mm × 202mm × 73mm |
| Weight | 600g |
| Mounting Height | 0.8 to 1.2m |
| Mounting Method | Wall |
| Application Scenario | Outdoor |
