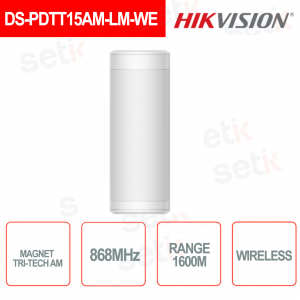

DS-PDTT15AM-LM-WE - HIKVISION TRI-TECH AM WIRELESS ANTIMASKING PET IMMUNE DETECTOR 40KG

K-BAND | MAXIMIZED PROTECTION
The DS-PDTT15AM-LM-WE is one of Hikvision's new k-band sensors. This tri-tech triple technology 2PIR + MW outdoor wireless wifi detector with anti-masking is equipped with a 24GHz K-Band microwave, coverage up to 15m and immunity to pets up to 40KG.
Curious to learn more about the topic? Read the article on our blog! |
- Wireless wifi infrared passive detector Documentation: Brochures |
| DS-PDTT15AM-LM-WE | |
| Detection Performance | |
| Detection Method | Passive Infrared,Microwave |
| Detection Range | 15m |
| Detection Angle | 90° @ 180° adjustable |
| Detection Zones | ninety two |
| Detectable Speed | 0.3~2m/s |
| Sensitivity | Auto,Low |
| White Light Filter | 10000lux |
| Microwave Frequency | 24GHz(24.15~24.25GHz) |
| Pet Immunity | 40Kg |
| Digital Temperature Compensation | Support |
| Anti-masking | Support |
| Adaptable Coverage | Support Pattern mask included |
| Features | |
| Digital Processing | Tri-Signal Logic |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Anti-Sway Analytics | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Green(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, Remote ID, QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in work status (Standalone:being triggered 20 times per day) (With camera integrated:being triggered and completely uploading captures once per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A ×5 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperatures | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 75mm × 202mm × 73mm |
| Weight | 600g |
| Mounting Height | 0.8 to 1.2m |
| Mounting Method | Wall |
| Application Scenario | Outdoors |
