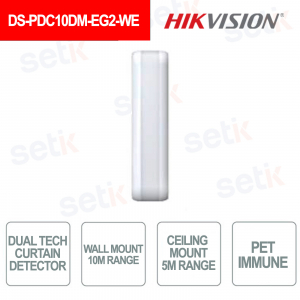

DS-PDC10DM-EG2-WE Hkvision K- Band AM Curtain Detector Dual Wireless Technology, Frequency Hopping Against Jamming for Reliable Transmission, Directional Sensing Support, Active IR Anti-Masking, Pet Immune Technology ( Wall Mount Only ) up to 12Kg, Possibility of wall and ceiling installation, Anti-tamper protection. Degree of protection IP65
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
Description Product Details Data Sheet Further Details Download
DS-PDC10DM-EG2-WE | K-BAND AM CURTAIN DETECTOR DUAL WIRELESS TECHNOLOGY - 868MHZ / 1600M - WALL-MOUNTED RANGE 10M - CEILING 5M

K-BAND | MAXIMIZED PROTECTION
The DS-PDC10DM-EG2-WE is one of the new k-band sensors from Hikvision. This dual-tech dual technology PIR + MW indoor detector is equipped with a 24GHz K-Band microwave, coverage up to 10m.
|
Curious to learn more? Read the article on our blog! |
|
- Detection range: Wall 10 meters / ceiling 5 meters Documentation: Brochure |
Data sheet
| DS-PDC10AM-EG2-WE | |
| Detection Performance | |
| Detection method | Passive Infrared |
| Detection Range | Wall Mount : 10m Ceiling Mount : 5m |
| Detection Angle | 5th |
| Detection Zones | 32 |
| Detectable Speed | 0.3 to 2m / s |
| Sensitivity | Car, Pet |
| White Light Filter | 6500lux |
| Pet Immunity | Wall Mount : 12Kg Ceiling Mount : None |
| Microwave Frequency | 24GHz (24.15 to 24.25GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Anti-masking | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Green (PIR), Red (Microwave), Green + Orange (Mask), Blue (Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range (Free Space) | 1.6Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, Remote ID, QR Code |
| Electrical Characteristics | |
| Standard Battery Life | 5 years in work status (being triggered 20 times per day) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 ° C to 55 ° C (14 ° F to 131 ° F) |
| Storage Temperature | 20 ° C to 60 ° C (-4 ° F to 140 ° F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension (WxHxD) | 29.2mm × 134.4mm × 39.5mm |
| Weight | 120g |
| Mounting Height | 2 to 3.5m |
| Mounting Method | Wall, Ceiling |
| Application Scenario | Indoor, Outdoor |
